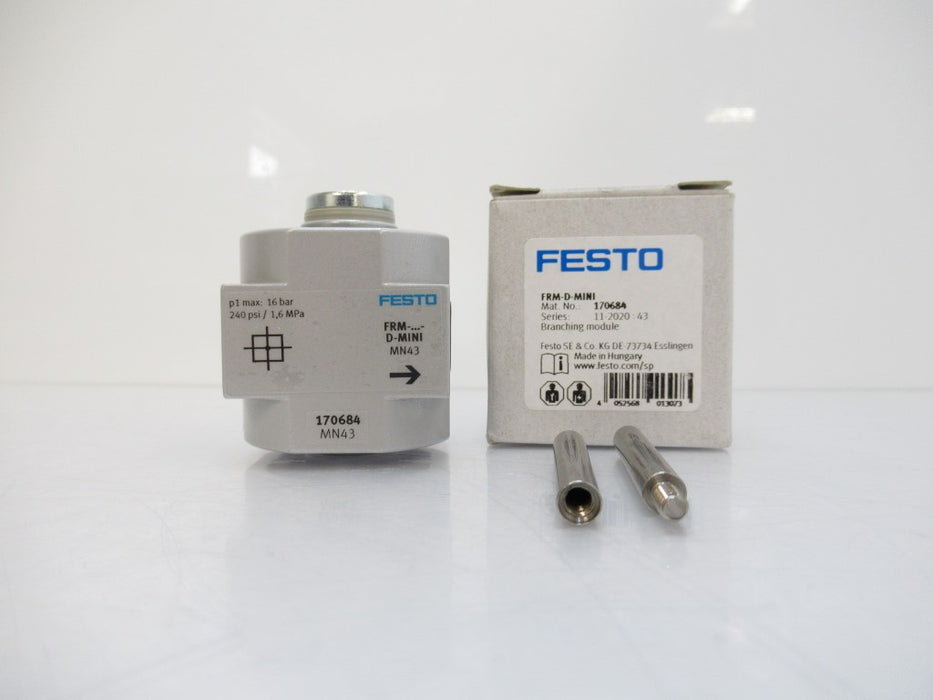

170684 FRM-D-MINI Festo Branching Module

by Festo
Sold out
$43.21 USD
FACTORY SUPPLY BRAND NEW
SKU VAL-0132-E
UPC: 170684
Only 0 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

170684 FRM-D-MINI FRMDMINI

Festo

Branching Module

Pneumatic Manifold With 4 Connections, Attachment Facility For Auxiliary Modules, Without Threaded Connection Plates With FRB Threaded Pin.

(New In Box)

Data Sheet

Assembly Position: Any

  • Design Structure: Branching Module
  • Operating Pressure: 0 ... 16 bar
  • Standard Nominal Flow Rate In Main Flow Direction 1->2: 3,300 L/Min
  • Maritime Classification: See Certificate
  • Operating Medium: Compressed Air In Accordance With ISO8573-1:2010 [7:-:-] Inert Gases
  • Corrosion Resistance Classification CRC: 2 - Moderate Corrosion Stress
  • Storage Temperature: -10 ... 60 °C
  • Air Purity Class At Output: Compressed Air In Accordance With ISO8573-1:2010 [7:-:-] Inert Gases
  • Medium Temperature: -10 ... 60 °C
  • Ambient Temperature: -10 ... 60 °C
  • Product Weight: 127 G
  • Pneumatic Connection, Port 3: G1/4
  • Pneumatic Connection, Port 4: G1/4
  • Materials Note: Free Of Copper And PTFE, Conforms To RoHS
  • Material Housing: Zinc Die-Casting
