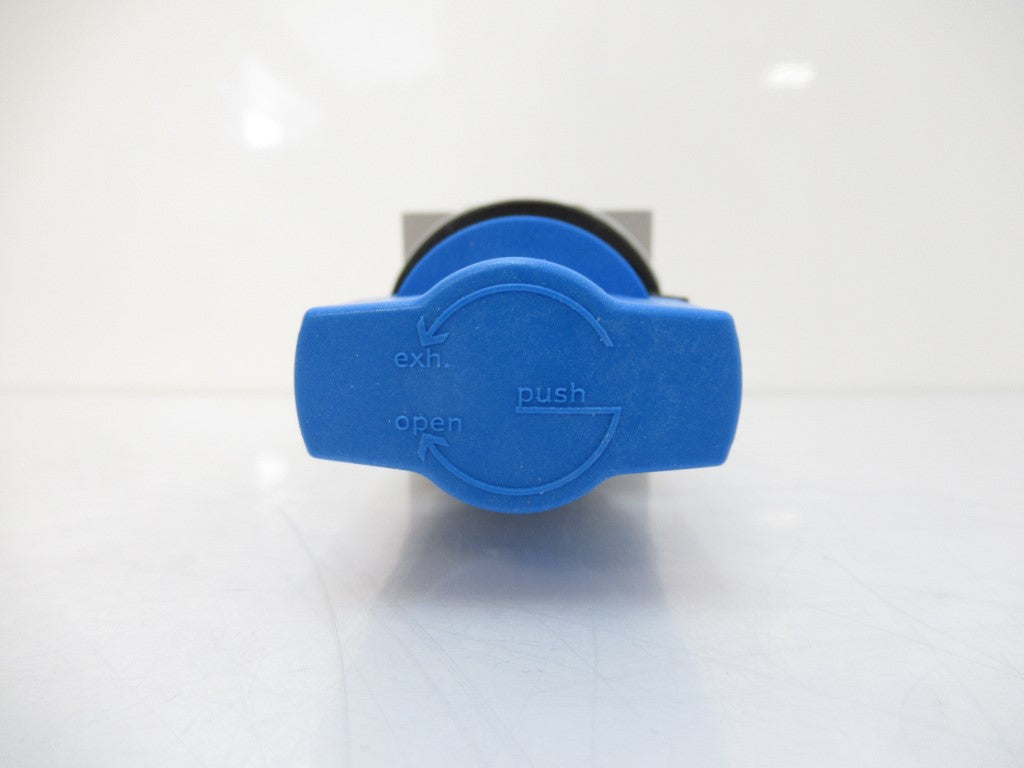

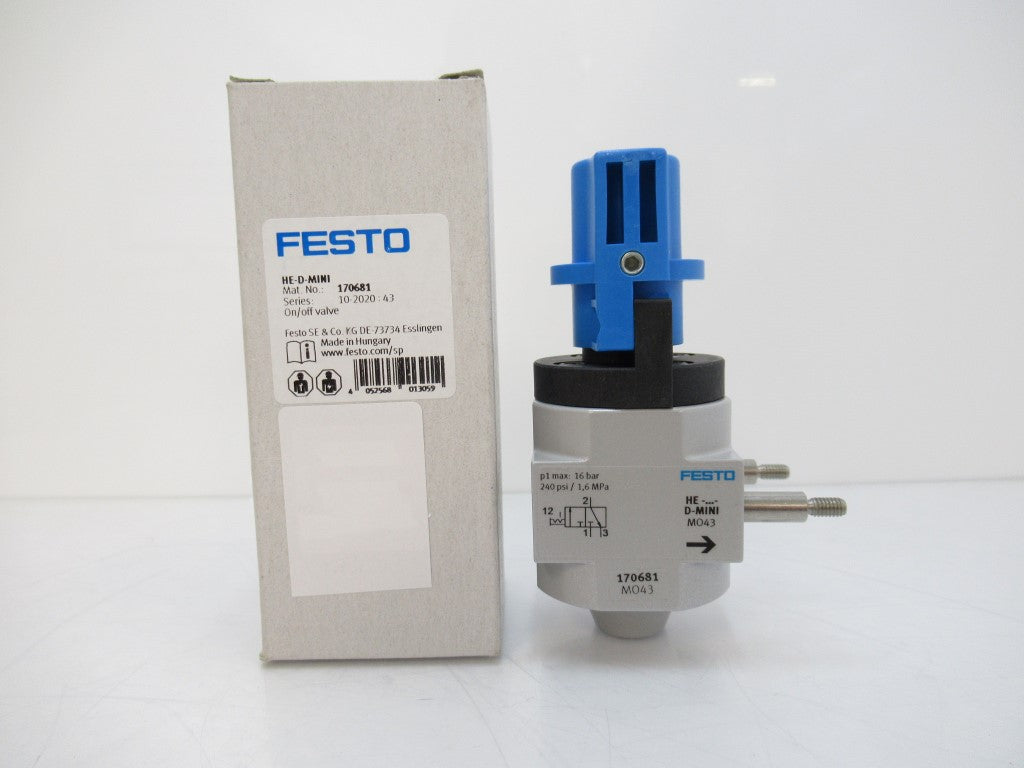

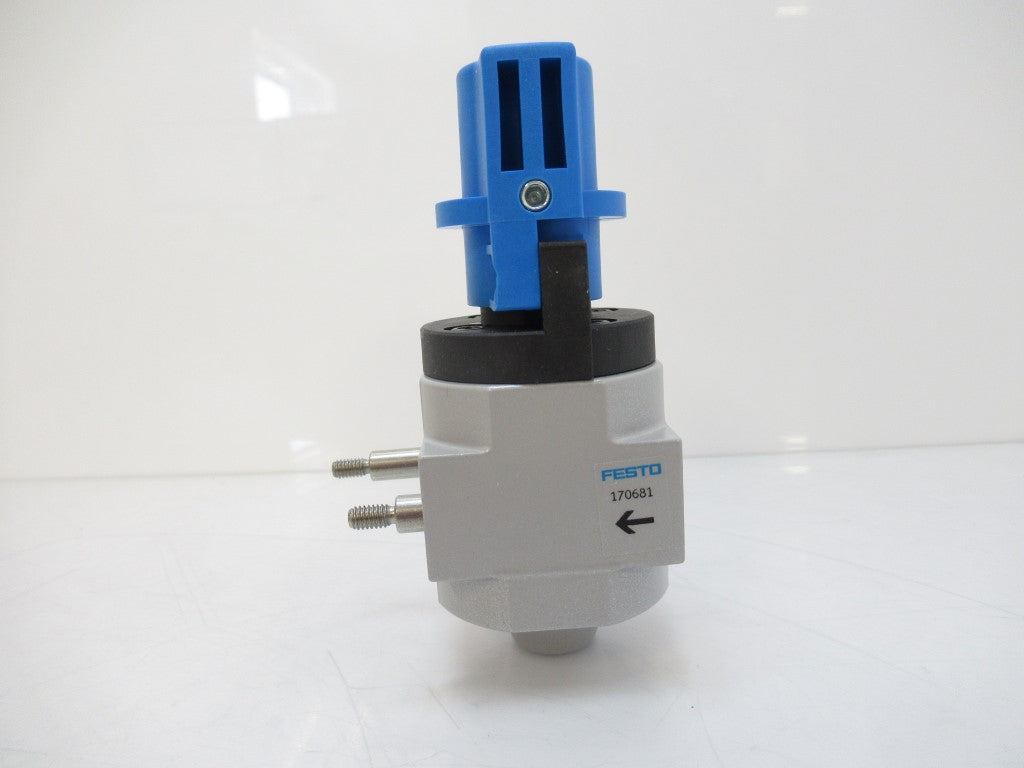

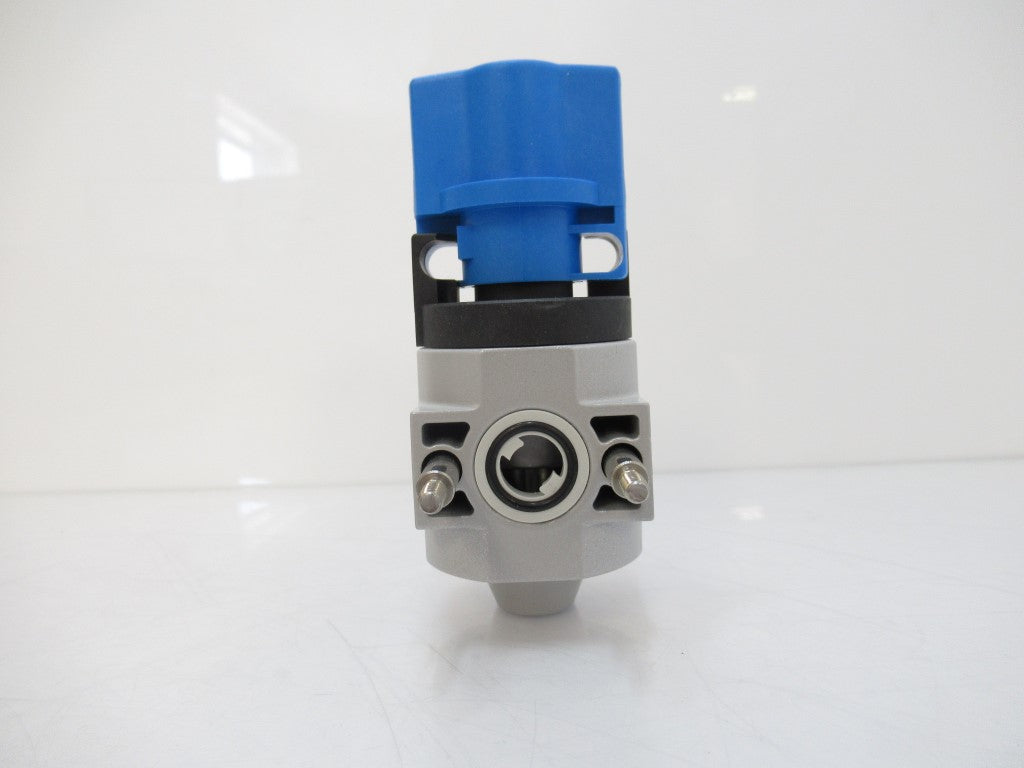

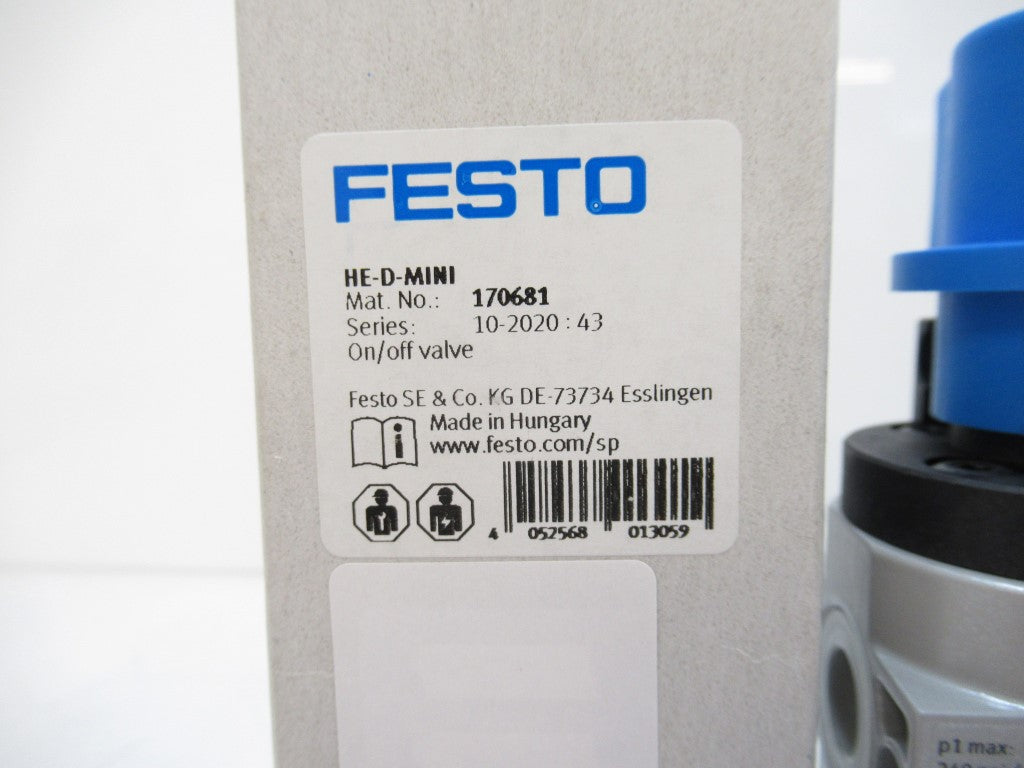

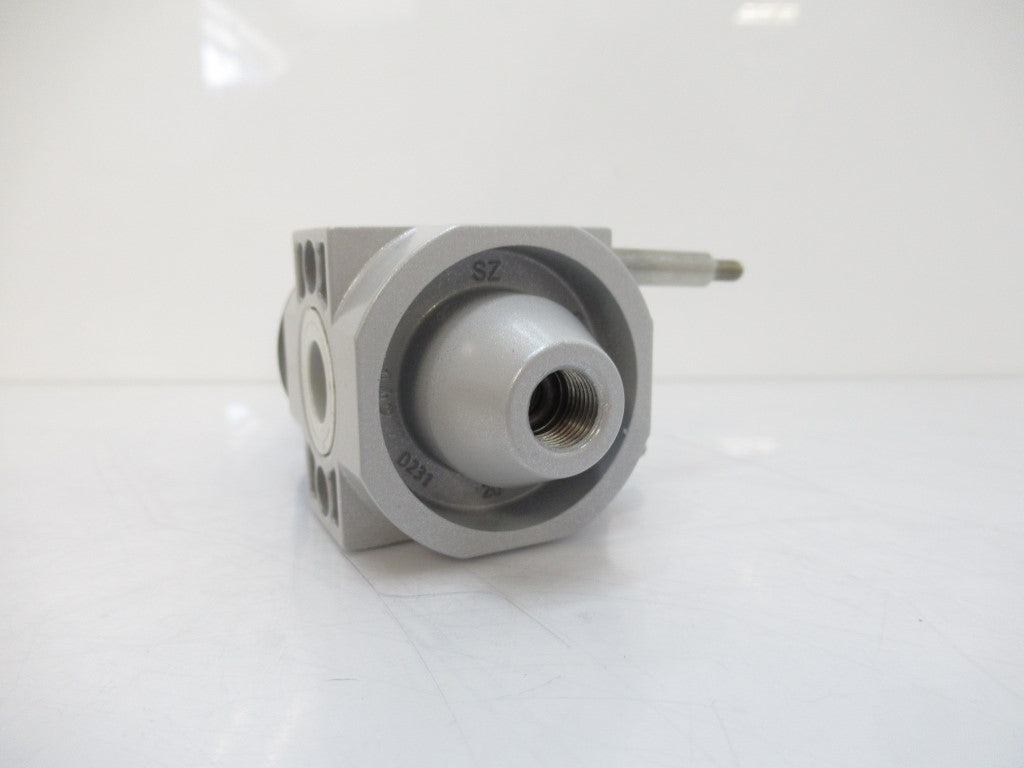

170681 Festo On/Off Valve HE-D-MINI

by Festo
$75.33 USD
FACTORY SUPPLY BRAND NEW
SKU VAL-0131-E
UPC: HE-D-MINI
Only 1000 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

170681 HE-D-MINI HEDMINI

Festo

On/Off Valve

(New In Box)

For Service Units, Without Threaded Connection Plates With FRB Threaded Pin.

Data Sheet

  • Design Structure: Piston Slide
  • Type Of Actuation: Manual
  • Sealing Principle: Soft
  • Exhaust-air Function: Not Throttleable
  • Manual Override: None
  • Valve Function: 3/2 Bistable
  • Operating Pressure: 0 ... 16 bar
  • Operating Medium: Compressed Air In Accordance With ISO8573-1:2010 [7:4:4] Inert Gases
  • Note On Operating And Pilot Medium: Lubricated Operation Possible (Subsequently Required For Further Operation)
  • Corrosion Resistance Classification CRC: 2 - Moderate Corrosion Stress
  • Materials Note: Conforms To RoHS
  • Medium Temperature: -10 ... 60 °C
  • Ambient Temperature: -10 ... 60 °C
  • Maritime Classification: See Certificate
  • Mounting Type: Line Installation With Accessories
  • Assembly Position: Any
  • Flow Direction: Non Reversible
  • Product Weight: 192 G
  • Pneumatic Connection, Port 3: G1/8
  • Air Purity Class At Output: Compressed Air In Accordance With ISO8573-1:2010 [7:4:4] Inert Gases
  • Material Seals: NBR
  • Material Housing: Aluminium Die Cast
