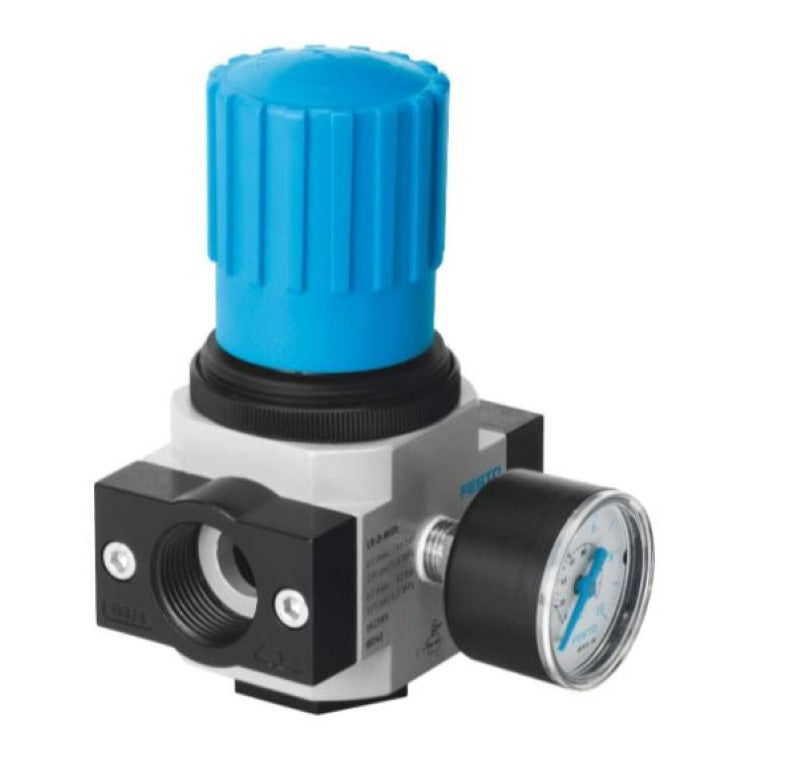

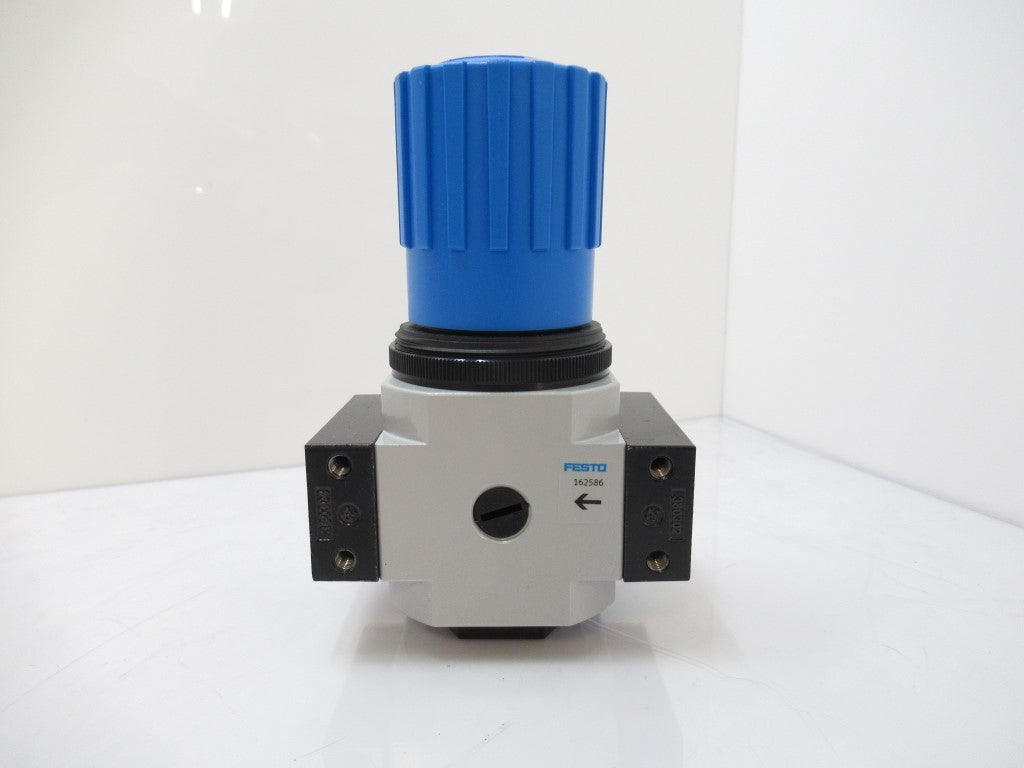

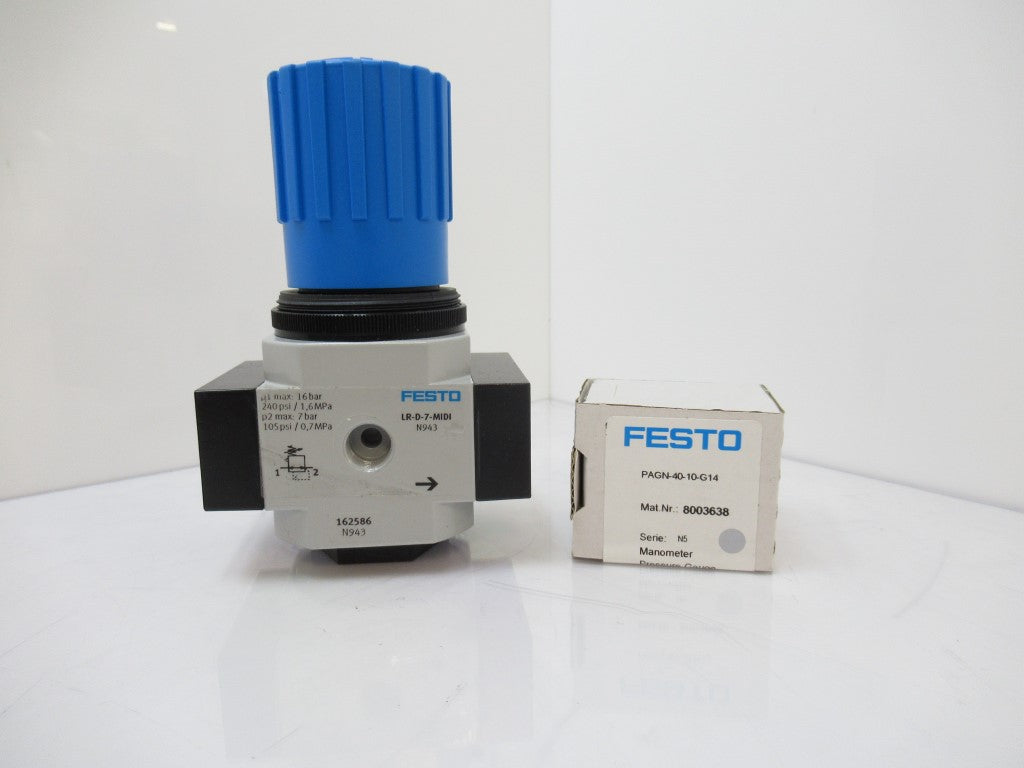

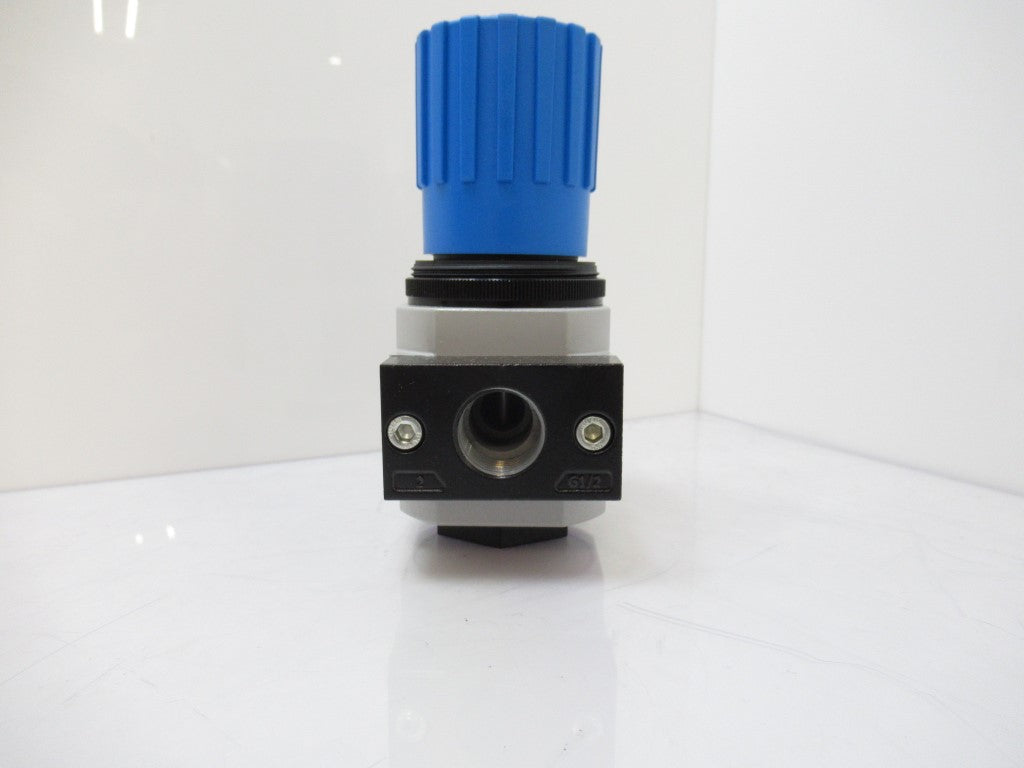

162586 LR-1/2-D-7-MIDI Festo Pressure Regulator

by FESTO
$183.53 USD
FACTORY SUPPLY BRAND NEW
SKU FRL-0248-E
UPC: DOES NOT APPLY
Only 1 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

Product Information

  • Size: Midi
  • Series: D

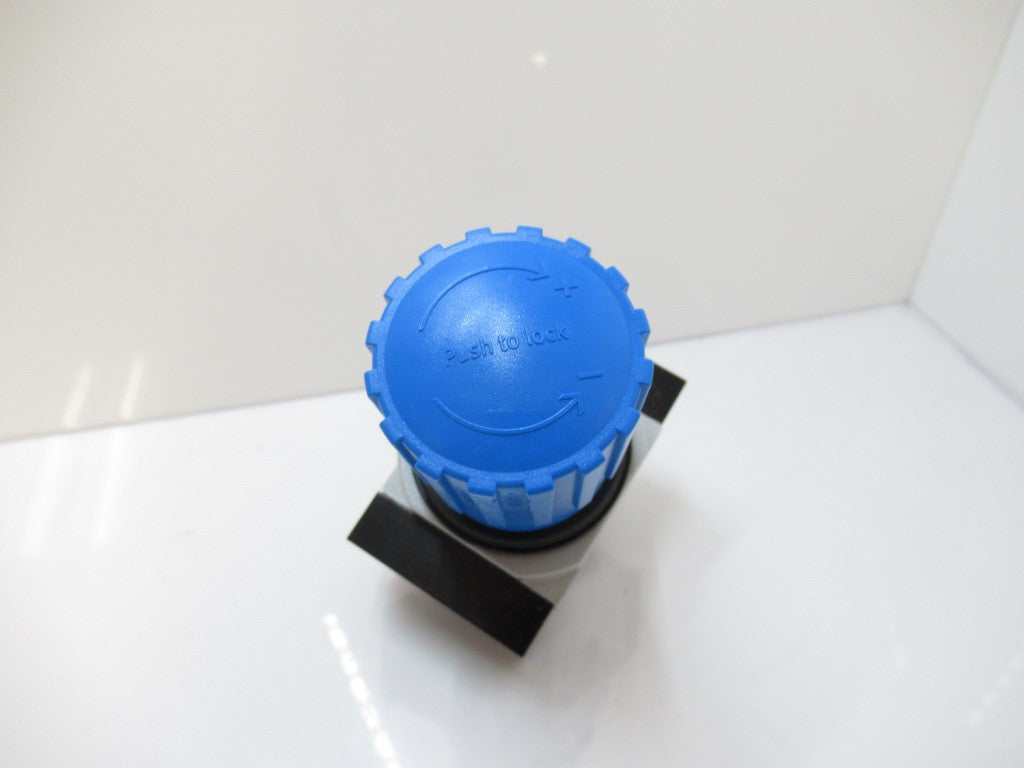

  • Actuator lock: Rotary knob with detent
  • Mounting position: Any
  • Structural design: Directly controlled diaphragm regulator
  • Controller function: Outlet pressure constant, With primary pressure compensation, With secondary exhausting
  • Symbol: 00991538

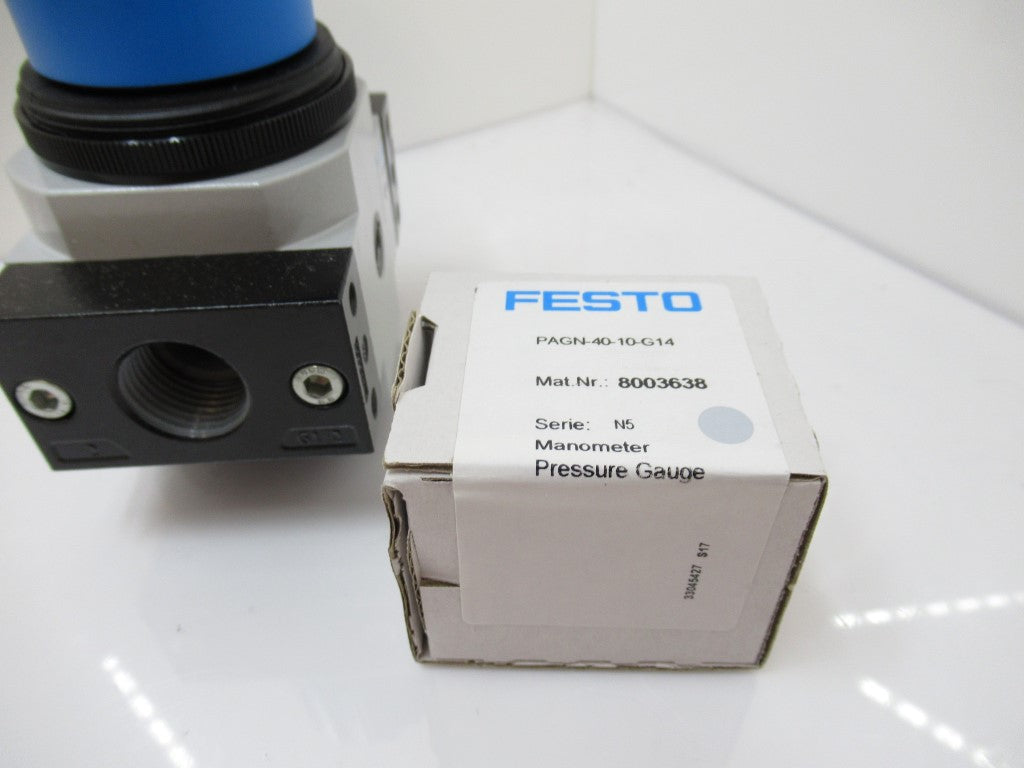

  • Pressure gauge: with pressure gauge
  • Operating pressure: 0 bar ... 16 bar
  • Pressure regulation range: 0.5 bar ... 7 bar
  • Max. pressure hysteresis: 0.2 bar
  • Standard nominal flow rate: 4000 l/min
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4], Inert gas
  • Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC): 2 - Moderate corrosion stress
  • Air quality class at the output: Compressed air as per ISO 8573-1:2010 [7:4:4], Inert gas
  • Temperature of medium: -10 °C ... 60 °C
  • Ambient temperature: -10 °C ... 60 °C
  • Product weight: 720 g
  • Type of mounting: Front panel mounting, Line installation, With accessories
  • Pneumatic connection 1: G1/2
  • Pneumatic connection 2: G1/2
  • Note on materials: RoHS-compliant
  • Material of sub-base: Die-cast zinc
  • Seals material: NBR
  • Housing material: Die-cast zinc
