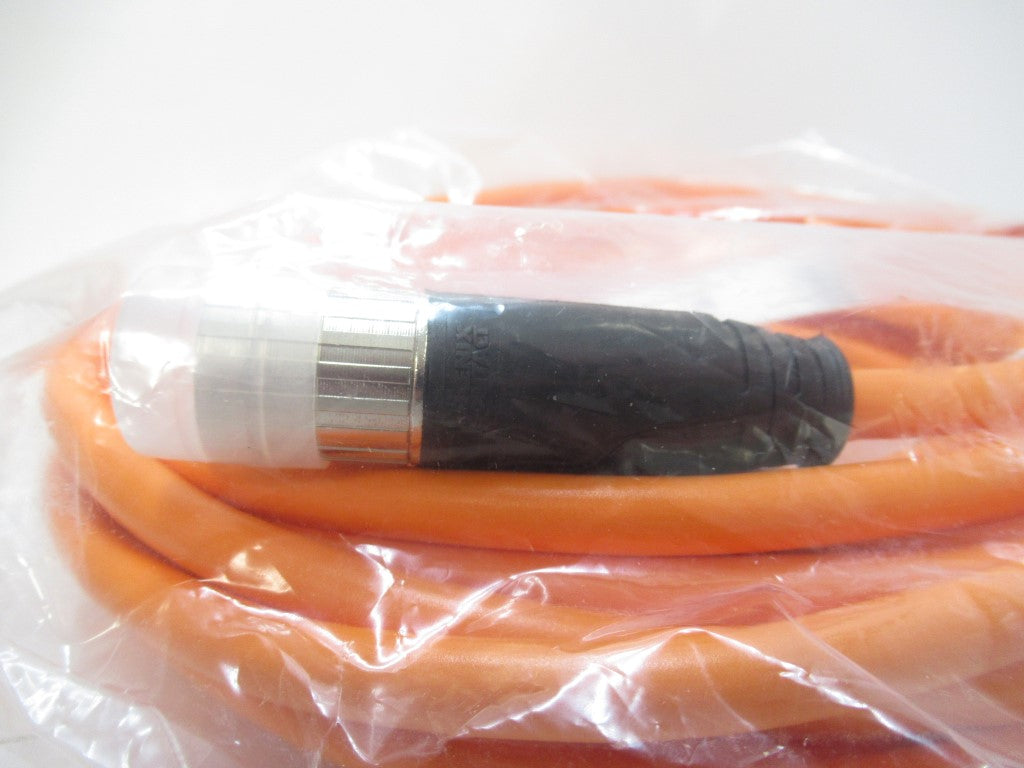

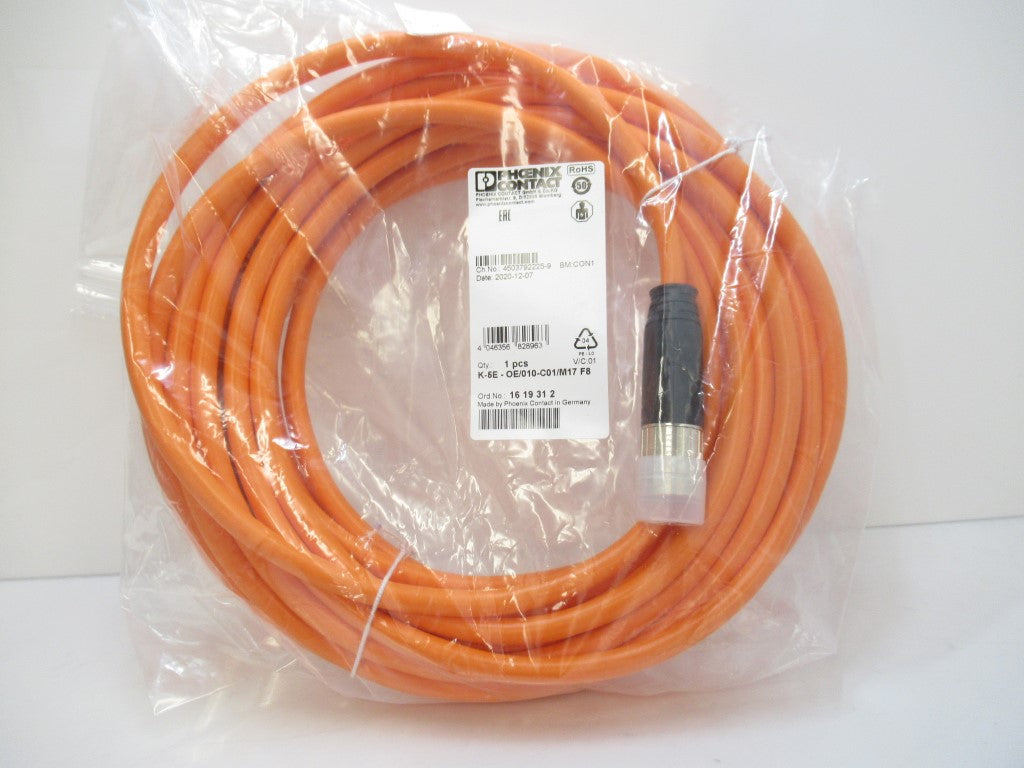

1619312 Phoenix Contact Cable Plug In Molded Plastic, Length: 10 M
Country Of Origin: Germany
1619312 K-5E-OE/010-C01/M17 F8 K5EOE010C01M17F8
Phoenix Contact
Cable Plug In Molded Plastic, Length: 10 M
(New In Bag)
Connector specifications
| Type | straight plastic-sheathed |
|---|---|
| Housing material | Zinc die-cast |
| Thread type | M17 |
| Locking type | Screw locking |
| Degree of protection | IP67, when in locked state |
| Number of positions | 5+PE |
| Direction of rotation | Standard |
| Type of contact | Socket |
| Insertion/withdrawal cycles | 50 |
| Contact resistance | < 0.3 mΩ |
| Max. current | 14 A |
| Voltage | 630 V |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 6 kV |
| Ambient temperature (operation) | -40 °C ... 105 °C |
Cable specifications
| Type of cable | PSLC11Y-J |
|---|---|
| Shielded | yes |
| Cable structure | 4x 1.0 mm² + 2x 0.5 mm² |
| External cable diameter | 8.9 mm ±0.3 mm |
| Outer sheath, material | PUR |
| Material wire insulation | PP |
| Single wire, color | Black 1, black 2, black 3, black 4, green/yellow Power wires + PE |
| black, white Signal wires | |
| Nominal voltage, cable | 1000 V |
| Test voltage | 4 kV |
| Smallest bending radius, movable installation | 69 mm |
| Number of bending cycles | 5000000 |
| Traversing path | 5 m |
| Acceleration | 5 m/s² |
| Ambient temperature for fixed installation | -40 °C ... 80 °C |
| Ambient temperature for flexible installation | -25 °C ... 80 °C |
| UL AWM style | 80°C/1000 V |
| Special properties | Flexible cable conduit capable |
| Flame resistance | according to UL 758/1581 FT1 |
| Halogen-free | According to EN 50267-2-1 |
| Resistance to oil | EN 60811-2-1 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 years |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
-
