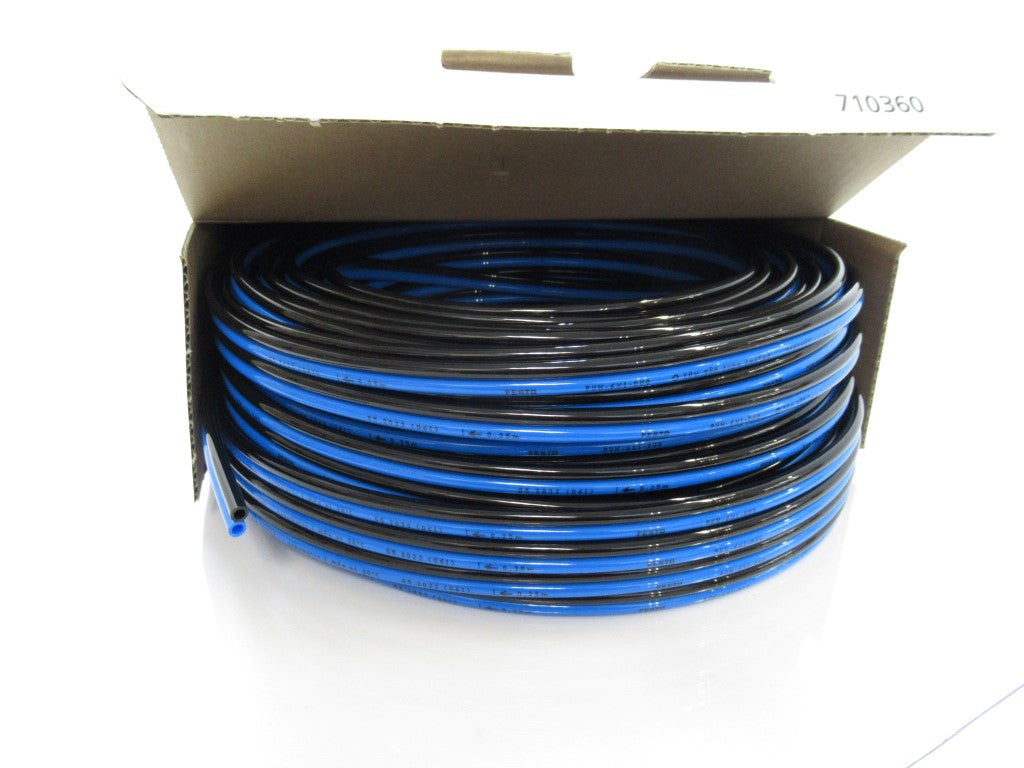

159676 Festo PUN-6X1-DUO-BS Plastic Tubing 6 mm Blue And Black

Product Information

PUN-6X1-DUO-BS

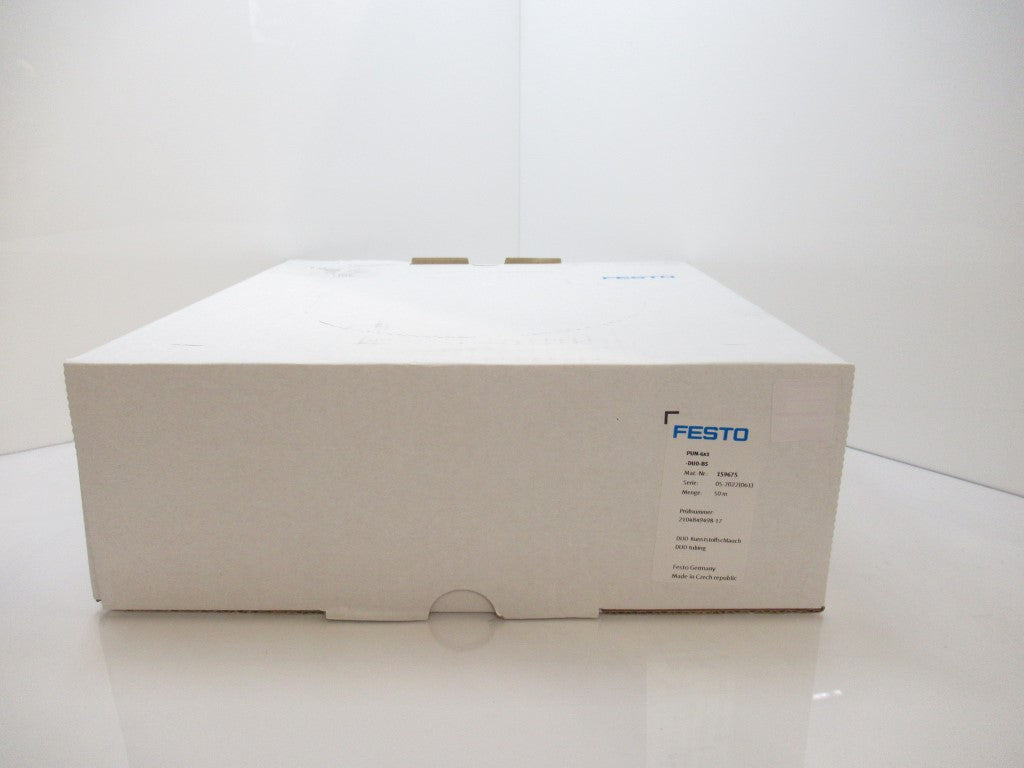

Sold By Box Of 50 Meters

• Outside Diameter: 6 mm
• Bending Radius Relevant For Flow Rate: 26.5 mm
• Inside Diameter: 4 mm. Bending
• Min. Bending Radius: 16 mm
• Tubing Characteristics: Suitable For Energy Chains In Applications With High Cycle Rates
• Pneumatic Tubing Test Conditions: Suitability For Energy Chains: >5 Million Cycles As Per FN 942021
• Temperature-Dependent Operating Pressure: -0.95 bar ... 10 bar
• Certification: German Technical Control Board (TÜV)
• Certificate Issuing Authority: B 013277 0506 00
• Operating Medium: Compressed Air As Per ISO 8573-1:2010 [7:-:-]
• Material Fire Test: UL94 HB
• LABS (PWIS) Conformity: VDMA24364-B2-L
• Ambient Temperature: -35 °C ... 60 °C
• Pneumatic Connection: For Plug Connection Outside Diameter 6 mm, For Barbed Fitting, Inside Diameter 4 mm, With Union Nut, For Barbed Fitting,
  Inside Diameter 4 mm
• Color: Blue/Black
• Shore Hardness: D 52 +/-3
• Note On Materials: Free Of Copper And PTFE, RoHS-Compliant
• Material Of Pneumatic Tubing: TPE-U(PU)
