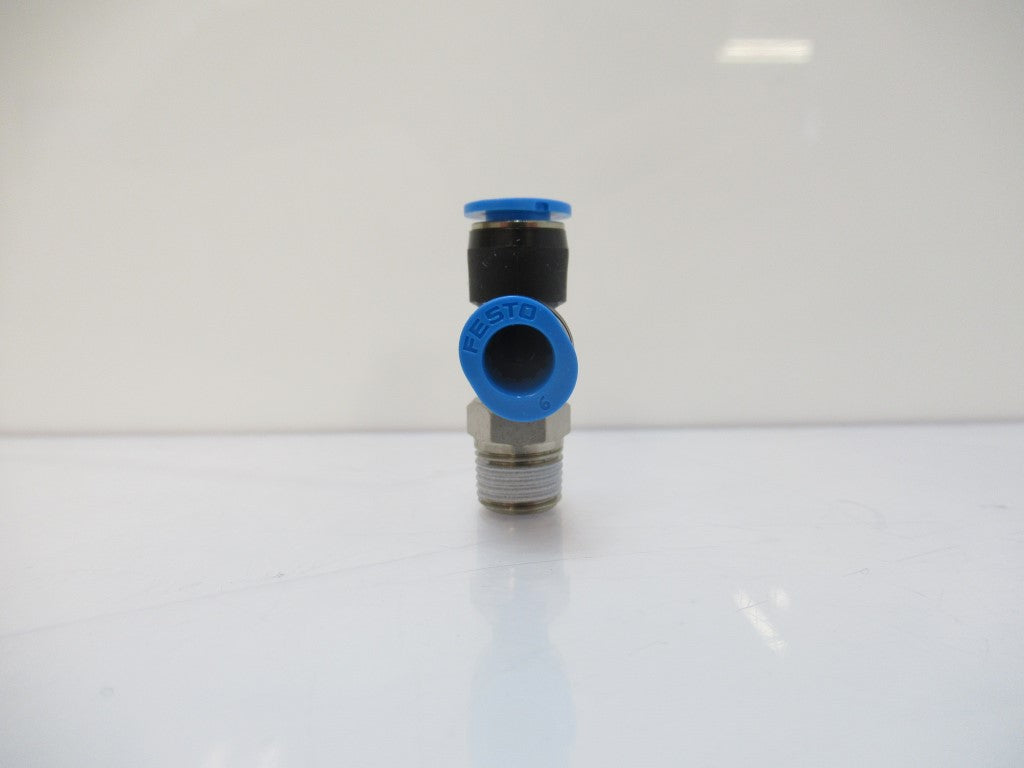

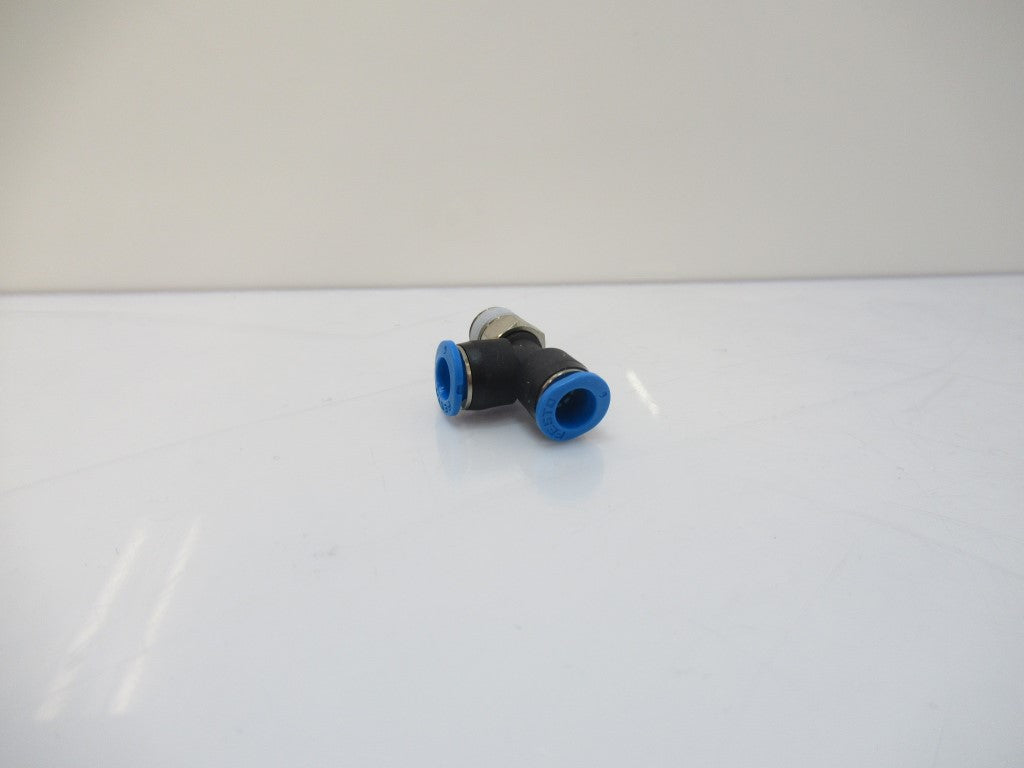

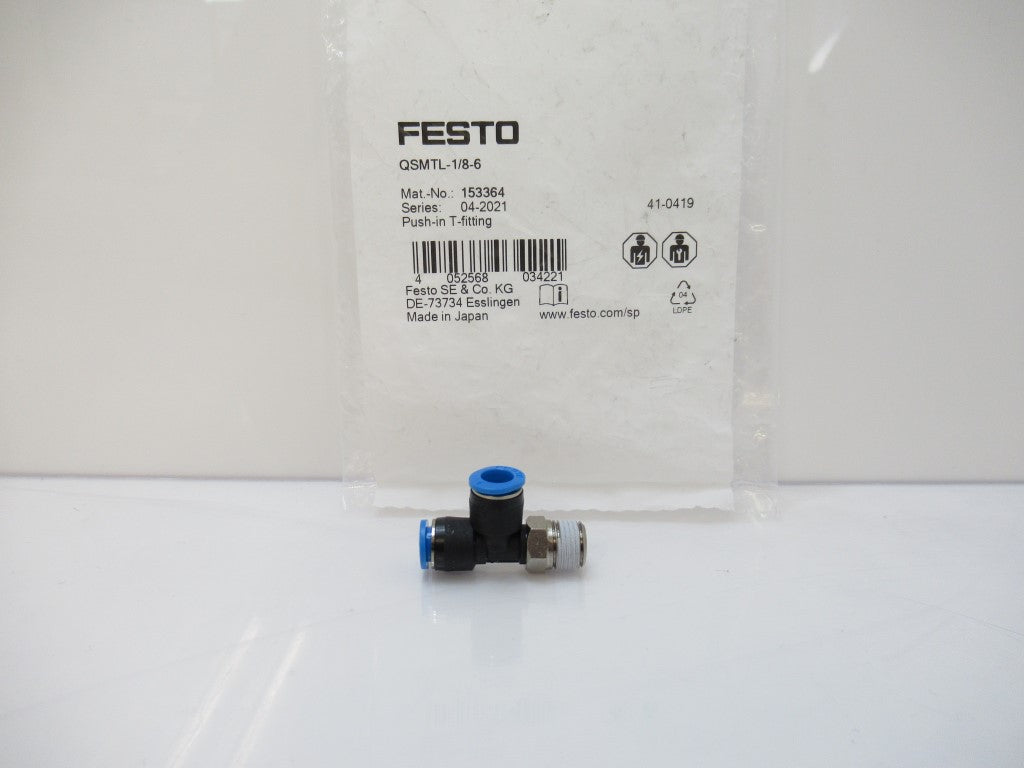

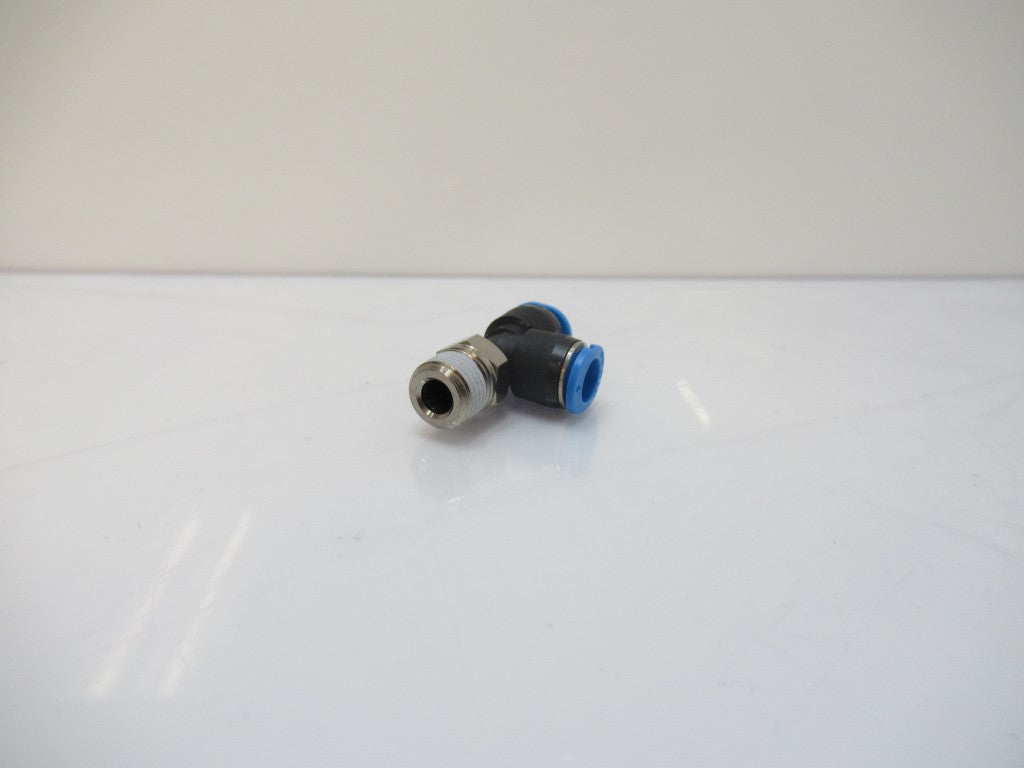

153364 QSMTL-1/8-6 Festo Push-In T-Fitting
Product Information
- Size: Mini
- Nominal width: 3.3 mm
- Type of seal on screwed trunnion: Coating
- Mounting position: Any
- Structural design: Push-pull principle
- Operating pressure for entire temperature range: -0.95 bar ... 6 bar
- Temperature-dependent operating pressure: -0.95 bar ... 14 bar
- Maritime classification: See certificate
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media: Operation with oil lubrication possible
- Corrosion resistance class (CRC): 1 - Low corrosion stress
- Ambient temperature: -10 °C ... 80 °C
- Product weight: 8.5 g
- No. of outlets: 2
- No. of supply lines: 1
- Pneumatic connection 1: External thread R1/8
- Pneumatic connection 2: for pneumatic tubing outside diameter 6 mm
- Releasing ring color: Blue
- Note on materials: RoHS-compliant
- Housing material: PBT
- Releasing ring material: POM
- Material of tubing seal: NBR
- Material of tube retaining claw: High-alloy stainless steel
