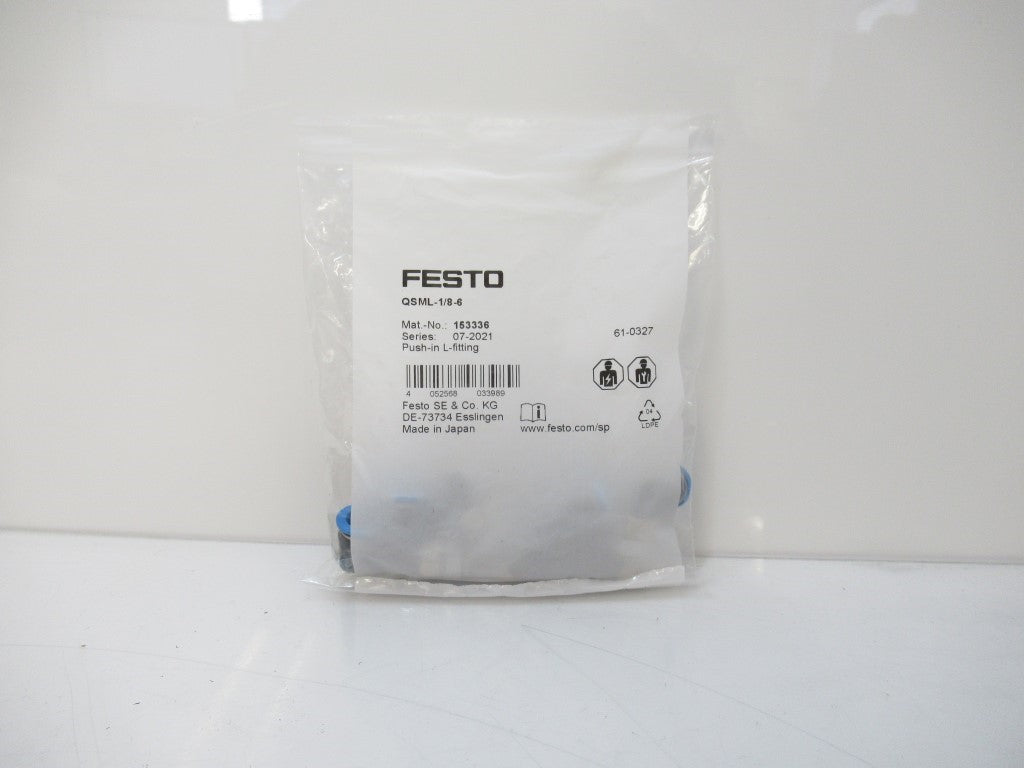

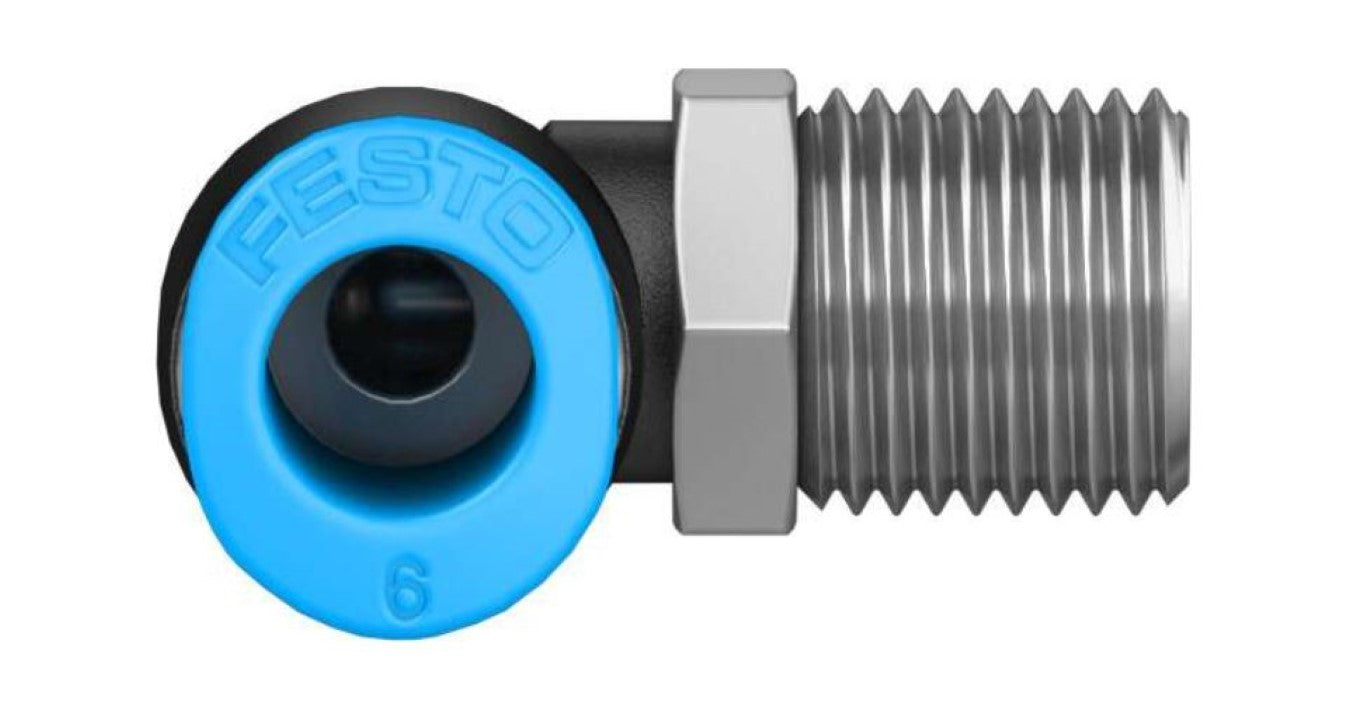

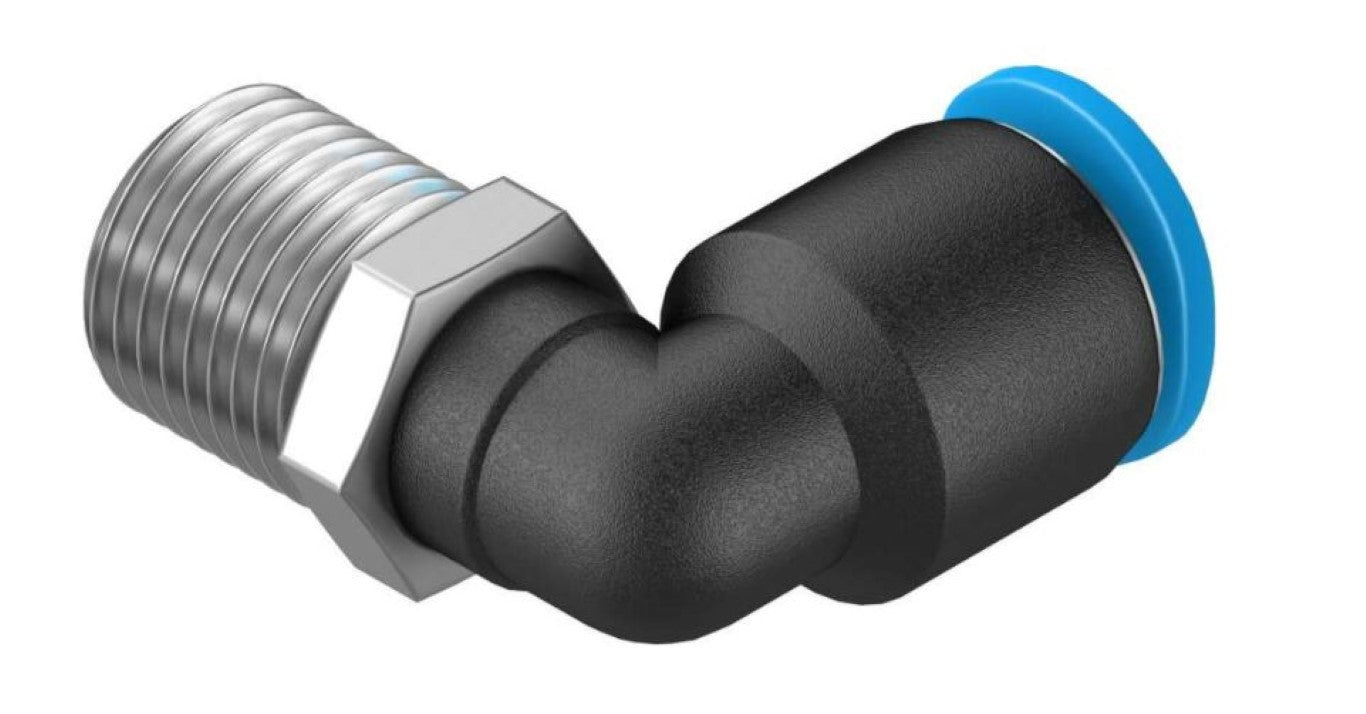

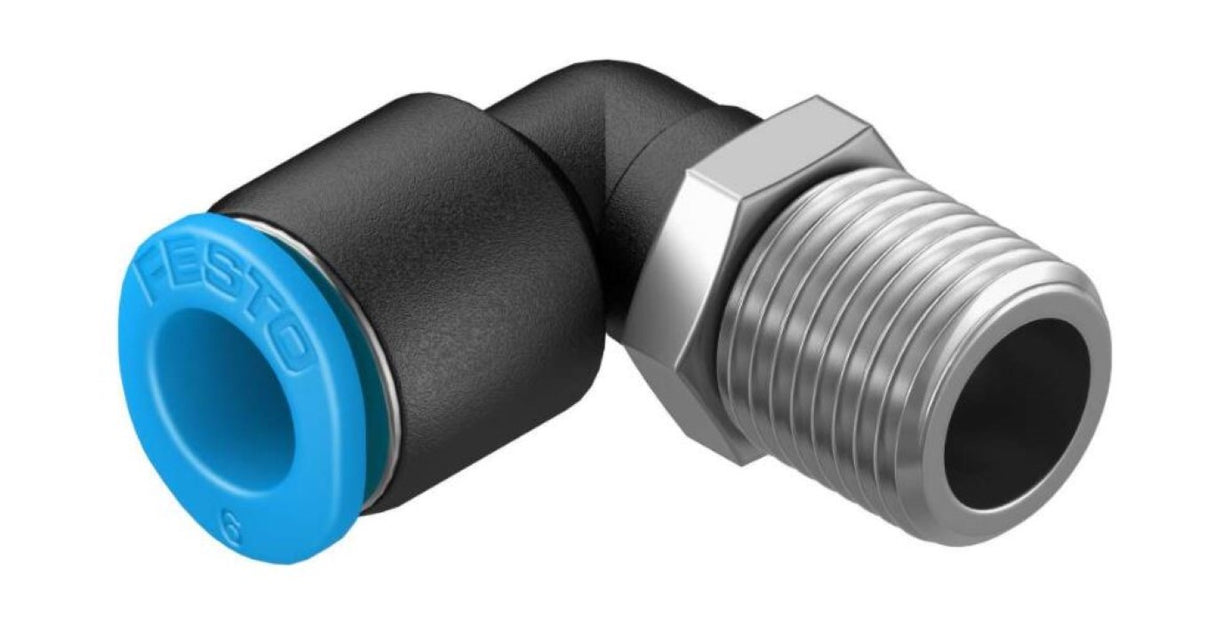

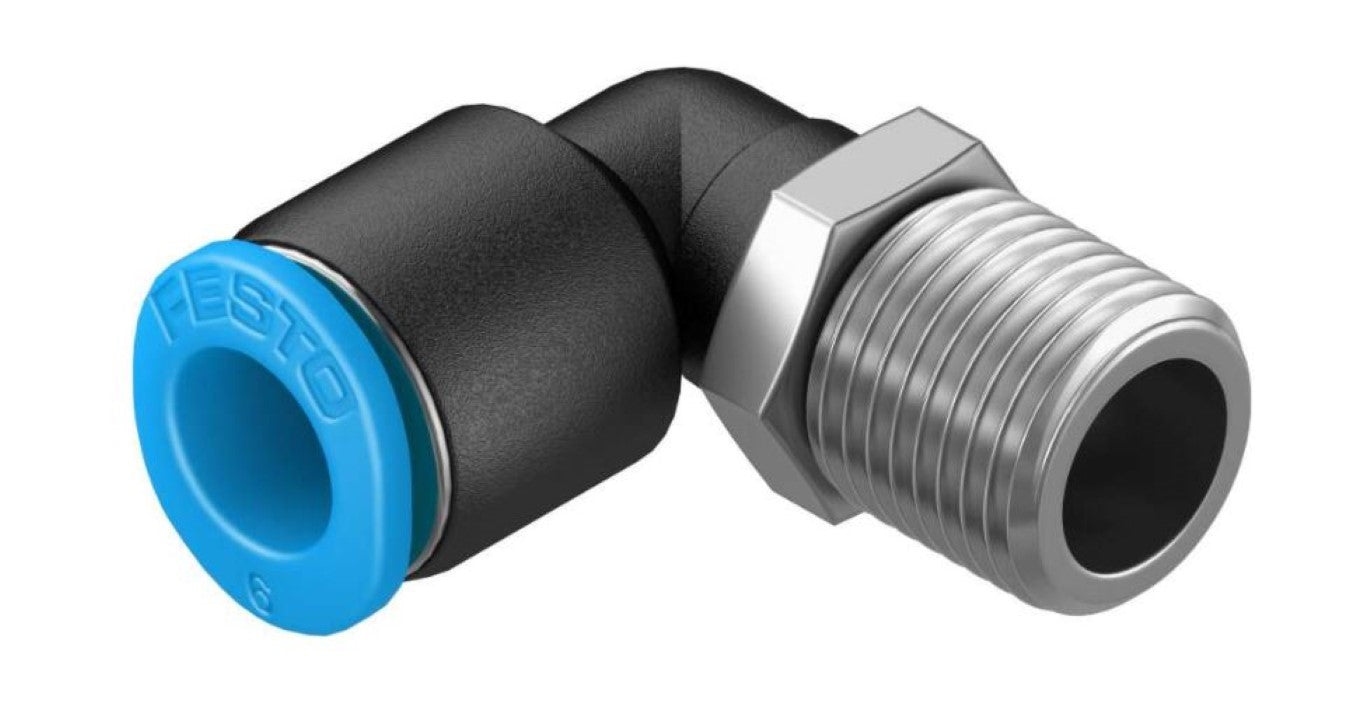

QSML-1/8-6 153336 Festo Push-In L-Fittings

Product Information

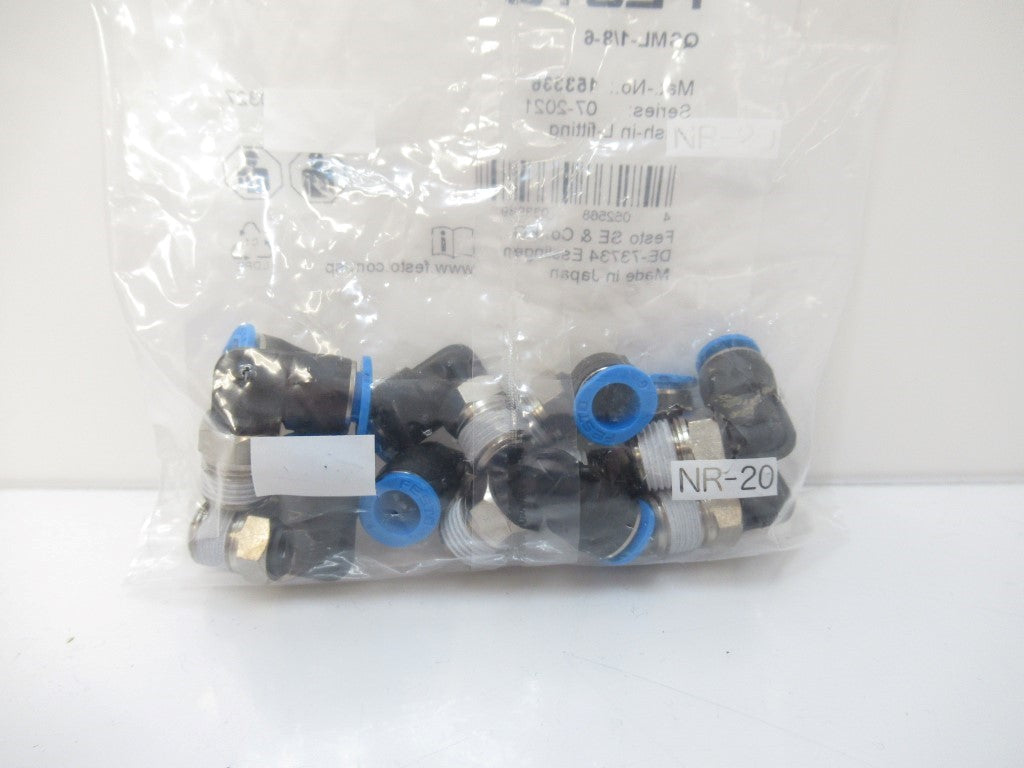

Sold Per Pack Of 10

• QSML186
• Size: Mini
• Nominal Width: 3.3 mm
• Type Of Seal On Screwed Trunnion: Coating
• Mounting Position: Any
• Structural Design: Push-Pull Principle
• Ambient Temperature: -10 °C ... 80 °C
• Pneumatic Connection 1: External Thread R1/8
• Pneumatic Connection 2: For Pneumatic Tubing Outside Diameter 6 mm
• Releasing Ring Color: Blue
• Note On Materials: RoHS-Compliant
• Housing Material: PBT
• Releasing Ring Material: POM
• Material Of Tubing Seal: NBR
• Material Of Tube Retaining Claw: High-Alloy Stainless Steel
