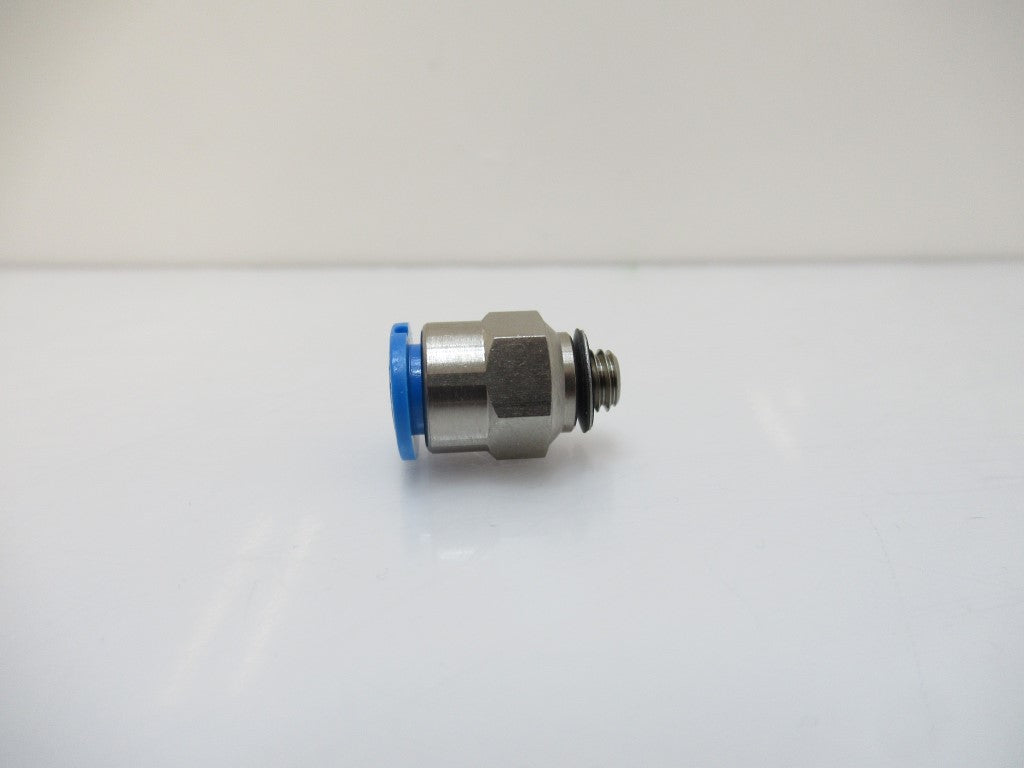

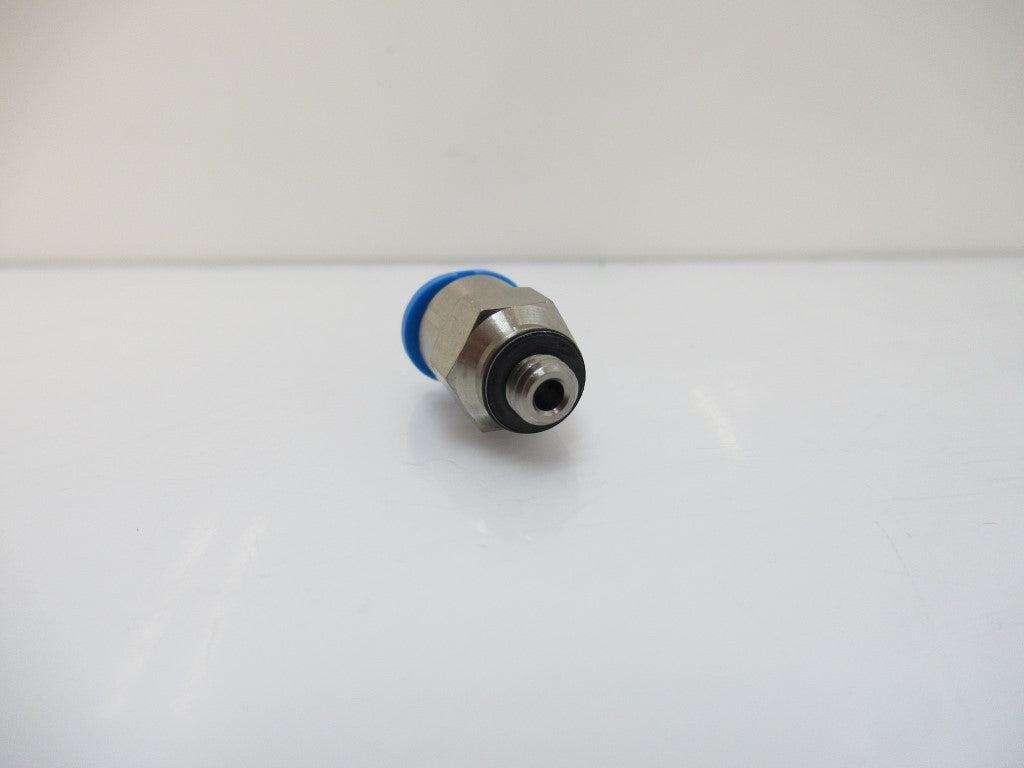

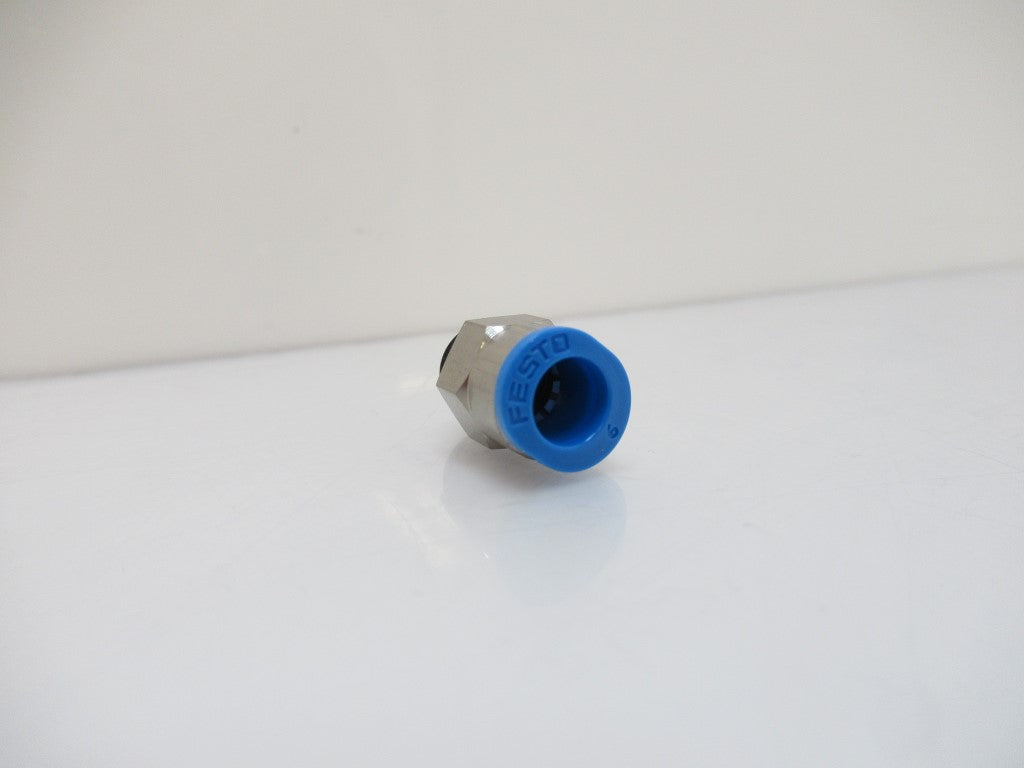

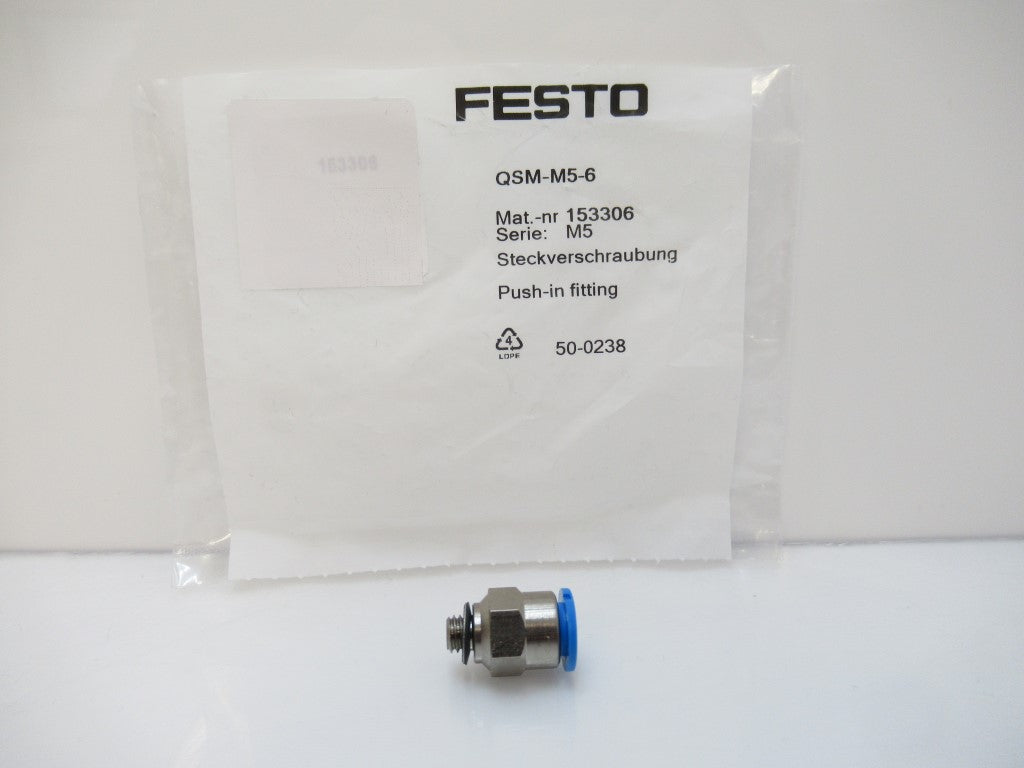

153306 QSM-M5-6 Festo Push-In Fitting

SKU FIT-0031-E
Original price $2.88 USD - Original price $2.88 USD
Original price
$2.88 USD
$2.88 USD - $2.88 USD
Current price $2.88 USD
Availability:
9 in stock, ready to be shipped

Standard shipping

Estimated delivery time, 7-10 days

Specifications
Request a quote

153306 QSM-M5-6 QSMM56

Festo

Push-In Fitting

Sold By Unit New

Feature Value

Size  Mini
Nominal size  2.1 mm
Type of seal on screw-in stud  Sealing ring
Assembly position  Any

Design structure  Push/pull principle
Operating pressure complete temperature range  -0.95 ... 6 bar
Temperature dependent operating pressure  -0.95 ... 14 bar
Maritime classification  see certificate
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium  Lubricated operation possible
Corrosion resistance classification CRC  1 - Low corrosion stress
Ambient temperature  -10 ... 80 °C
Nominal tightening torque  1.33 Nm
Tolerance for nominal tightening torque  ± 20 %
Product weight  4.5 g
Pneumatic connection, port 1  Male thread M5
Pneumatic connection, port 2  For tubing outside diameter 6 mm
Colour of release ring  blue
Materials note  Conforms to RoHS
Material housing  Brass
Nickel plated
Material release ring  POM
Material of tubing seal  NBR
Material of tube retaining claw  High alloy steel, non-corrosive
