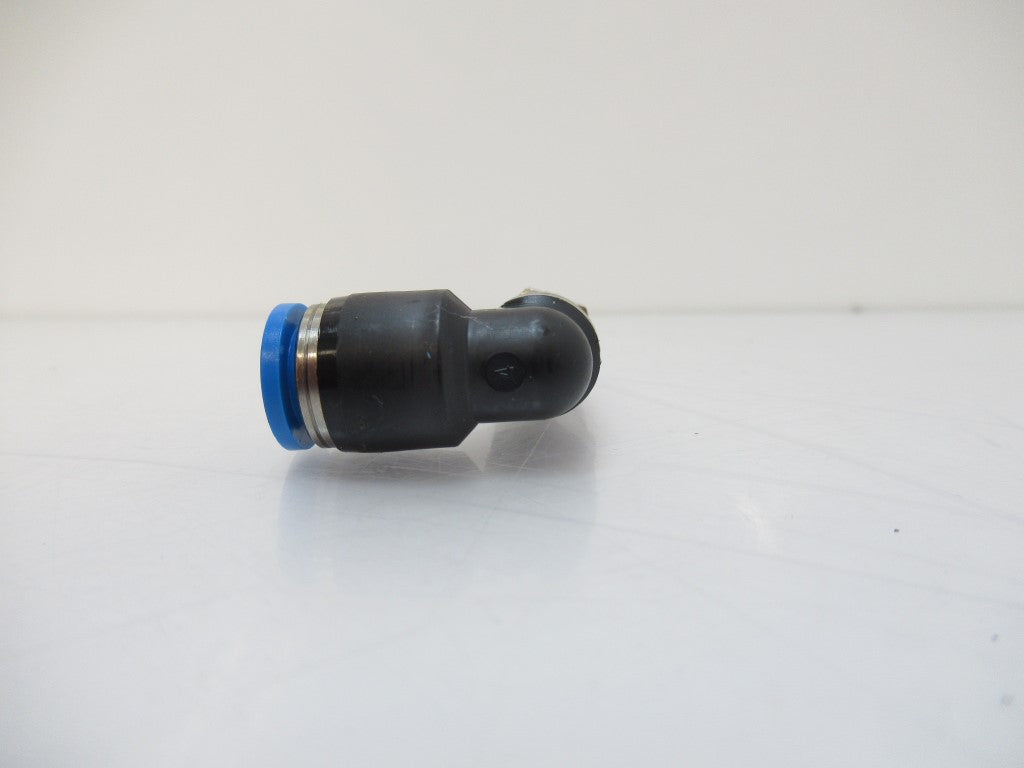

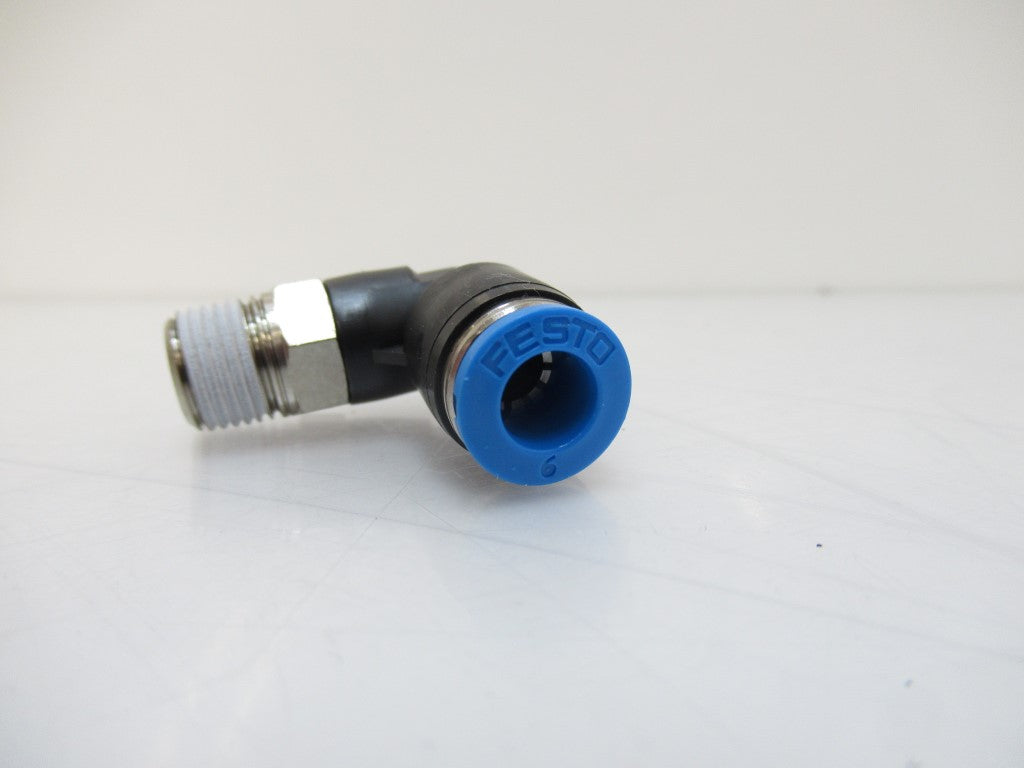

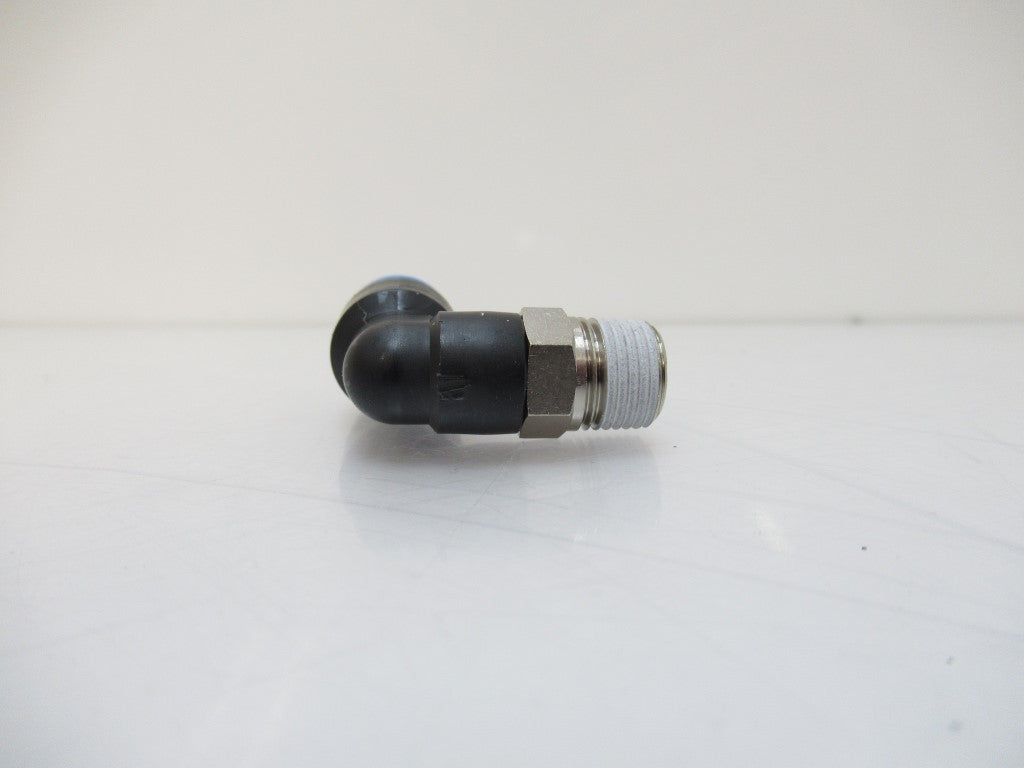

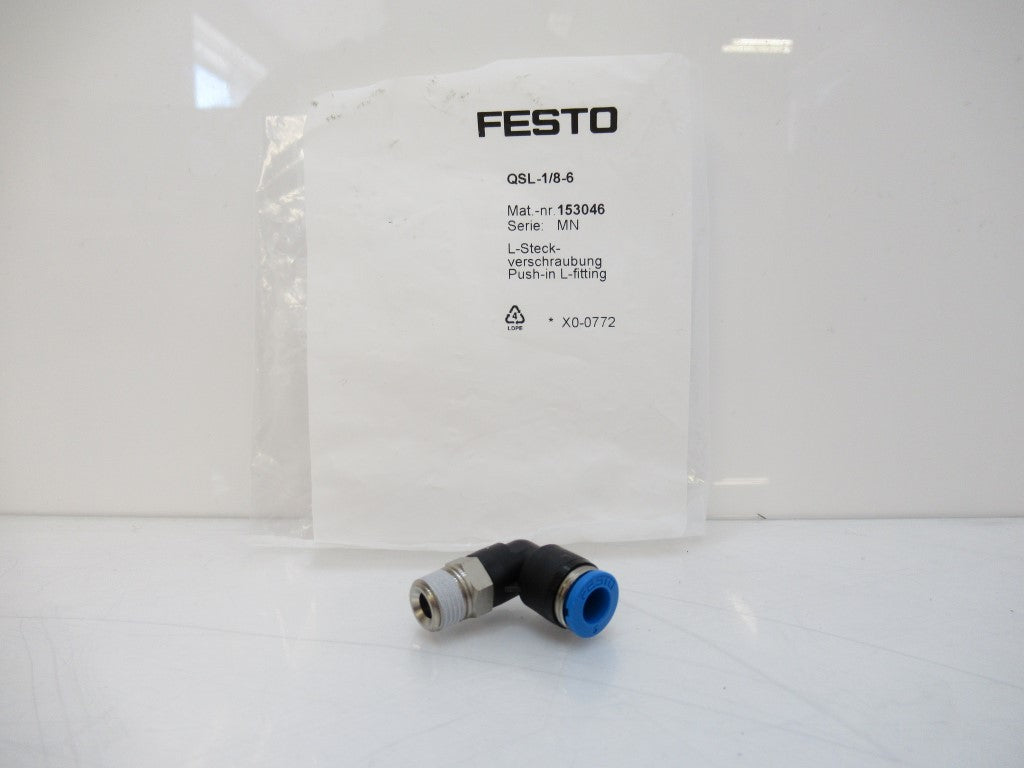

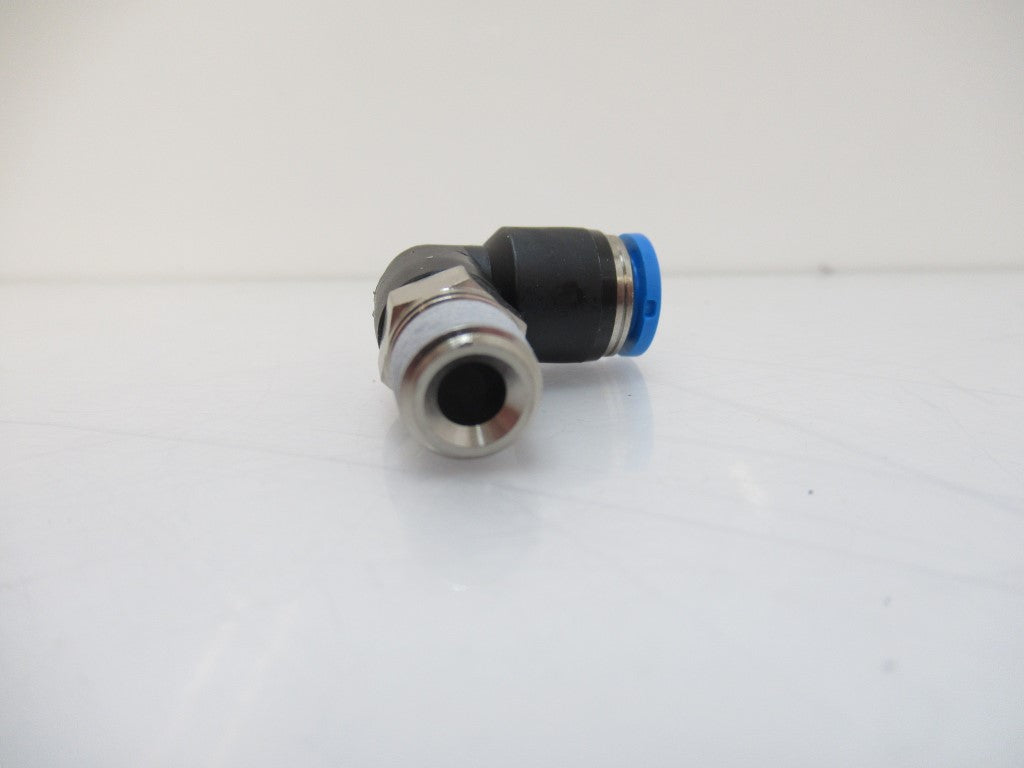

153046 QSL-1/8-6 Festo Push-In L-Fitting

153046 QSL-1/8-6 QSL186

Festo

Push-In L-Fitting

(Sold By Unit, New)

Description:

• Size: Standard
• Nominal Size: 4.2 mm
• Type Of Seal On Screw-In Stud: Coating
• Assembly Position: Any
• Container Size: 10
• Design Structure: Push/Pull Principle
• Operating Pressure Complete Temperature Range: -0.95 ... 6 bar
• Temperature Dependent Operating Pressure: -0.95 ... 14 bar
• Maritime Classification: See Certificate
• Operating Medium: Compressed Air In Accordance With Iso8573-1:2010 [7:-:-] Water As Per Manufacturer's Declaration
• Note On Operating And Pilot Medium: Lubricated Operation Possible
• Corrosion Resistance Classification CRC: 1 - Low Corrosion Stress
• Ambient Temperature: -10 ... 80 °c
• Product Weight: 11 G
• Pneumatic Connection, Port 1: Male Thread R1/8
• Pneumatic Connection, Port 2: For Tubing Outside Diameter 6 mm
• Colour Of Release Ring: Blue
• Materials Note: Conforms To RoHs
• Material Housing: PBT
• Material Release Ring: POM
• Material Of Tubing Seal: NBR
• Material Of Tube Retaining Claw: High Alloy Steel, Non-Corrosive
