153039 QS-10-8 QS108 Festo Push-In Connector

153039 Festo QS-10-8 Push-In Connector

SKU FIT-0633-E
$61.00 USD - $61.00 USD
$61.00 USD
$61.00 USD - $61.00 USD
$61.00 USD
Availability:
20 in stock, ready to be shipped
Pre Order

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote
by FESTO

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

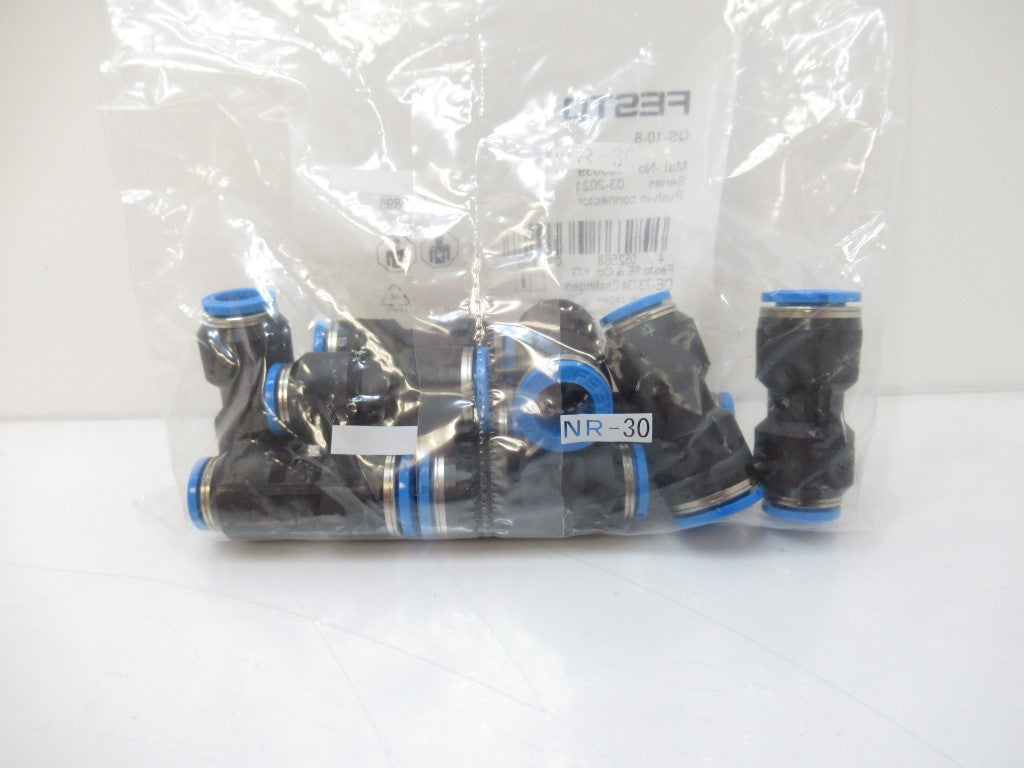

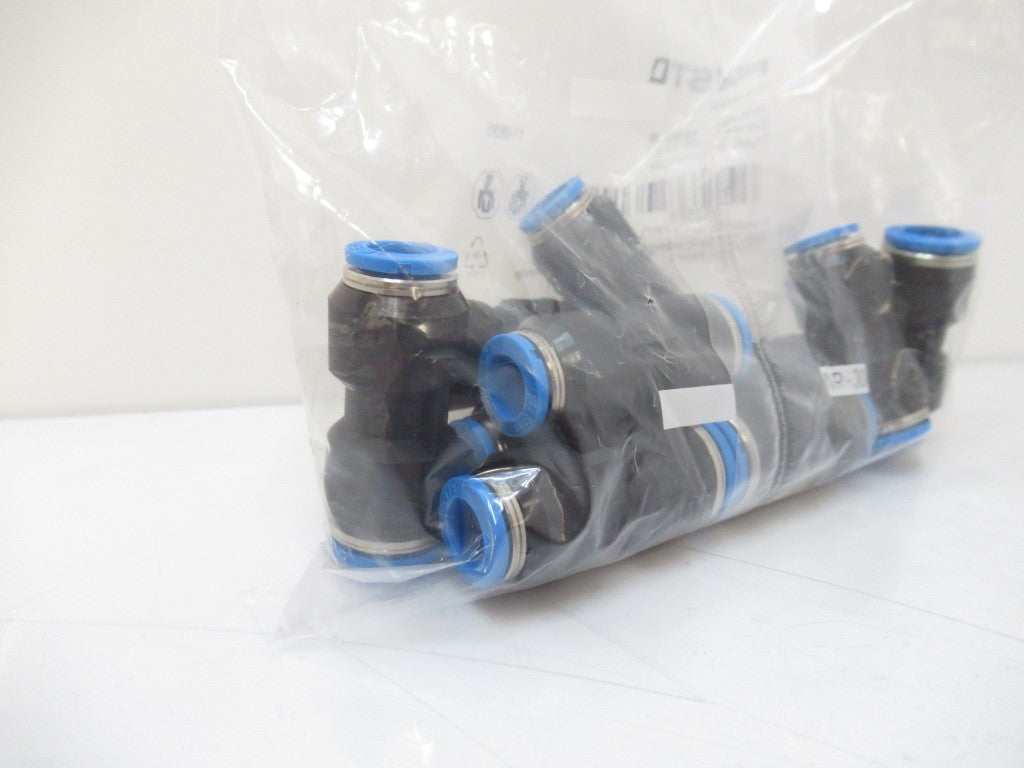

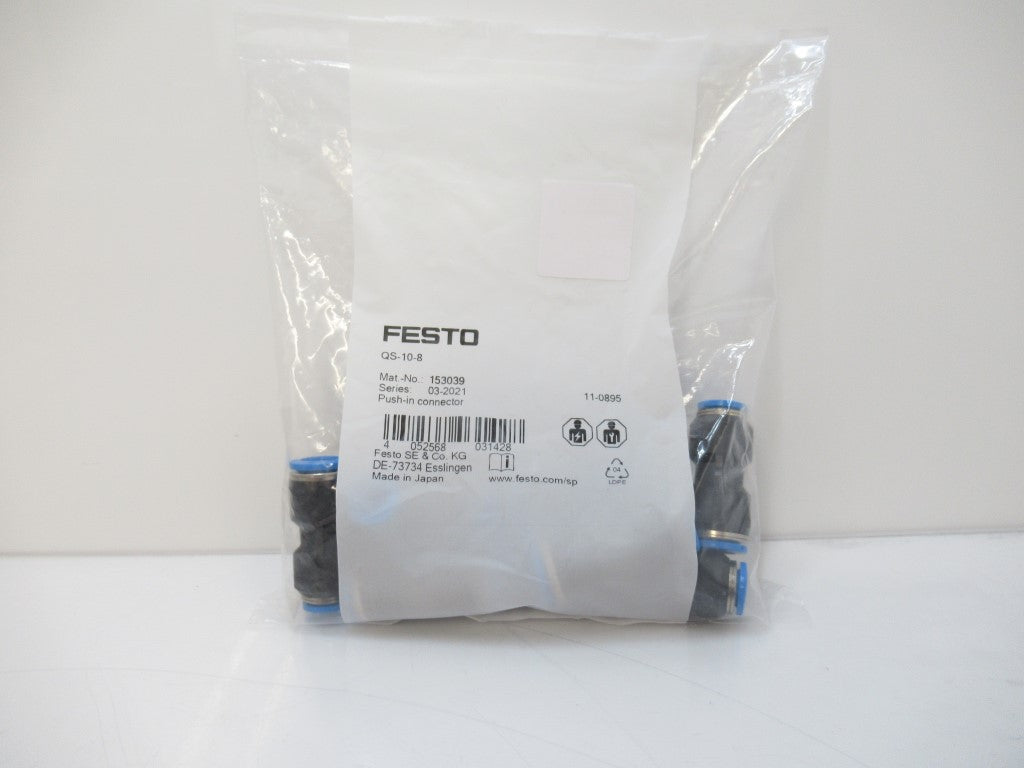

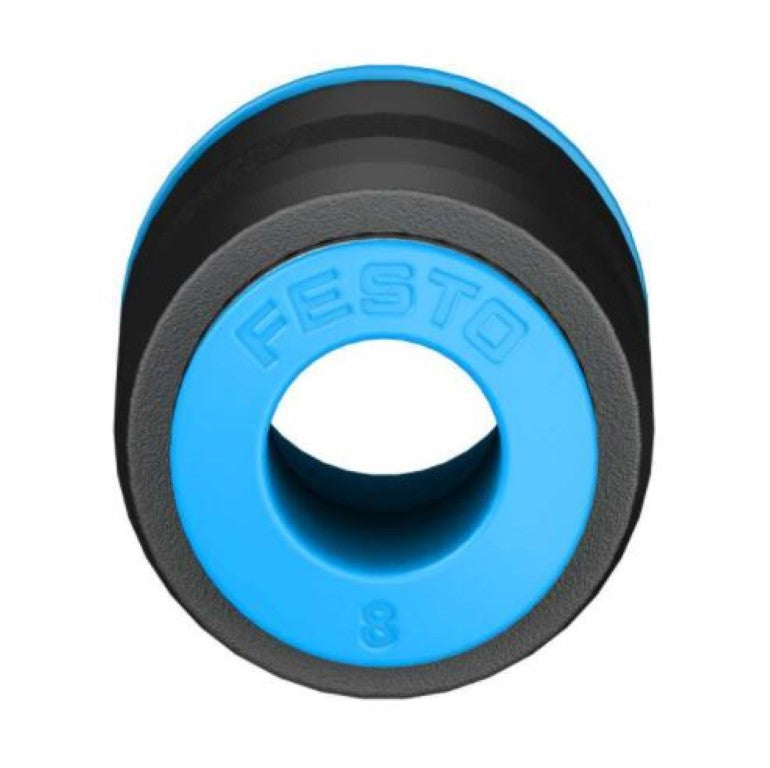

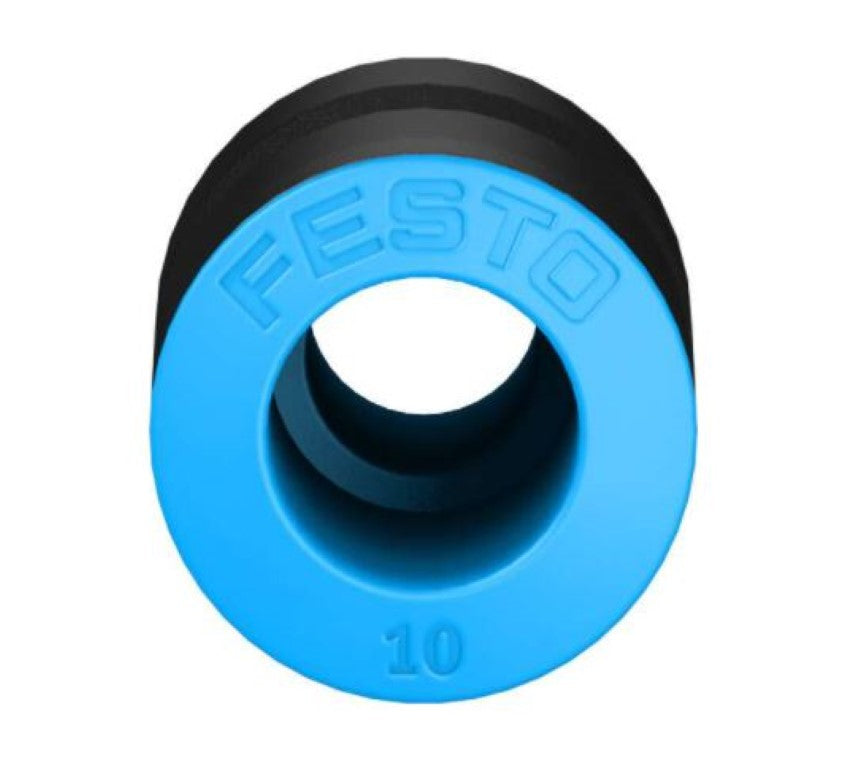

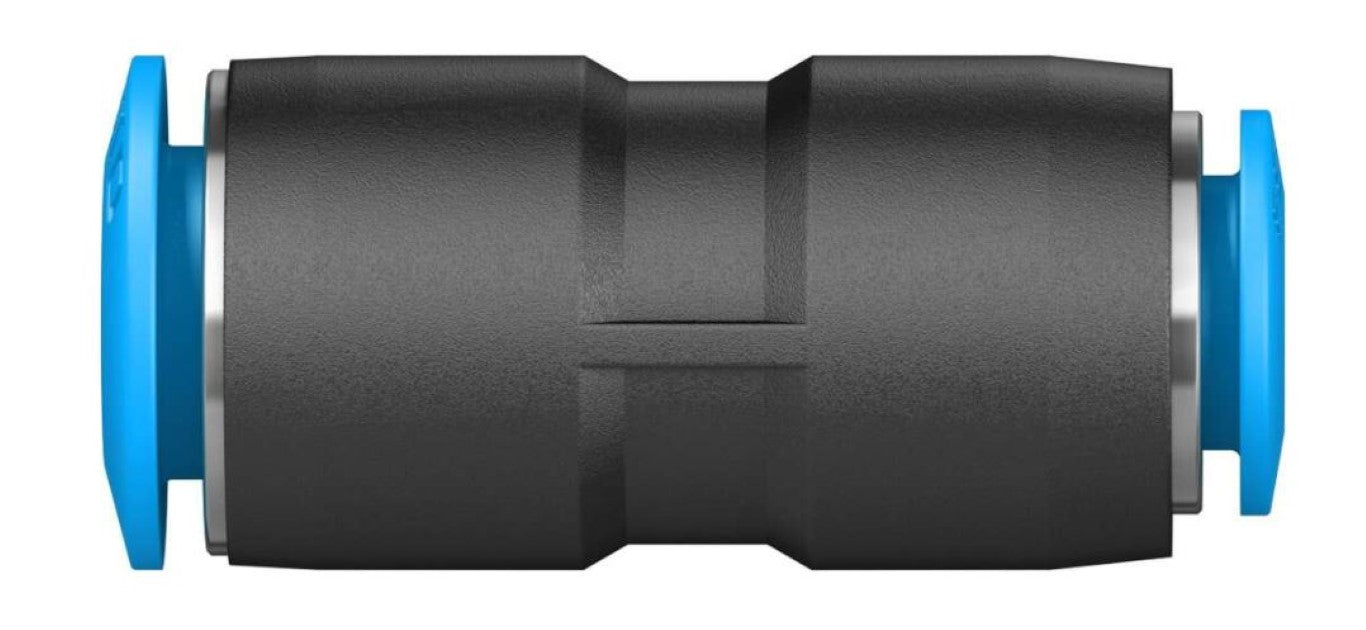

153039 QS-10-8 QS108 Festo Push-In Connector (Sold Per Pack Of 10, New) Description Size: Standard Nominal Width: 5 mm Mounting Position: Any Structural Design: Push-Pull Principle Operating Pressure For Entire Temperature Range: -0.95 bar ... 6 bar Temperature-Dependent Operating Pressure: -0.95 bar ... 14 bar Information On Operating And Pilot Media: Operation With Oil Lubrication Possible Pneumatic Connection 1: For Pneumatic Tubing Outside Diameter 10 mm Pneumatic Connection 2: For Pneumatic Tubing Outside Diameter 8 mm Releasing Ring Color: Blue Note On Materials: RoHS-Compliant Housing Material: PBT Releasing Ring Material: POM Material Of Tubing Seal: NBR Material Of Tube Retaining Claw: High-Alloy Stainless Steel
