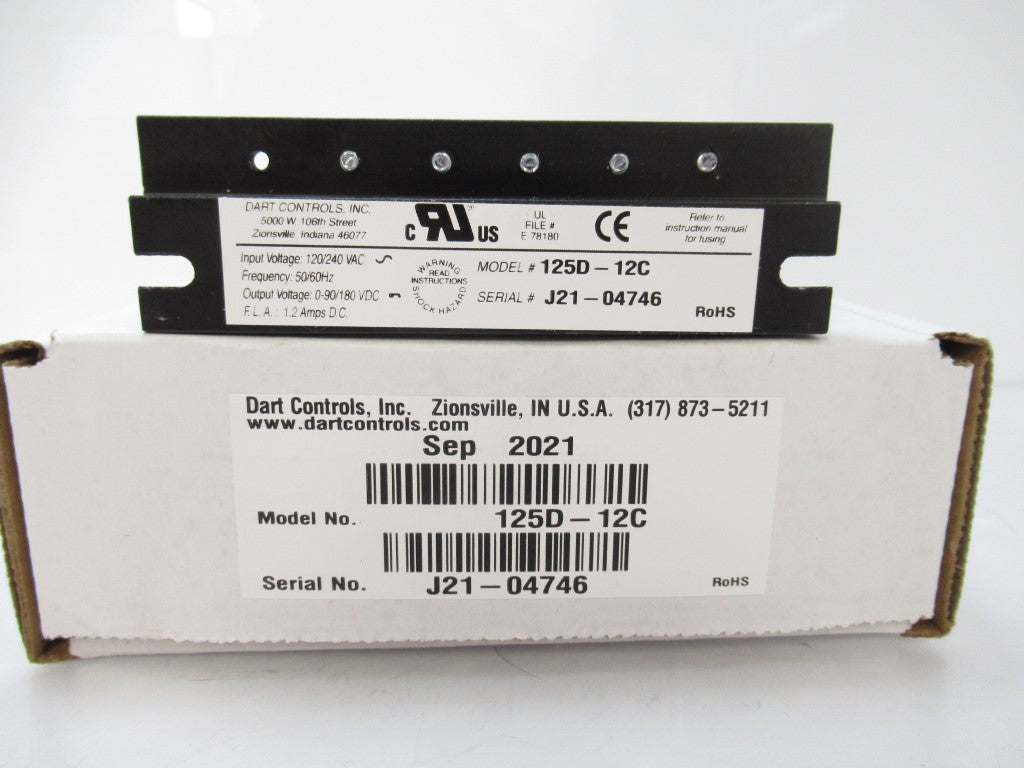

125D-12C Dart Controls 125D 1HP DC Speed Control

125D-12C 125D12C

Dart Controls

125D 1HP DC Speed Control

Description

A Compact, Cost-Efficient, Reliable Control For PM, Shunt Wound DC Motors, And Universal Motors.

The 125 Series Variable Speed Control Incorporates Up-To-Date Design And Engineering Into An Amazingly Small Package.

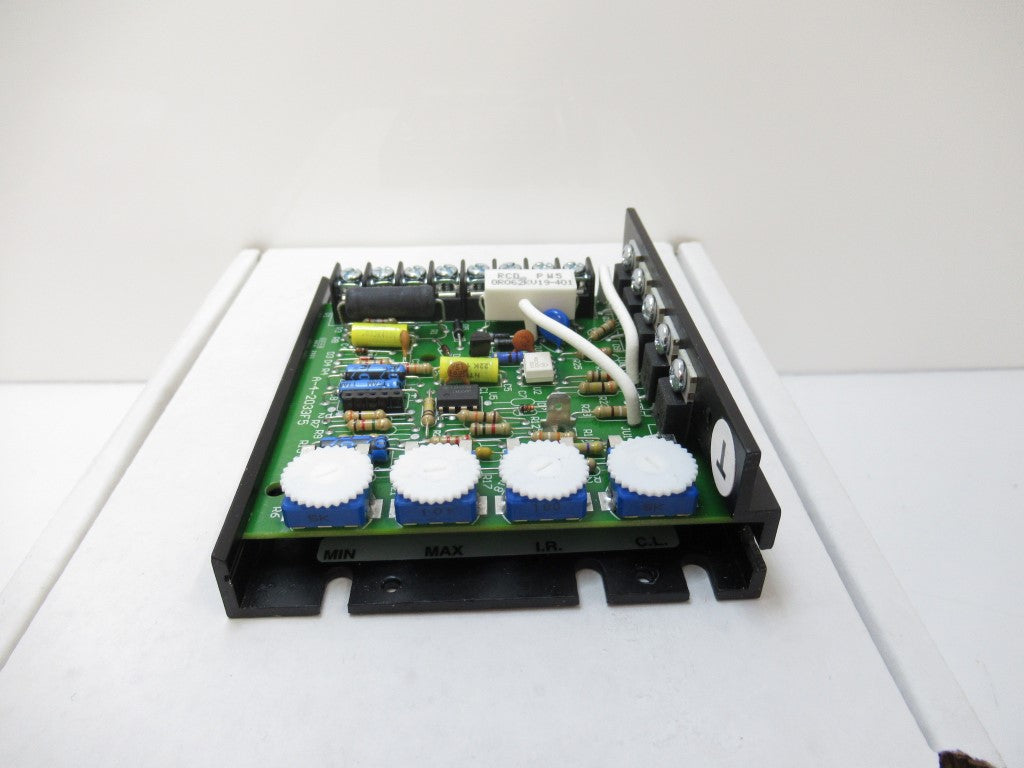

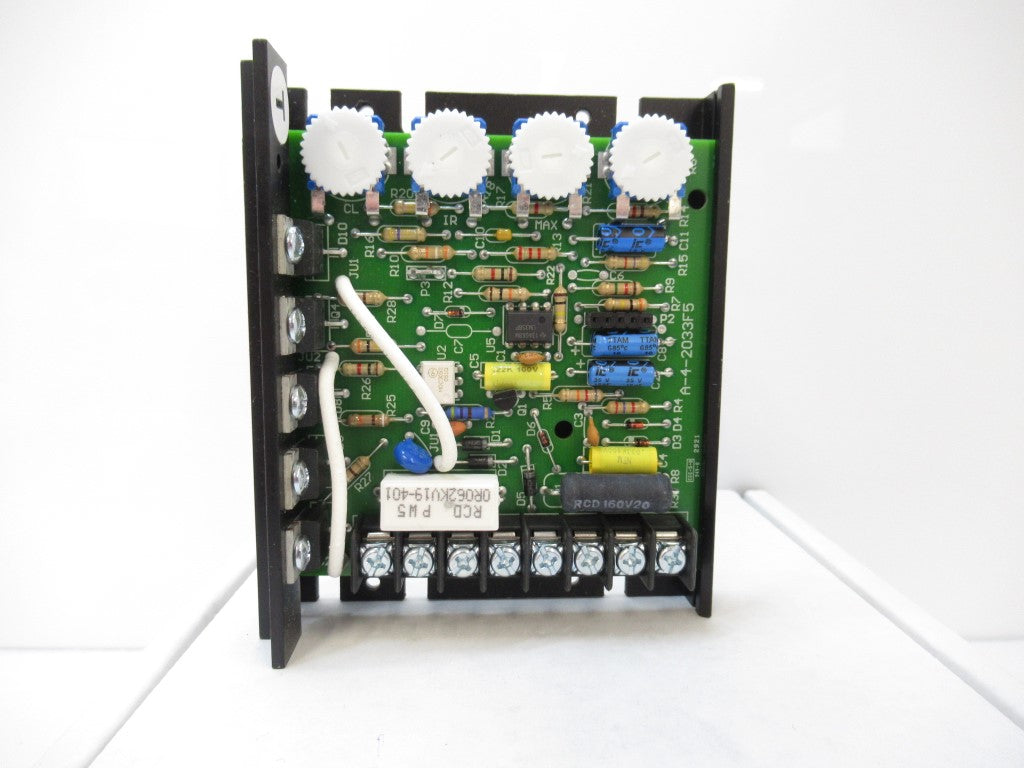

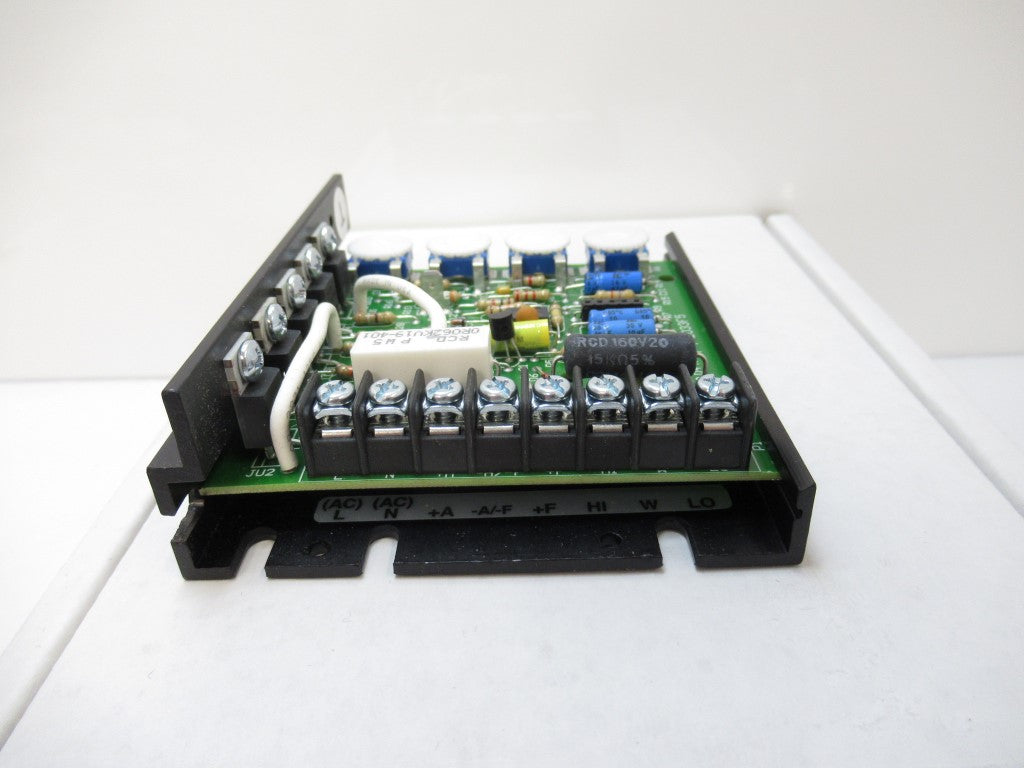

Installation And Field Adjustment Is Facilitated Using A Barrier-Type Terminal Strip And Large, Easily Adjusted Trimpots.

Adjustable Horsepower Range – 120V AC, 1/50 Through 1/8 HP And 1/4 Through 1/2 HP; 240V AC, 1/25 Through 1/4 HP, And 1/8 Through 1 HP.

Standard Features Include An Inhibit Circuit For Start-Stop Operation And 1% Speed Regulation Over A 50:1 Speed Range.

Long Life And Quality Are Assured By 100% Full Load Testing.

The 125 Series Is Ideal For Applications Such As Office Machinery, Conveyors, Packaging Equipment, Printers, Process Equipment, Centrifuges,
And Exercise Equipment.

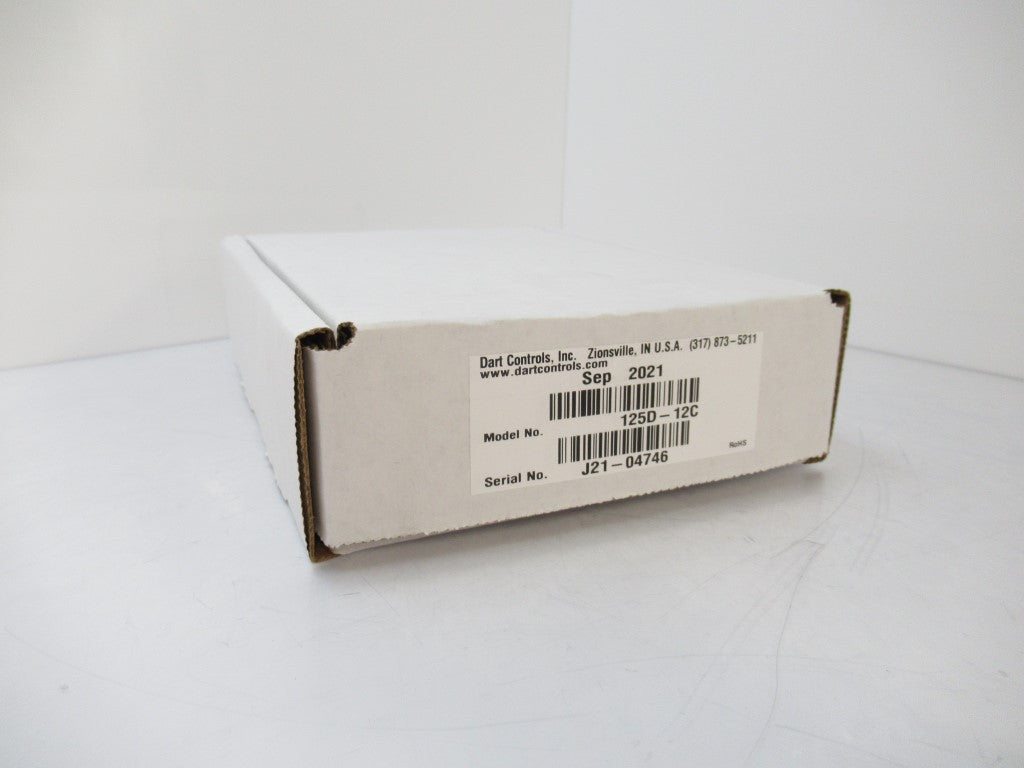

• Model Number: 125D-12C

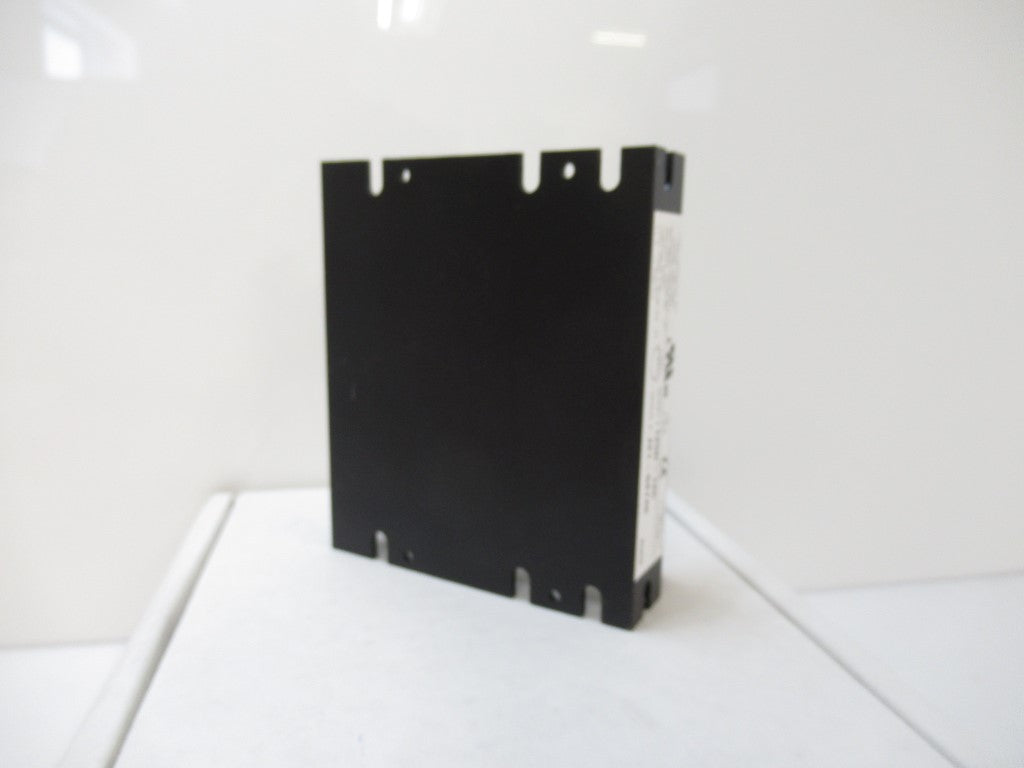

• Style: Chassis
• Input VAC: 120/240
• Output VDC: 0-90/180
• Output HP Range: 1/50-1/8(90V) 1/4-1(180V)
