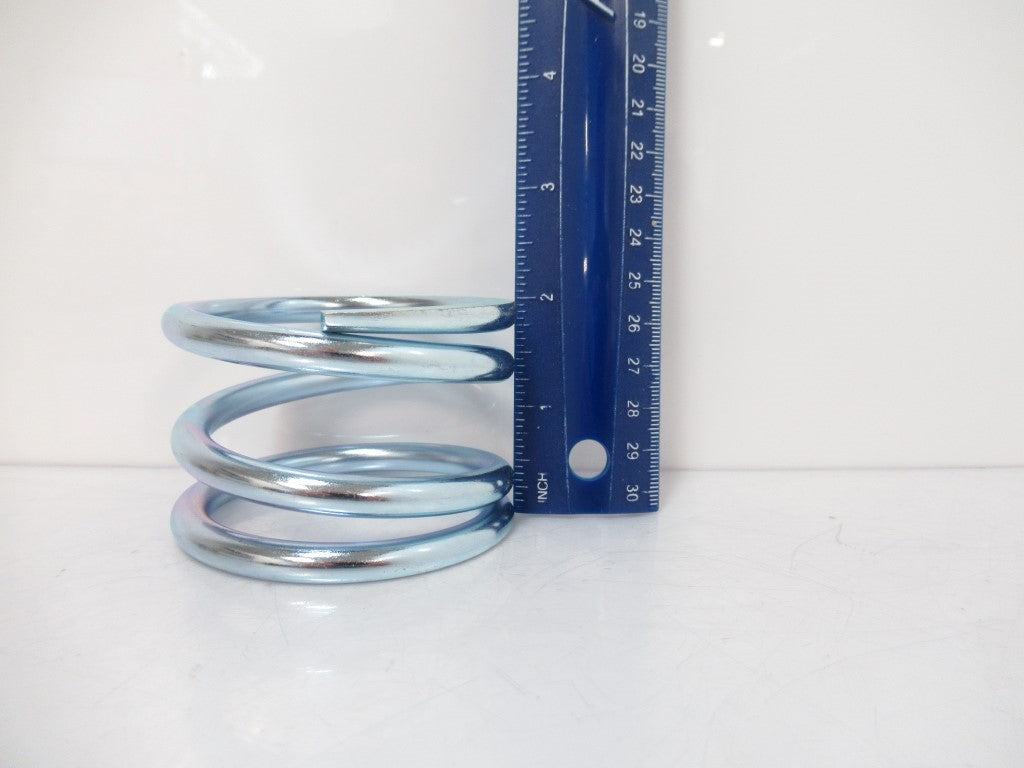

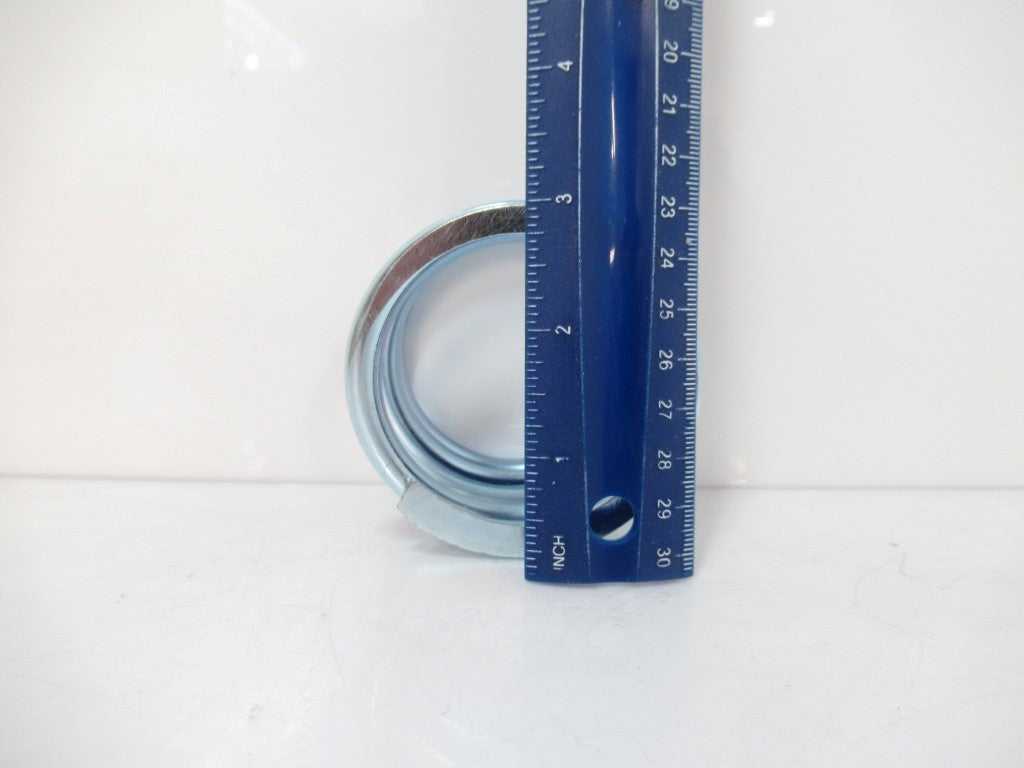

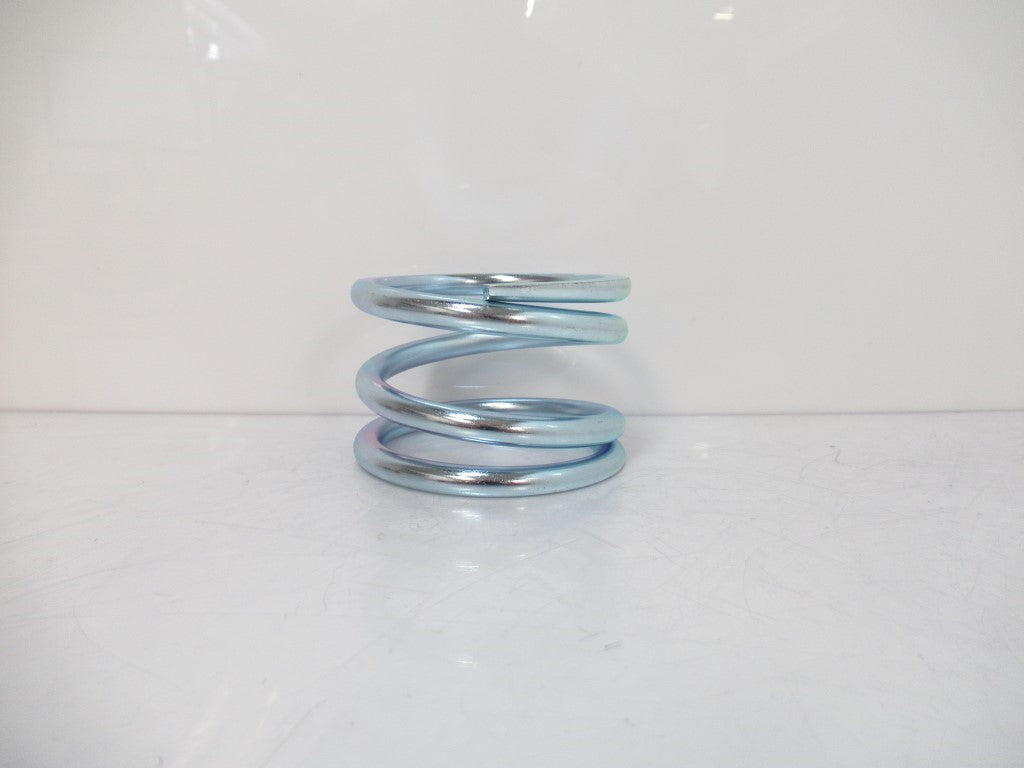

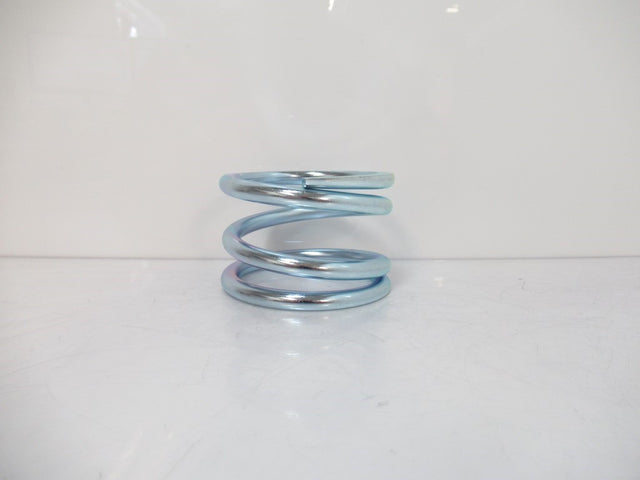

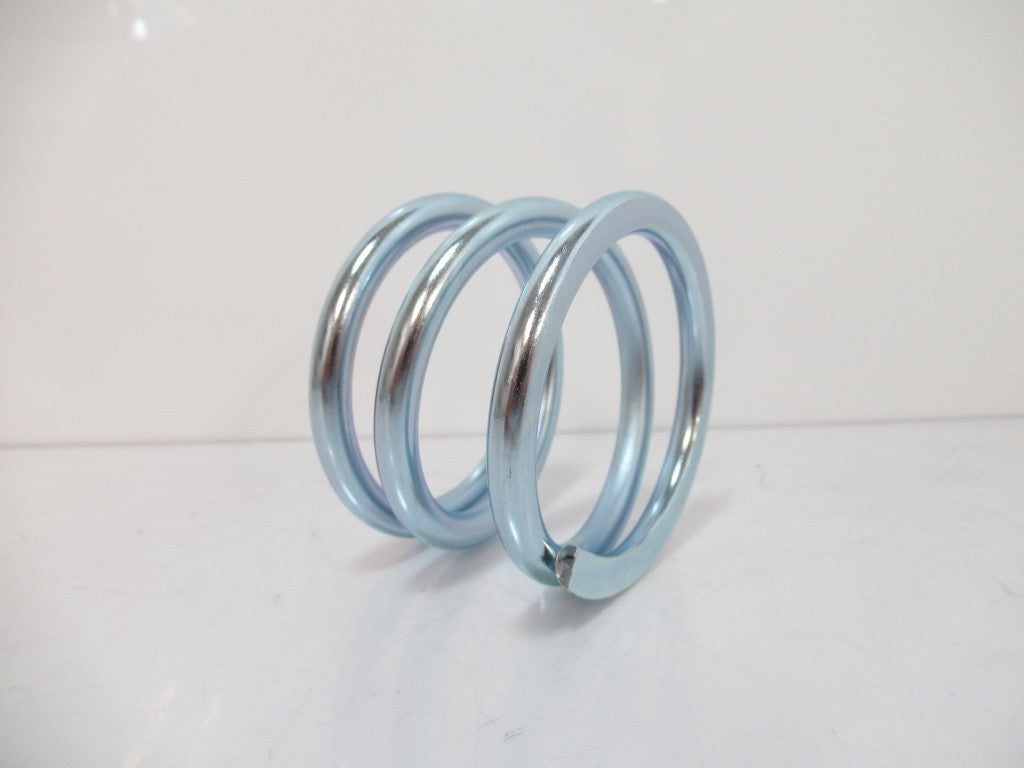

11357 Regular Compression Spring In Steel, 3.25 Total Coils, Outside Dia. 3 in.

11357 Regular Compression Spring In Steel, 3.25 Total Coils, Dia 3 in.

Name: 11357 Regular Compression Spring In Steel, 3.25 Total Coils, Dia 3 in.
Availability: InStock

SKU SPG-0341-E

$50.06 USD - $50.06 USD

$50.06 USD

$50.06 USD - $50.06 USD

$50.06 USD

Availability:

Only 2 left!

Quantity

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Unbranded

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Condition :

Description

Product Information

Regular Compression Spring In Spring Steel With 3.25 Total Coils And Closed & Ground Ends.

This Spring Features An O.D. Of 3 Inch, AN I.D. Of 2.376 Inch, And A Spring Rate Of 561 Inch Pounds.

Display Name: 11357
Ends: Closed & Ground
Finish: Zinc
Free Length: 2 in
Inside Diameter: 2.376 in
Material: Spring Steel
Outside Diameter: 3 in
Part Type: Standard
Rate: 561 lbs/in lbs/in
Solid Length: 1.01 in
Suggested Max Deflection: 0.47 in
Suggested Max Load: 262 lbS
Total Coils: 3.2500
Wire Diameter: 0.312 in

11357 Regular Compression Spring In Steel, 3.25 Total Coils, Dia 3 in.
