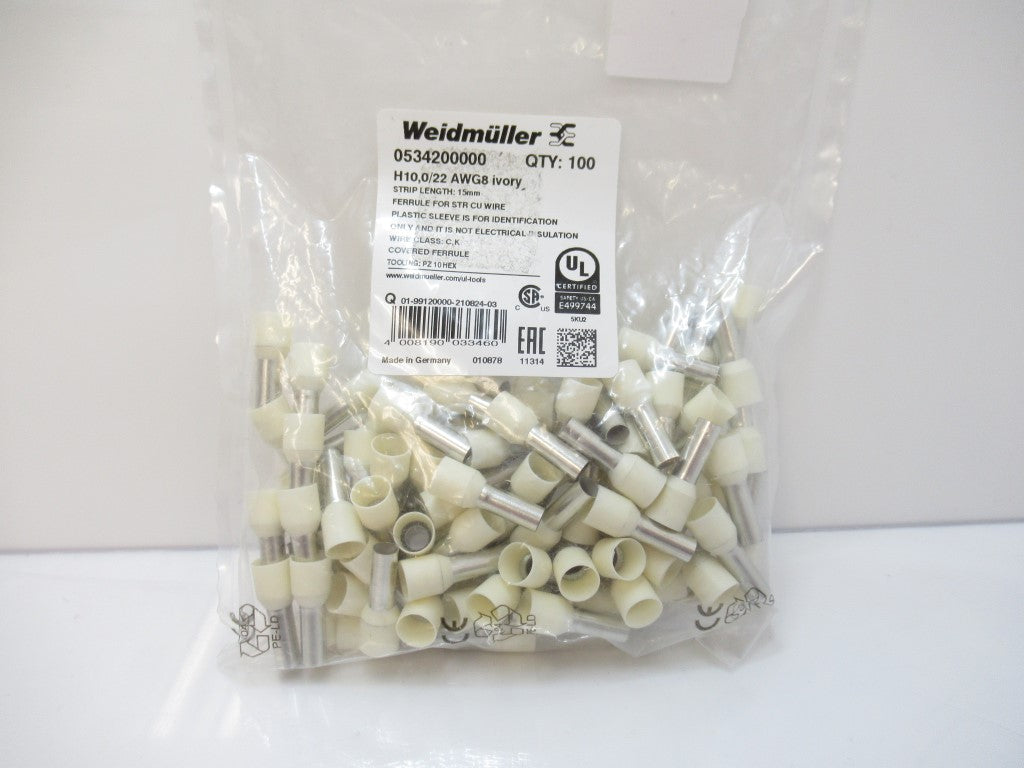

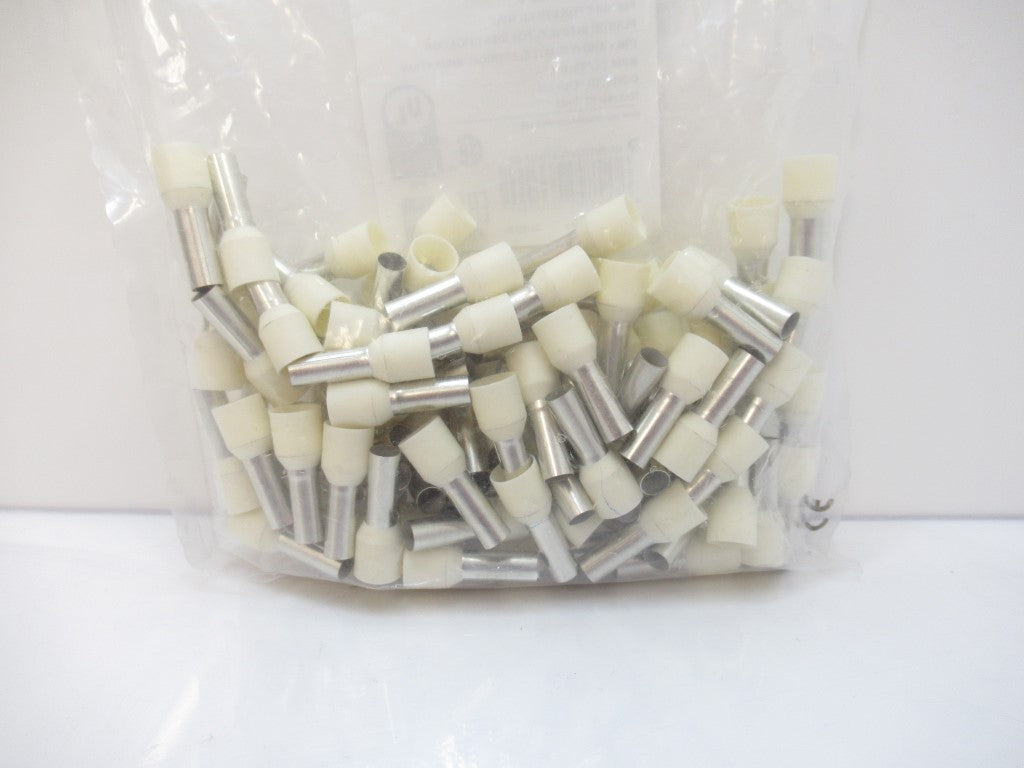

0534200000 Weidmüller H10,0/22 Wire-End Ferrule, Plastic Collar, AWG8

SKU TER-0314-E
Original price $19.24 USD - Original price $19.24 USD
Original price
$19.24 USD
$19.24 USD - $19.24 USD
Current price $19.24 USD
Availability:
Only 3 left!

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product Information

  • Sold per pack of 100
  • Wire end ferrule, Standard, 15mm, 12mm, Ivory
  • Type: H10,0/22 EB
  • Net weight: 0.5 g
  • Version: Standard

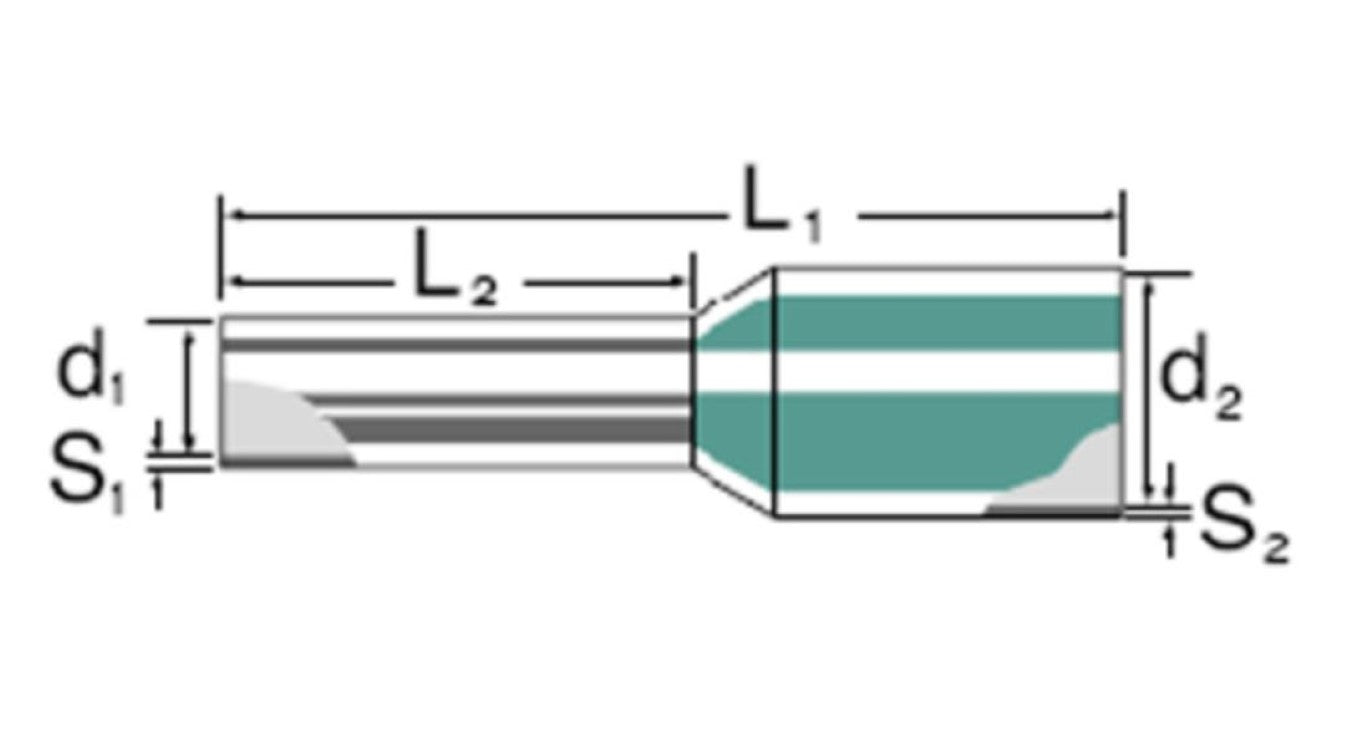

  • Collar diameter (D2): 7.6 mm
  • Conductor cross-section: 10 mm²
  • Contact surface diameter (D1): 4.5 mm
  • Contact surface length (L2): 12 mm
  • L1 in mm: 22 mm
  • Metal sleeve thickness (S1): 0.2 mm
  • Military designation: T 20A 025 A
  • Plastic collar thickness (S2): 0.4 mm
  • Stripping length: 15 mm
  • Wire connection cross-section AWG, max.: AWG 8
