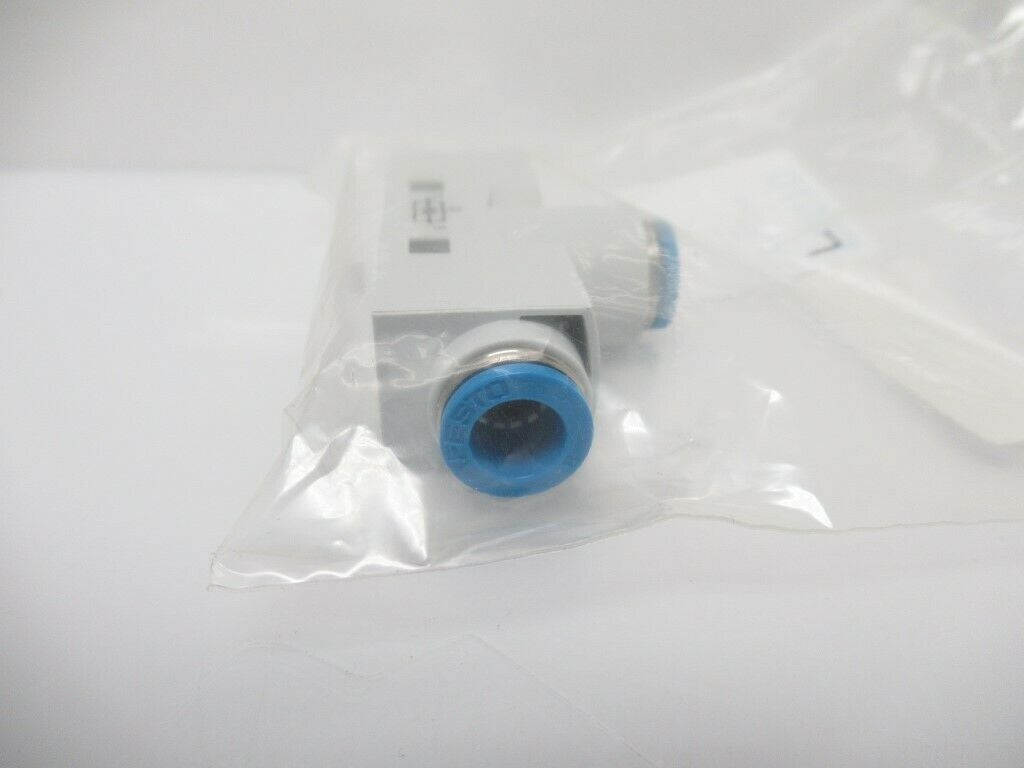

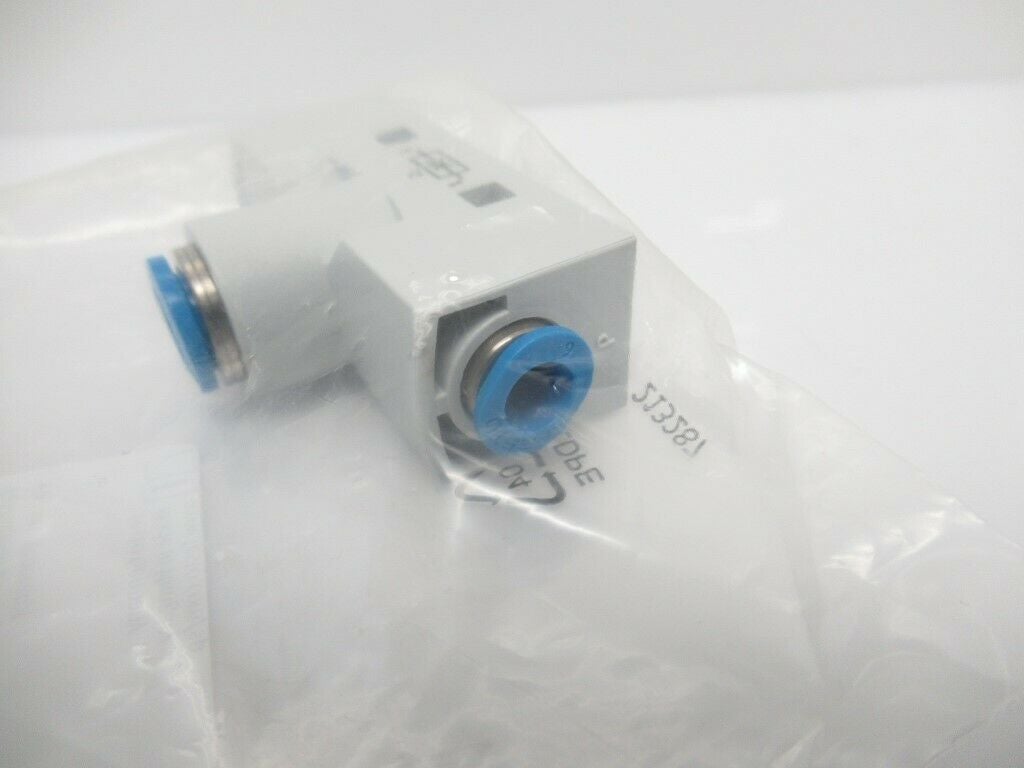

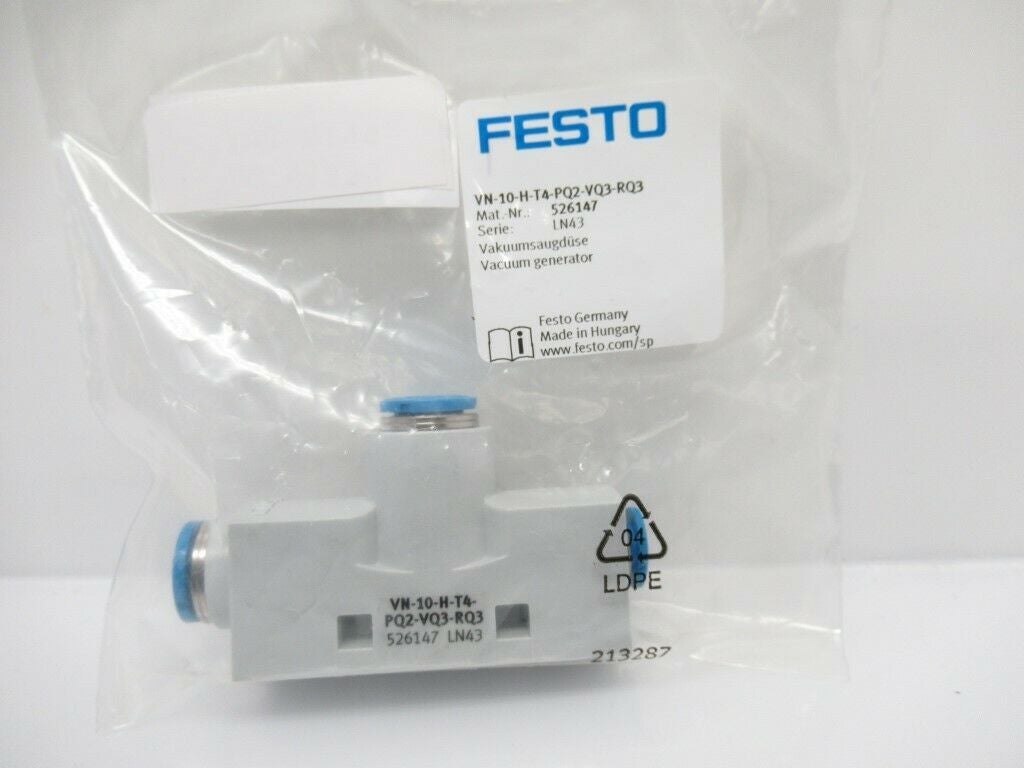

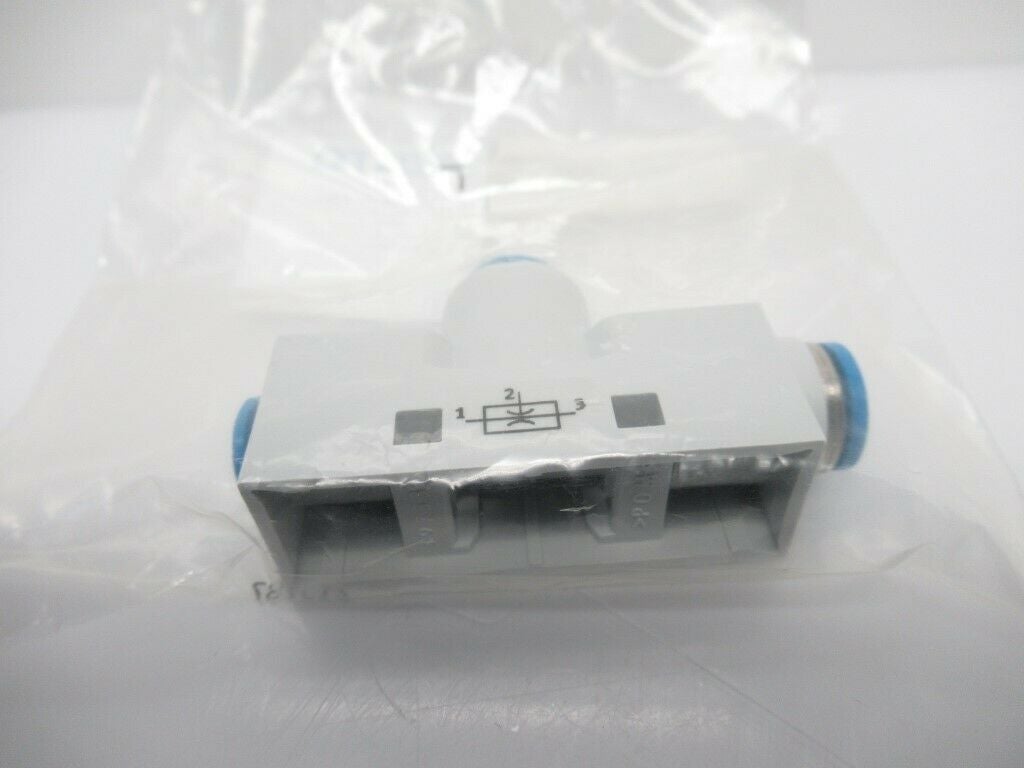

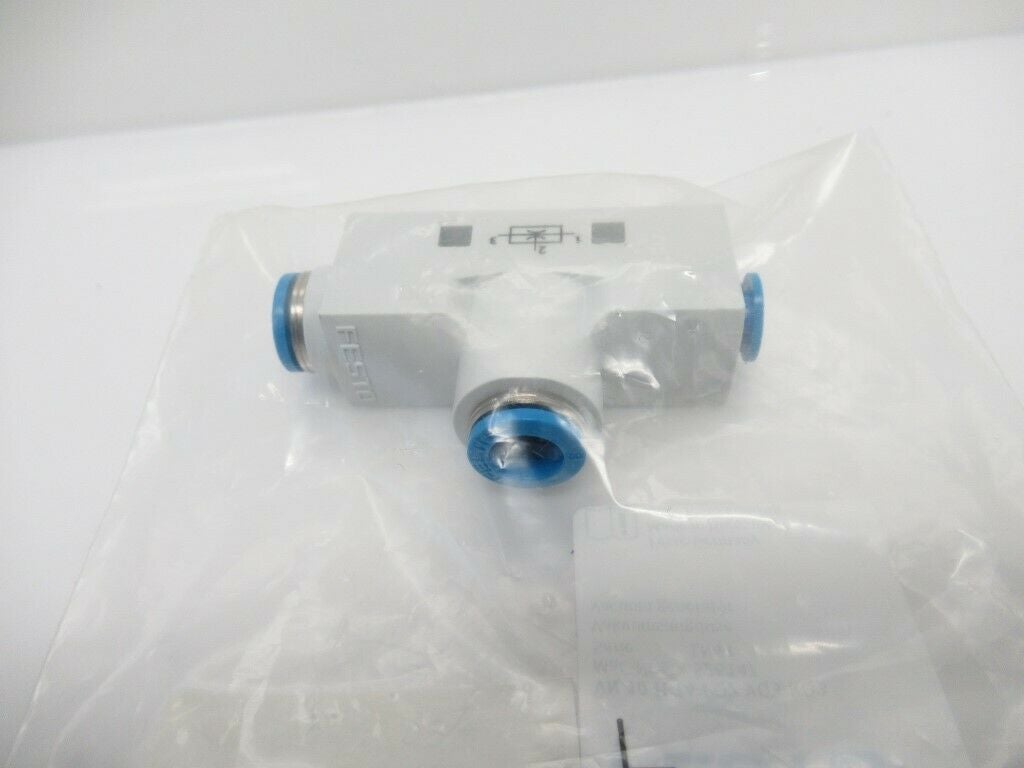

526147 VN-10-H-T4-PQ2-VQ3-RQ3 Festo Vacuum Generator

SKU VAC-0144-E
Sold out
Original price $39.45 USD - Original price $39.45 USD
Original price
$39.45 USD
$39.45 USD - $39.45 USD
Current price $39.45 USD
Availability:
Out of stock

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote
by Festo

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

526147 VN-10-H-T4-PQ2-VQ3-RQ3 VN10HT4PQ2VQ3RQ3

Festo

Vacuum Generator

(New In Bag)

Description

  • Nominal Width Of Laval Nozzle: 0.95 mm
  • Width Dimension: 18 mm
  • Type Code: VN
  • Mounting Position: Any
  • Ejector Characteristics: High Vacuum: Standard
  • Design: T-Shape
  • Operating Pressure: 1 bar ... 8 bar
  • Operating Pressure For Max. Vacuum: 4.5 bar
  • Max. Vacuum: 89 %
  • Nominal Operating Pressure: 6 bar
  • Max. Suction Rate With Respect To Atmosphere: 25 L/min
  • Air Supply Time At Nominal Operating Pressure: 1.1 S
  • Operating Medium: Compressed Air As Per ISO 8573-1:2010 [7:4:4]
  • Information On Operating And Pilot Media: Operation With Oil Lubrication Not Possible
  • Corrosion Resistance Class (CRC): 1 - Low Corrosion Stress
  • Temperature Of Medium: 0 °c ... 60 °C
  • Ambient Temperature: 0 °c ... 60 °C
  • Max. Tightening Torque: 0.5 mm
  • Product Weight: 27 G
  • Type Of Mounting: With Through-Hole; With Accessories
  • Pneumatic Connection 1: QS-6
  • Pneumatic Connection 3: QS-8
  • Vacuum Connection: QS-8
  • Note On Materials: Free Of Copper And PTFE; Rohs-Compliant
