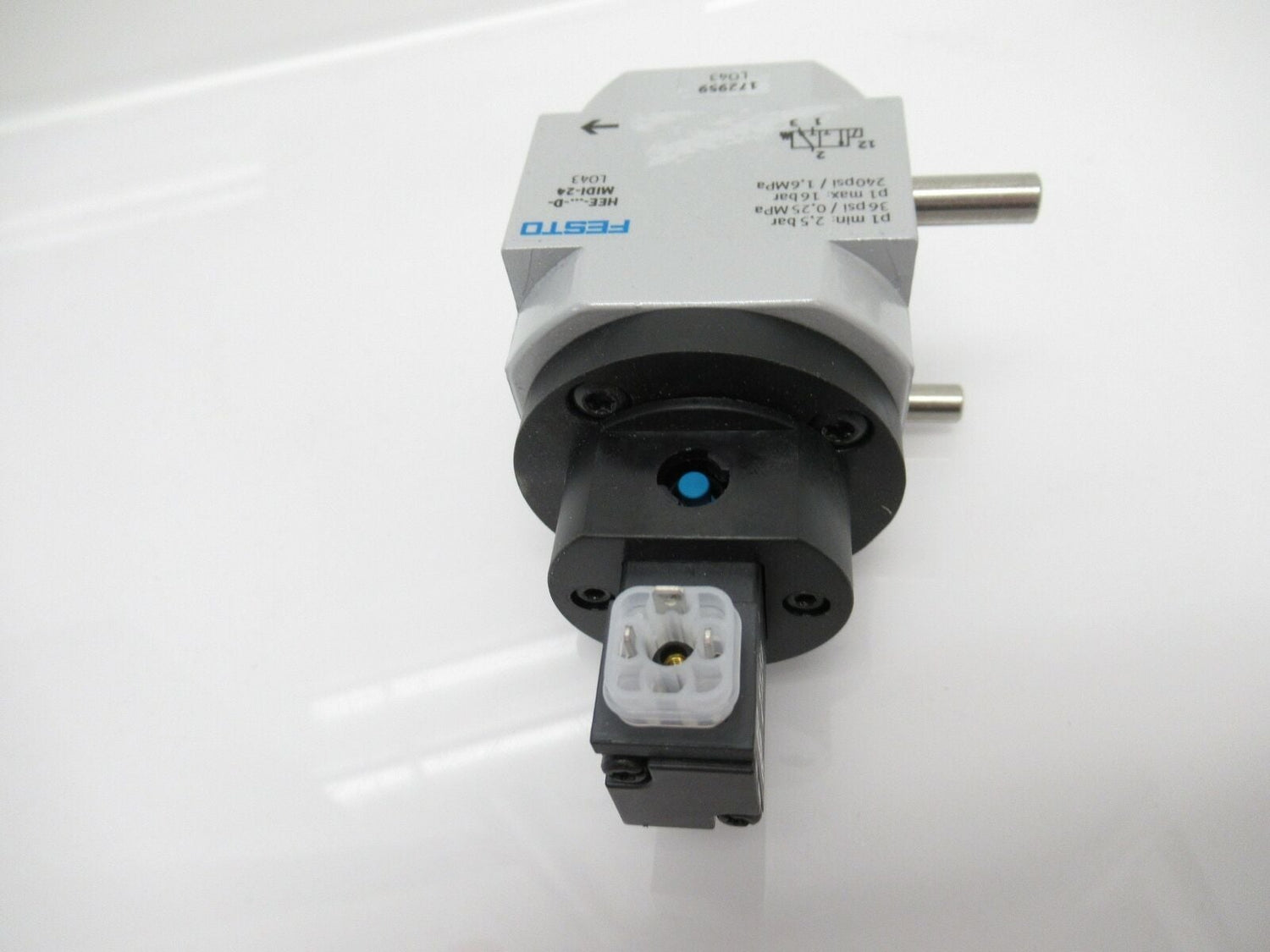

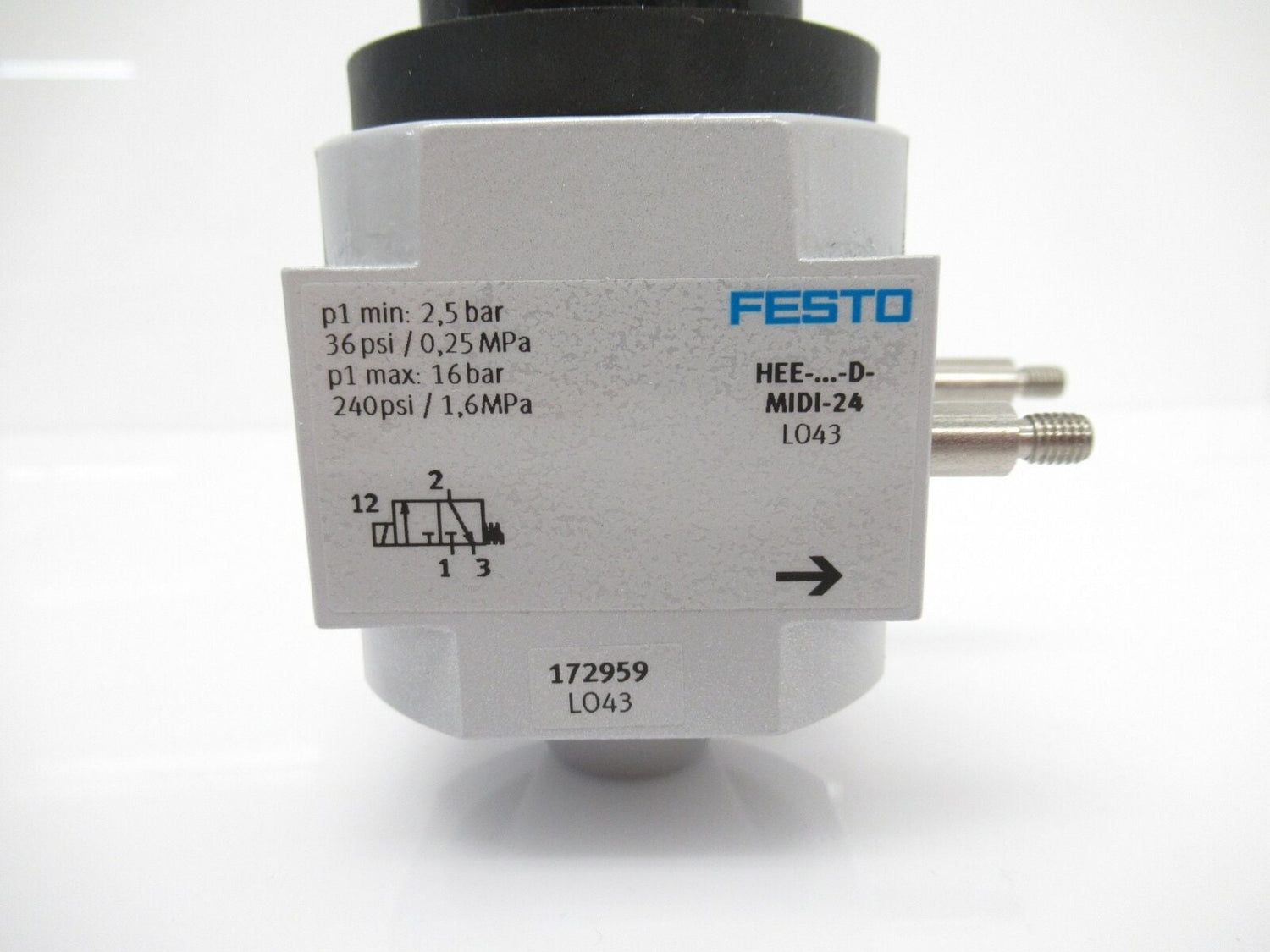

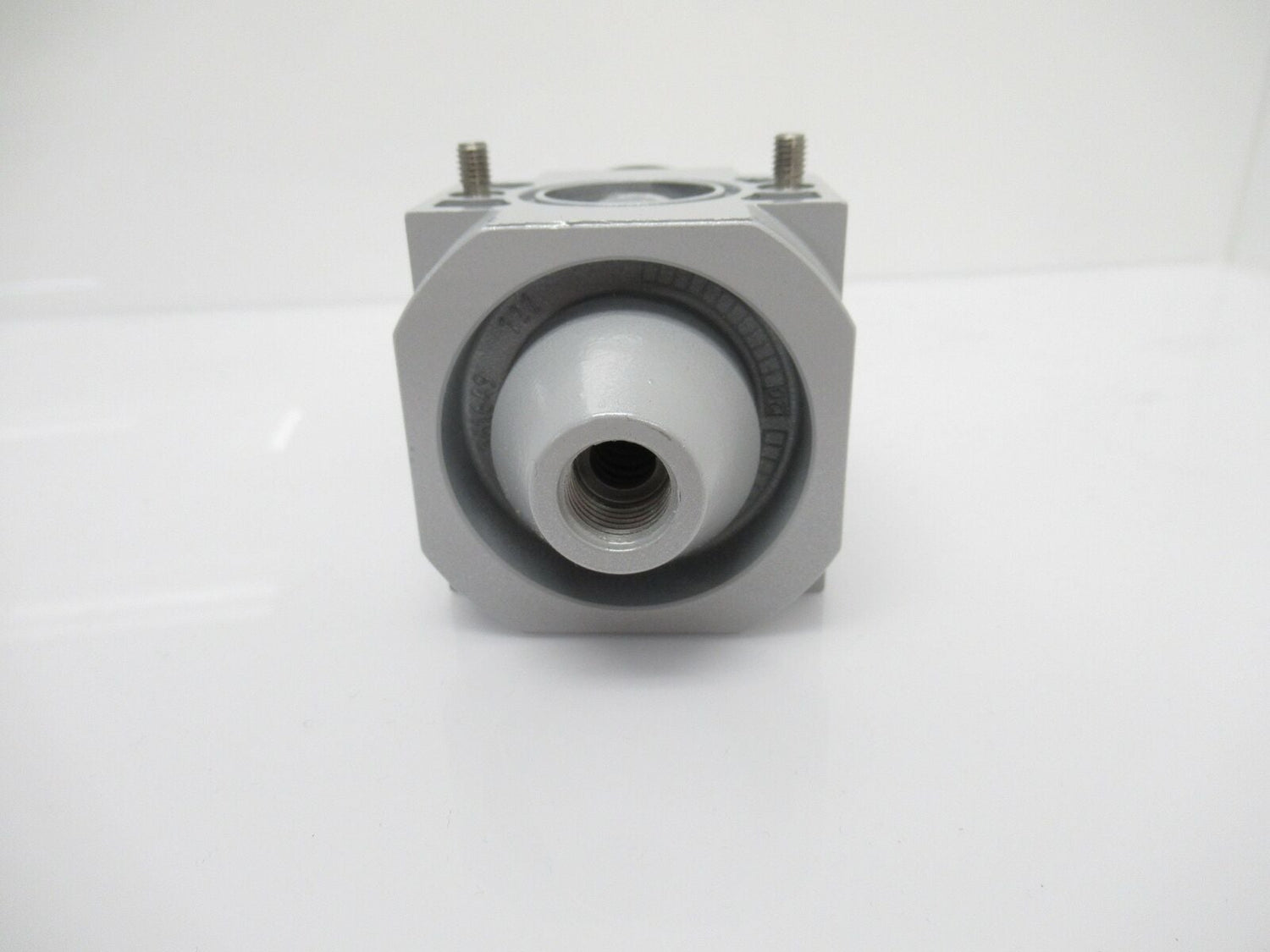

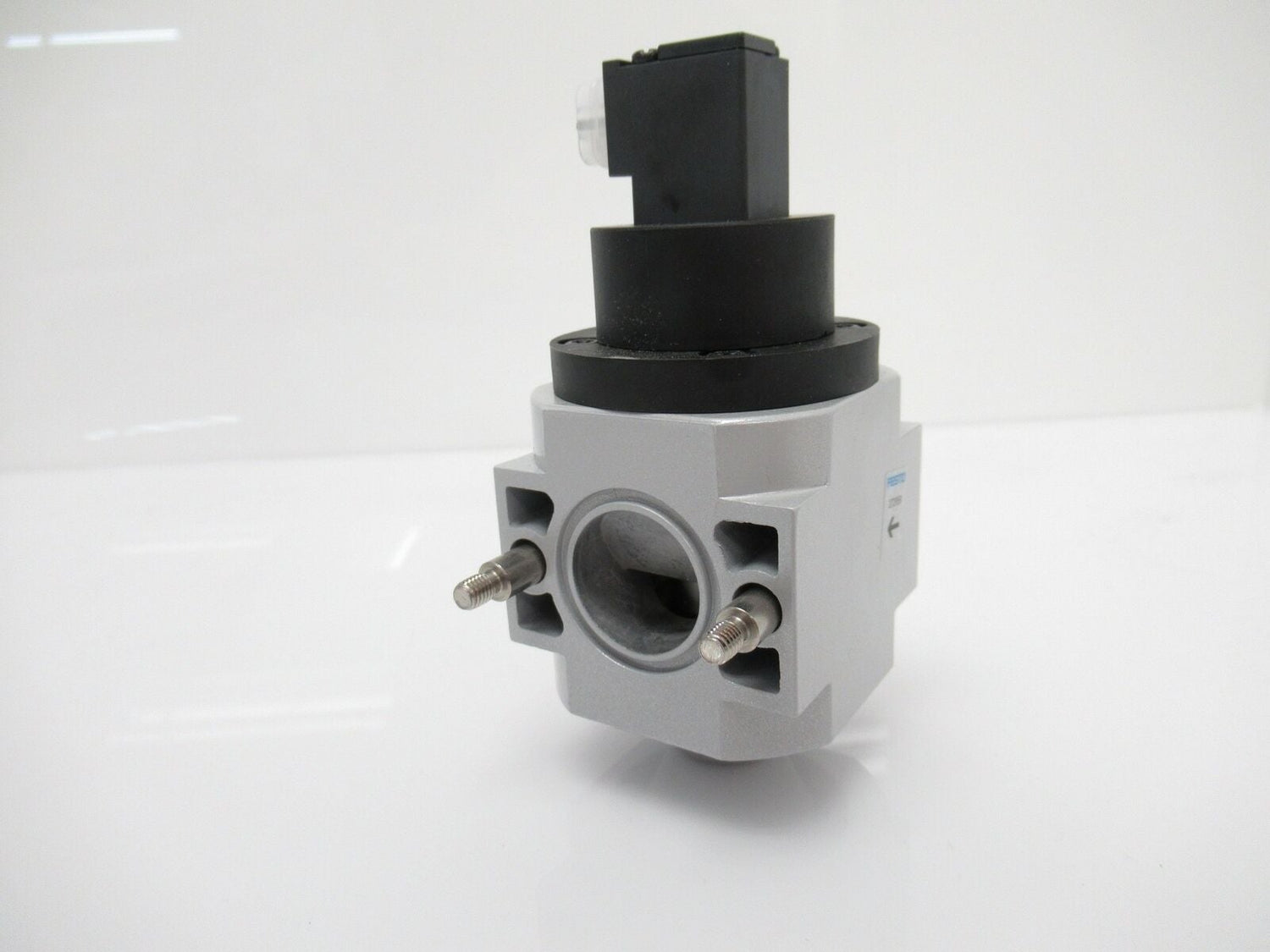

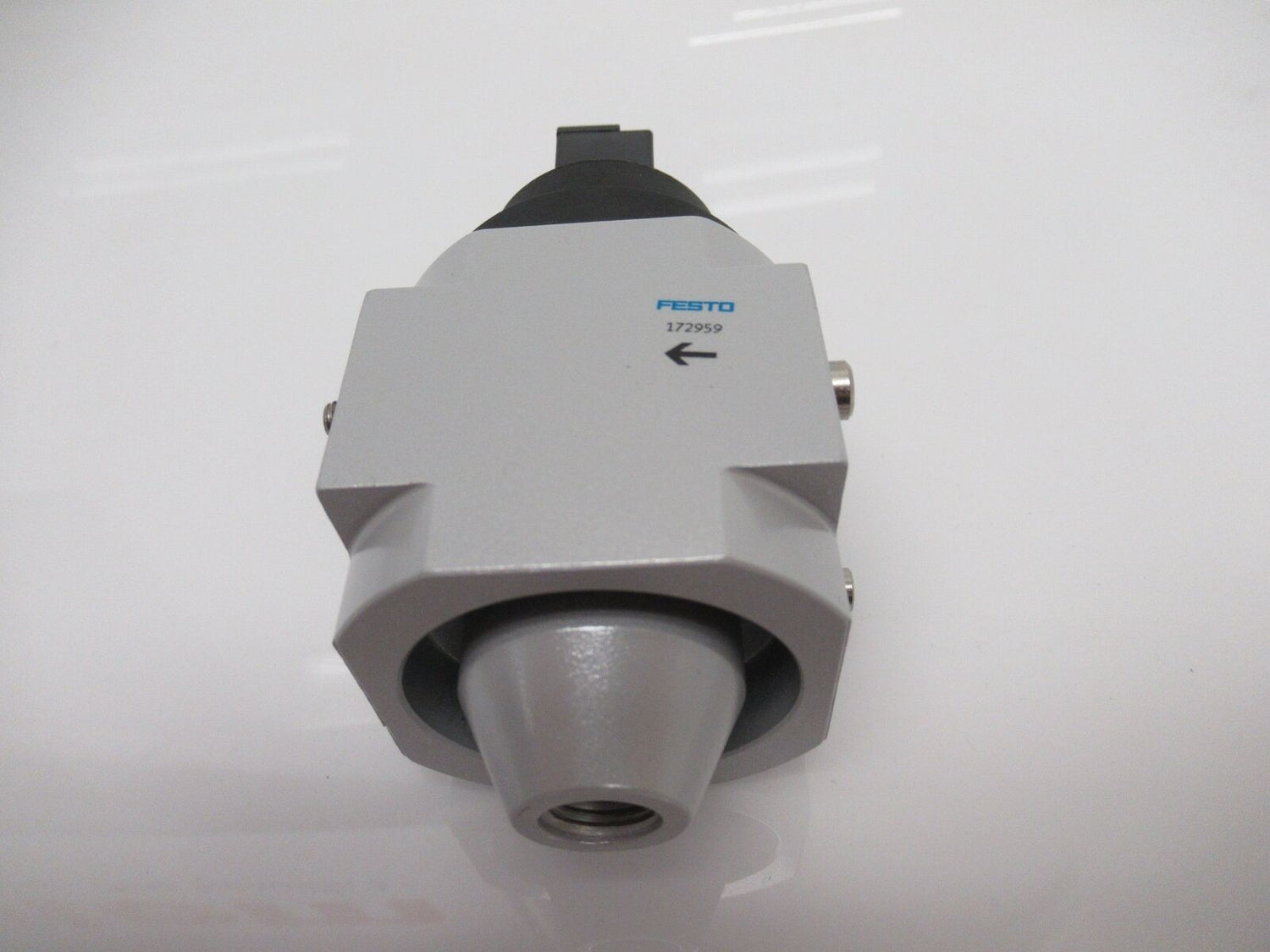

172959 HEE-D-MIDI-24 HEEDMIDI24
Festo
On-Off/Soft-Start Valves, D Series

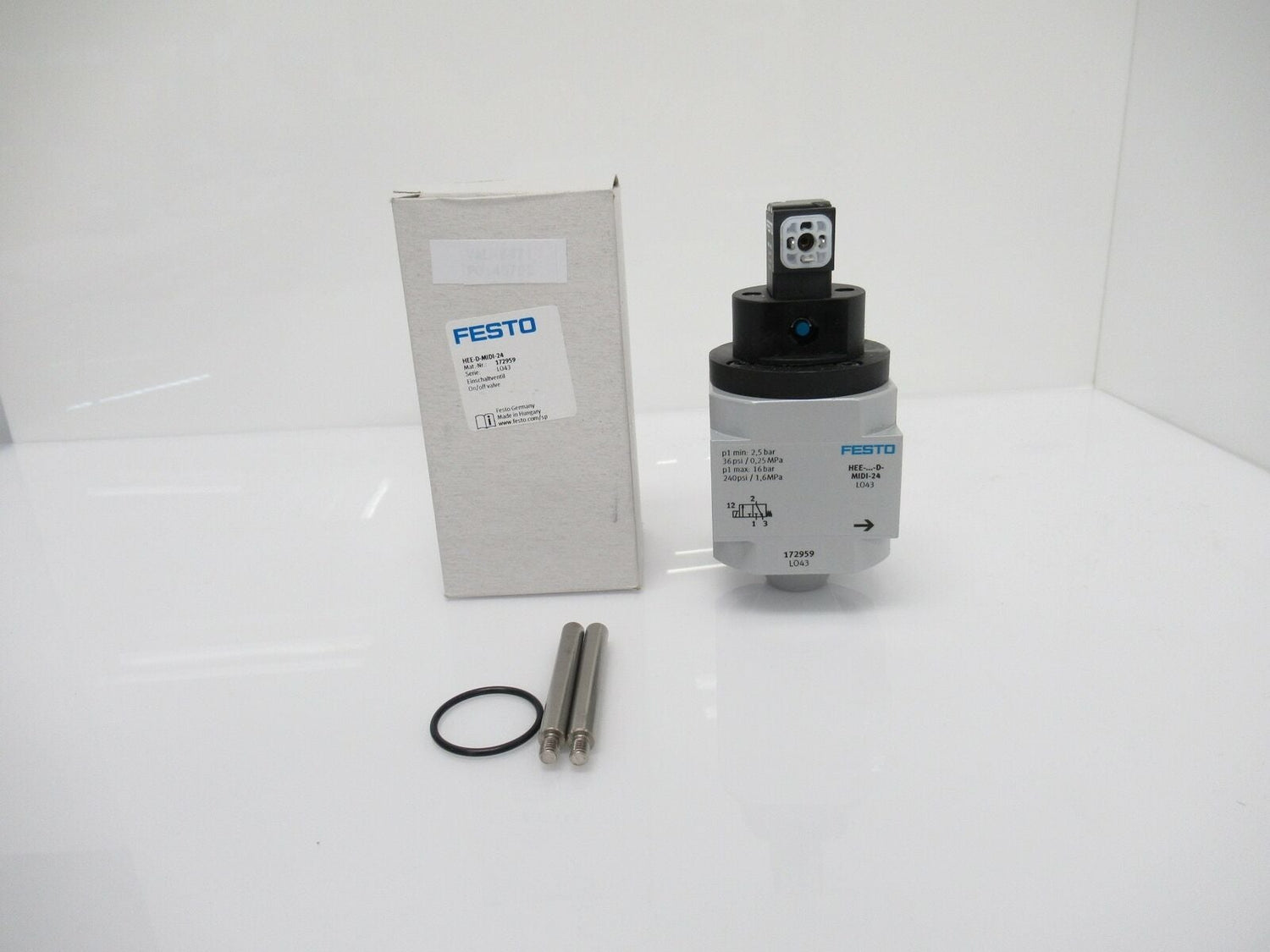

(New In Box)
Data Sheet
- Design Structure: Piston Slide
- Type Of Actuation: Electrical
- Sealing Principle: Soft
- Exhaust-Air Function Not Throttleable
- Manual Override: Detenting
- Type Of Reset: Mechanical Spring
- Type Of Piloting: Piloted
- Valve Function: 3/2 Closed, Monostable
- Operating Pressure: 2.5 ... 16 bar
- Duty Cycle: 100 %

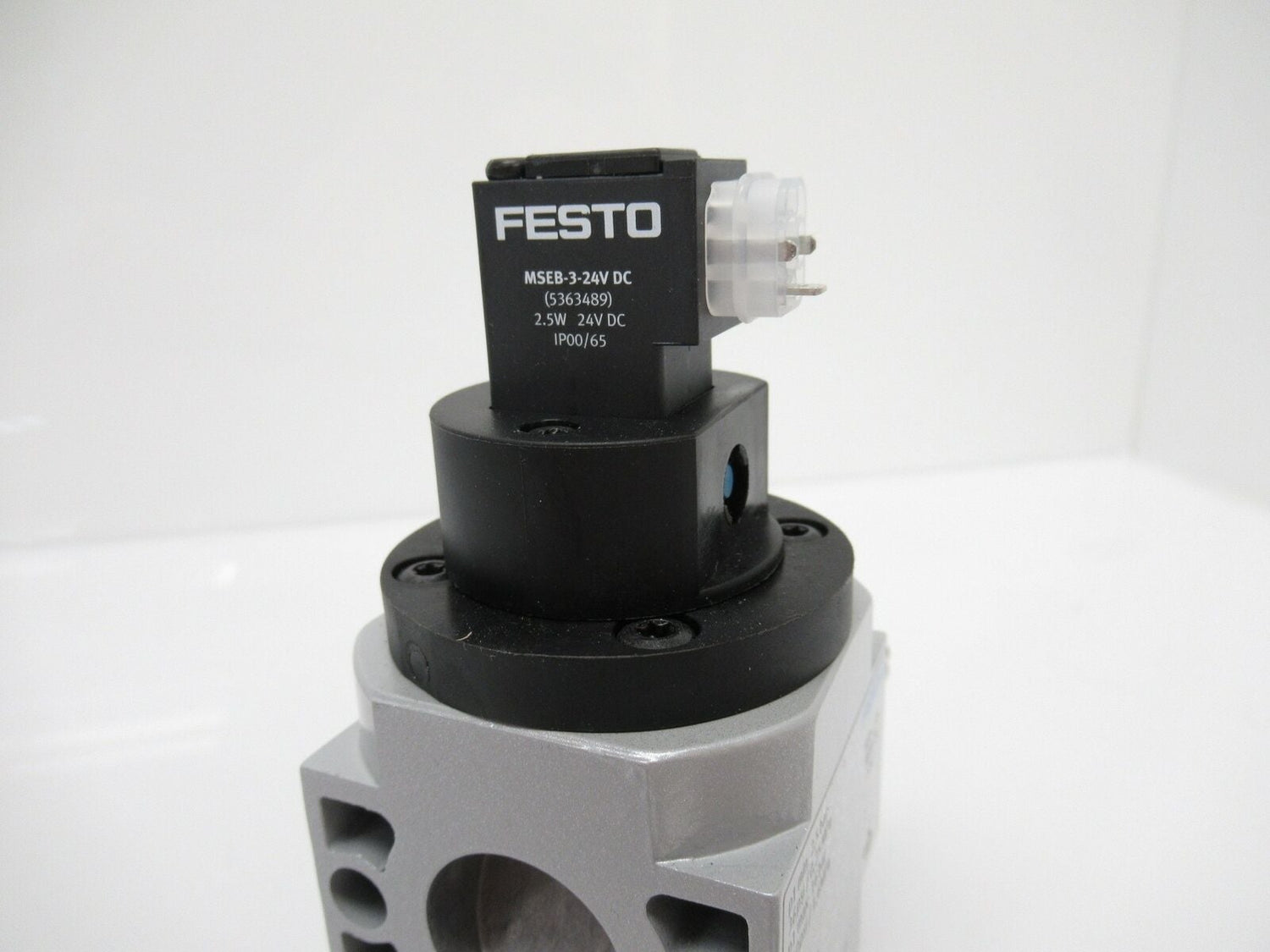

- Characteristic Coil Data: 24 V DC: 3 W
- Permissible Voltage Fluctuation: +/- 10 %
- Operating Medium: Compressed Air In Accordance With ISO8573-1:2010 [7:4:4] Inert Gases
- Note On Operating And Pilot Medium: Lubricated Operation Possible (Subsequently Required For Further Operation)
- Corrosion Resistance Classification CRC: 2 - Moderate Corrosion Stress
- Materials Note: Conforms To RoHS
- Medium Temperature: -10 ... 60 °C
- Ambient Temperature: -10 ... 60 °C
- Maritime Classification: See Certificate
- Mounting Type: Line Installation With Accessories
- Assembly Position: Any
- Flow Direction: Non Reversible
- Product Weight: 500 G
- Pneumatic Connection, Port 3: G1/4
- Air Purity Class At Output: Compressed Air In Accordance With Iso8573-1:2010 [7:4:4] Inert Gases
- Electrical Connection: Plug Pattern Type C To En 175301-803, Plug, Per Din En 175301-803
- Material Seals: NBR
- Material Housing: Aluminium Die Cast
