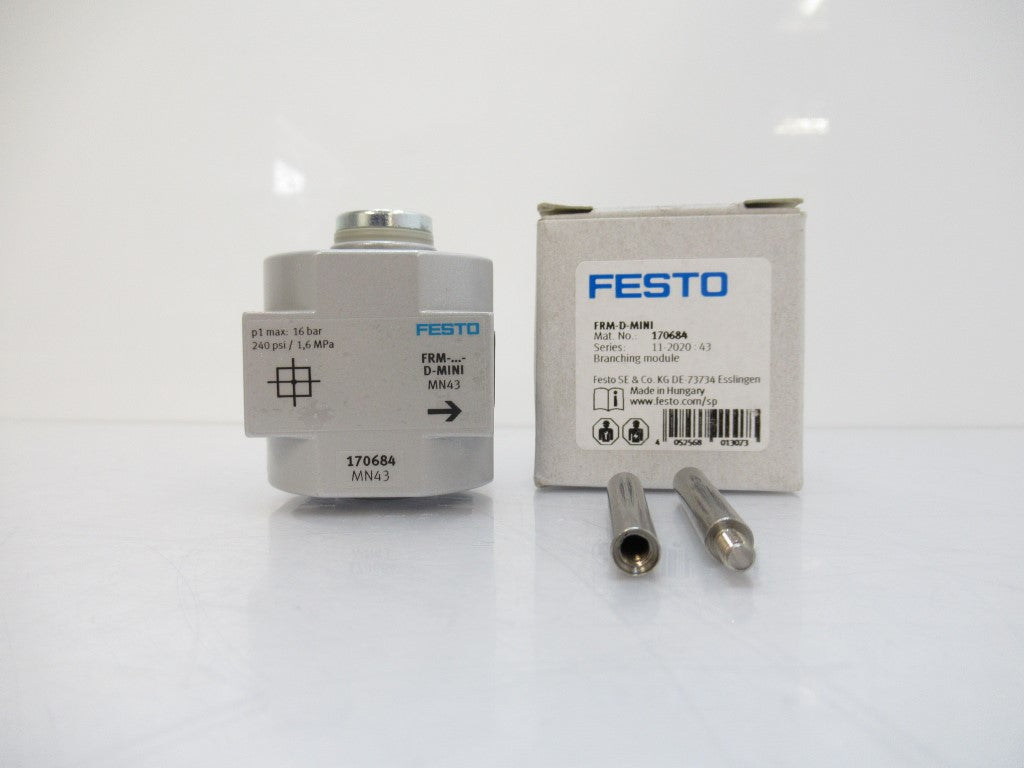

Festo FRM-D-MINI 170684 Branching Module

Festo FRM-D-MINI 170684 Branching Module

SKU VAL-0132-E
Sold out
$37.81 USD - $37.81 USD
$37.81 USD
$37.81 USD - $37.81 USD
$37.81 USD
Availability:
Out of stock

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote
by FESTO

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Product Information

  • FRMDMINI
  • Design Structure: Branching Module
  • Operating Pressure: 0 ... 16 bar
  • Standard Nominal Flow Rate In Main Flow Direction 1->2: 3,300 L/Min
  • Maritime Classification: See Certificate
  • Operating Medium: Compressed Air In Accordance With ISO8573-1:2010 [7:-:-] Inert Gases
  • Corrosion Resistance Classification CRC: 2 - Moderate Corrosion Stress
  • Storage Temperature: -10 ... 60 °C
  • Air Purity Class At Output: Compressed Air In Accordance With ISO8573-1:2010 [7:-:-] Inert Gases
  • Medium Temperature: -10 ... 60 °C
  • Ambient Temperature: -10 ... 60 °C
  • Product Weight: 127 G
  • Pneumatic Connection, Port 3: G1/4
  • Pneumatic Connection, Port 4: G1/4
  • Materials Note: Free Of Copper And PTFE, Conforms To RoHS
  • Material Housing: Zinc Die-Casting
