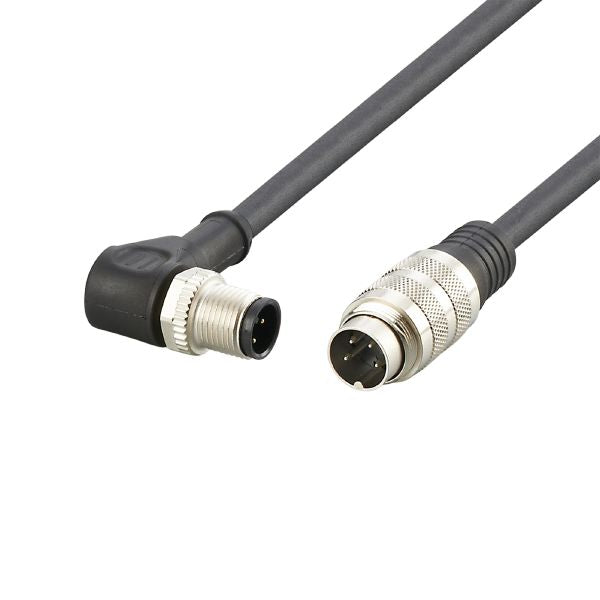

Ifm E3M161 Connection Cable
Country Of Origin:
| System | screened cable; Drag chain suitability |
|---|---|
| Design | for 3D Smart sensor mobile with analog video output PAL |
| Operating voltage [V] | < 25 AC / < 60 DC |
|---|
| Ambient temperature [°C] | -40...80 |
|---|---|
| Ambient temperature (moving) [°C] | -10...70 |
| Protection | IP 67; IP 69K |
| Weight [g] | 92.2 | ||
|---|---|---|---|
| Material | PUR black; sealing ring: FKM; contact pins: CuSn6 nickel-plated and tin-plated | ||
| Molded-body material | PUR | ||
| Material nut | stainless steel (1.4305 / 303) | ||
| Drag chain suitability | yes | ||
| Drag chain suitability |
|
| Pack quantity | 1 pcs. |
|---|
| Connector: 1 x M12, angled; coding: A; Moulded body: PUR; Locking: stainless steel (1.4305 / 303); Shielded connection cable: shield connected |
| Connection | Cable: 1 m, PUR, black, Ø 6 mm, screened; 2 x 0.25 mm² |
|---|
| Connector: 1 x M16, straight; coding: A; Moulded body: PUR; Locking: stainless steel (1.4305 / 303); Shielded connection cable: shield connected |
