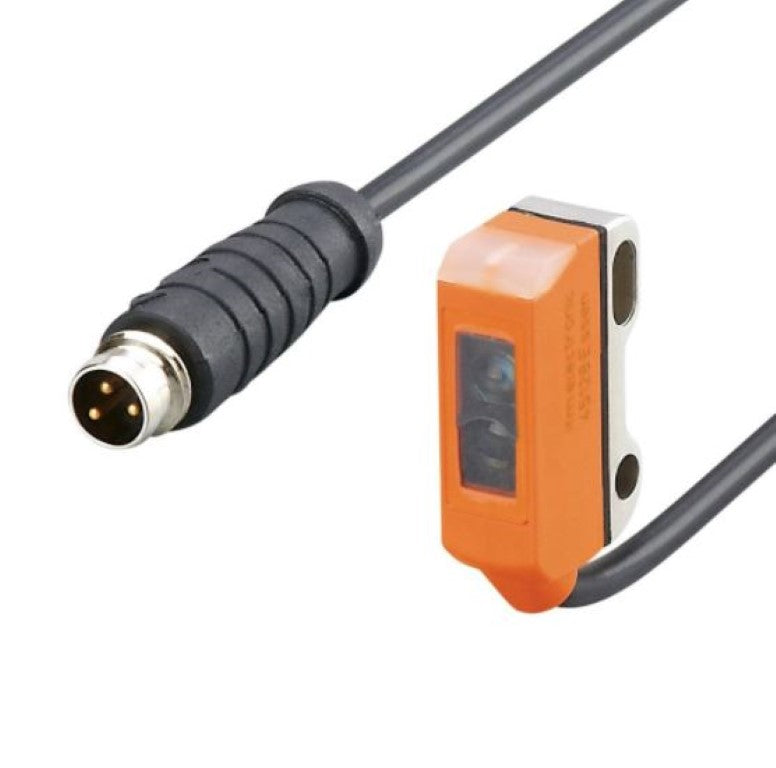

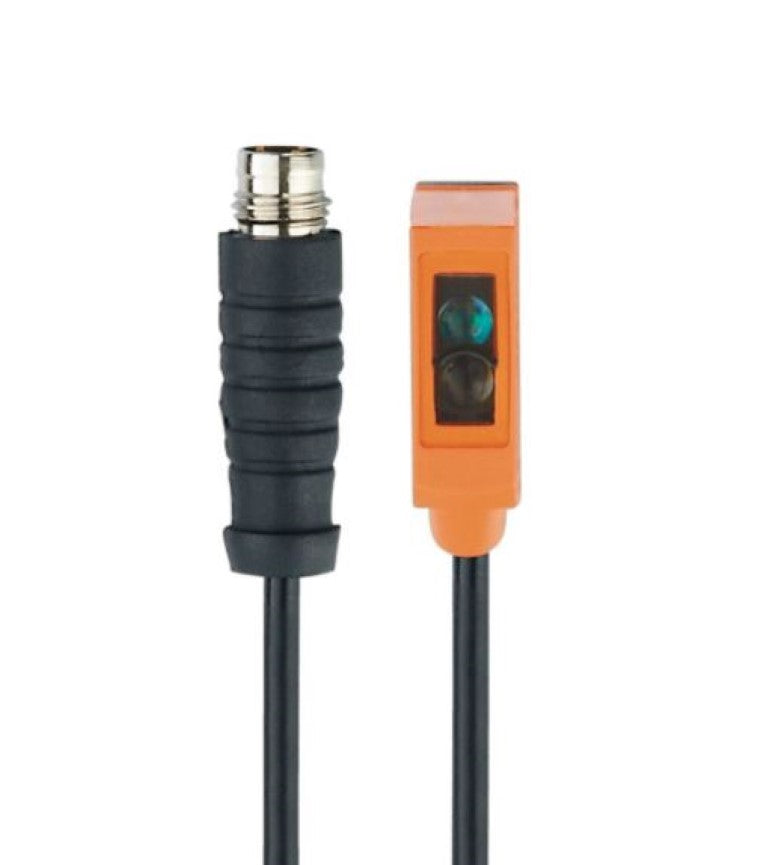

O8P202 O8P-DPKG/IO-Link/0,30M/AS/3P Ifm Rectangular Retro-Reflective Sensor

O8P202 Ifm Electronic Rectangular Retro-Reflective Sensor

SKU SEN-1760-E
$83.75 USD - $83.75 USD
$83.75 USD
$83.75 USD - $83.75 USD
$83.75 USD
Availability:
Only 2 left!

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote
by IFM ELECTRONIC

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Product Information

  • O8P-DPKG/IO-Link/0,30M/AS/3P
  • O8PDPKGIOLink030MAS3P
  • Type Of Light: Red Light
  • Communication Interface: IO-Link
  • Housing: Rectangular
  • Dimensions [mm]: 28.1 x 8.1 x 14.4
  • Special Feature: Polarisation Filter
  • Function Principle: Retro-Reflective Sensor
  • Operating Voltage [V]: 10...30 DC
  • Current Consumption [mA]: 20; ((24 V))
  • Protection Class: III
  • Reverse Polarity Protection: Yes
  • Type Of Light: Red Light
  • WaveLength [nm]: 633
  • Electrical Design: PNP
  • Output Function: Dark-On Mode
  • Max. Voltage Drop Switching Output DC [V]: 2.5
  • Permanent Current Rating Of Switching Output DC [mA]: 100
  • Switching Frequency DC [Hz]: 1000
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Pulsed
