MurrElektronik 3000-33113-3020075 Miro Safe+E 24
Country Of Origin: Germany
Product Information

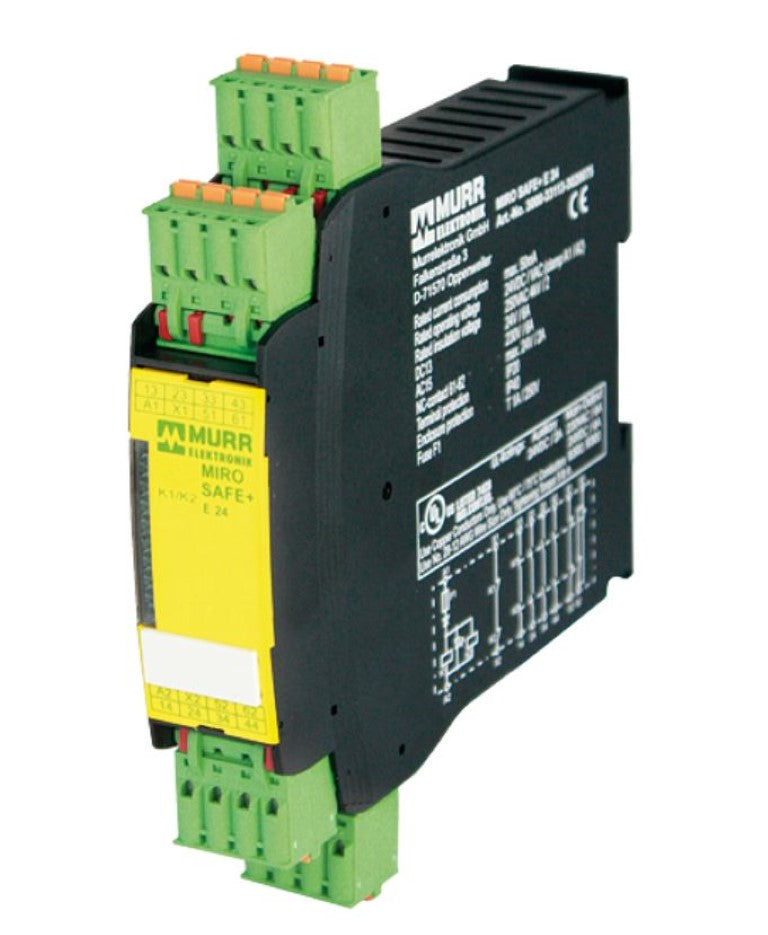

Miro Safe + E 24 24V AC/DC - 4 N/O Contact / 2 N/C Contact
- 6 A
- Expansion Modules
General Data
- Mech./ Elect. Life: 10 000 000 Switching Cycles/Load Dependent
- Connection: Spring Clamp Plug-In Terminals
- Mounting Method Din-Rail Mountable (EN 60715)

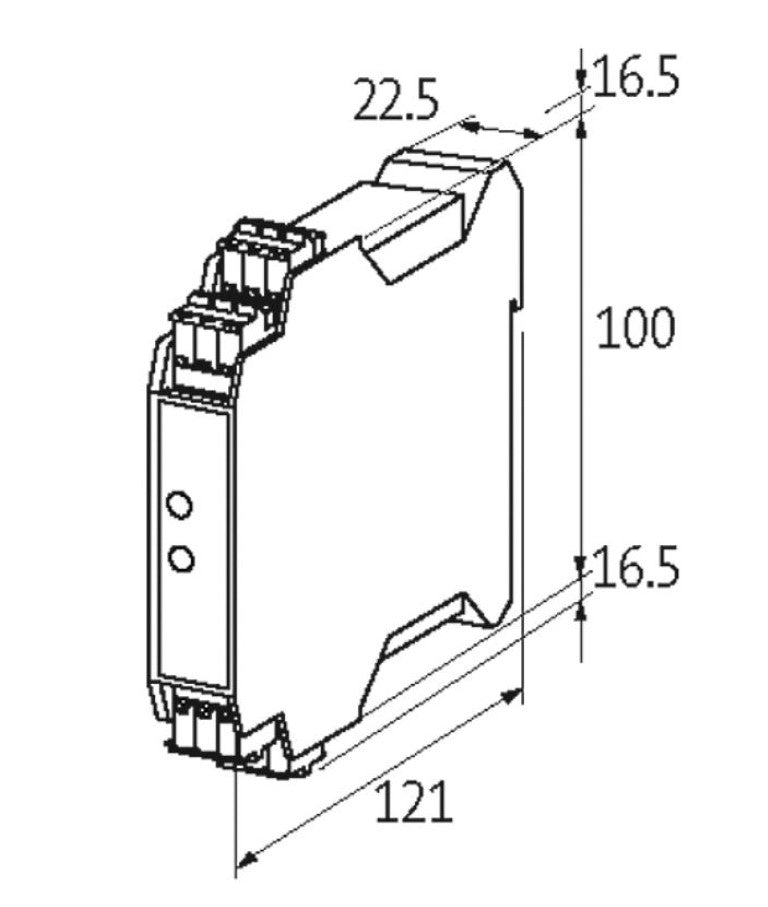

- Dimensions H×W×D: 100×22.5×121 mm
- Temperature Range: -25...+45 °C (Storage Temperature -40...+85 °C)
Output
- Switching Voltage: Max. 250 V AC/DC
- Switching Current Per Output: Max. 6 A

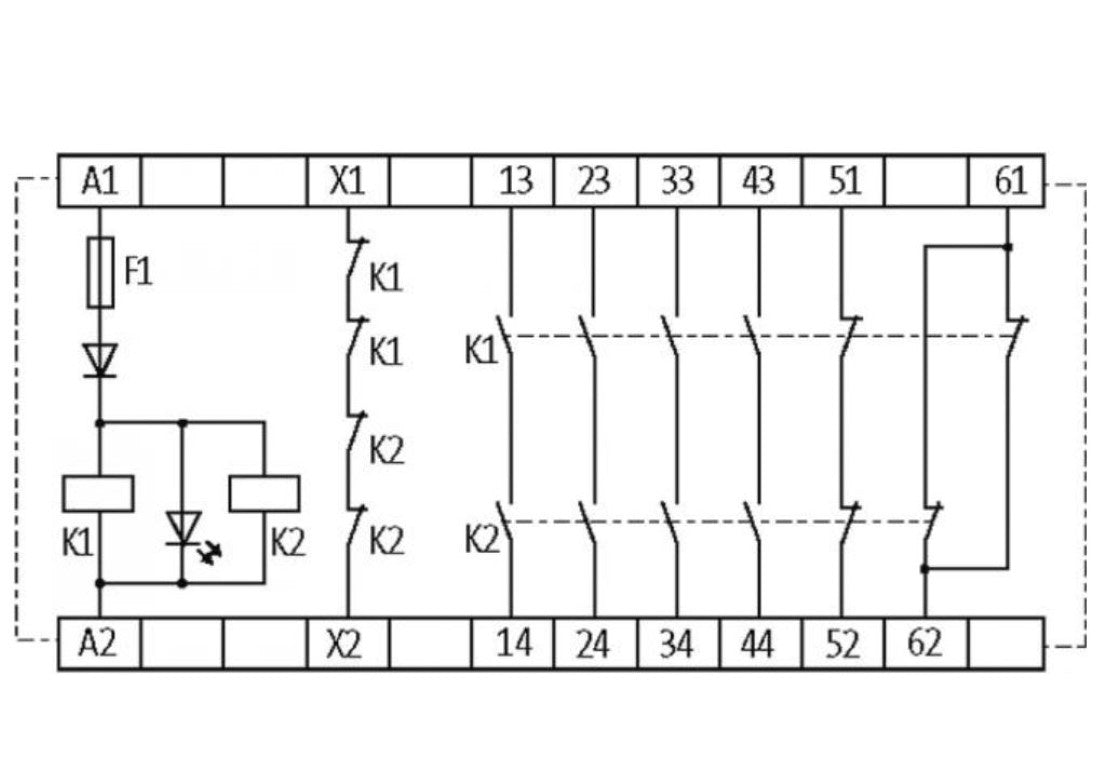

- No. Of Auxiliary Contacts: 2 - (51-52); (61-62)
- No. Of Alarm Outputs: 0
- No. Of Contacts: 4 - (13-14); (23-24); (33-34); (43-44)
- Contact Material: Ag Sn O, Self Cleaning, Positively Driven
Input
- Input Voltage: 24 V DC (-15 +20%), 24 V AC (-15 +10%)
- Input Current: Max. 1.0 VA
Utilization Category
- Safety Contacts (Stop 0): Max. 250 V AC/6 A; Min. 10 V AC/10 mA (Resist./Ind.), At Suitable Suppression
- AC-15: 6 A (230 V AC)
- DC-13: 6 A (24 V DC)
Safety Indicators
- PL: Up To E
- Category: Up To 4
- Sil: Up To 3
- Service Life: 20 Years
-
