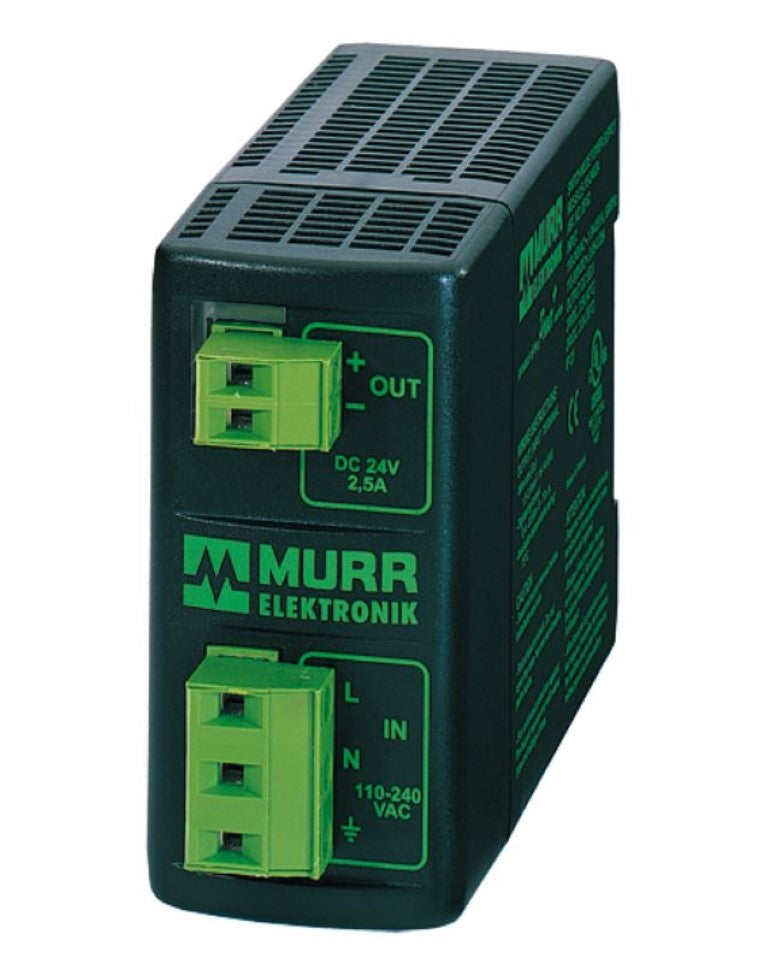

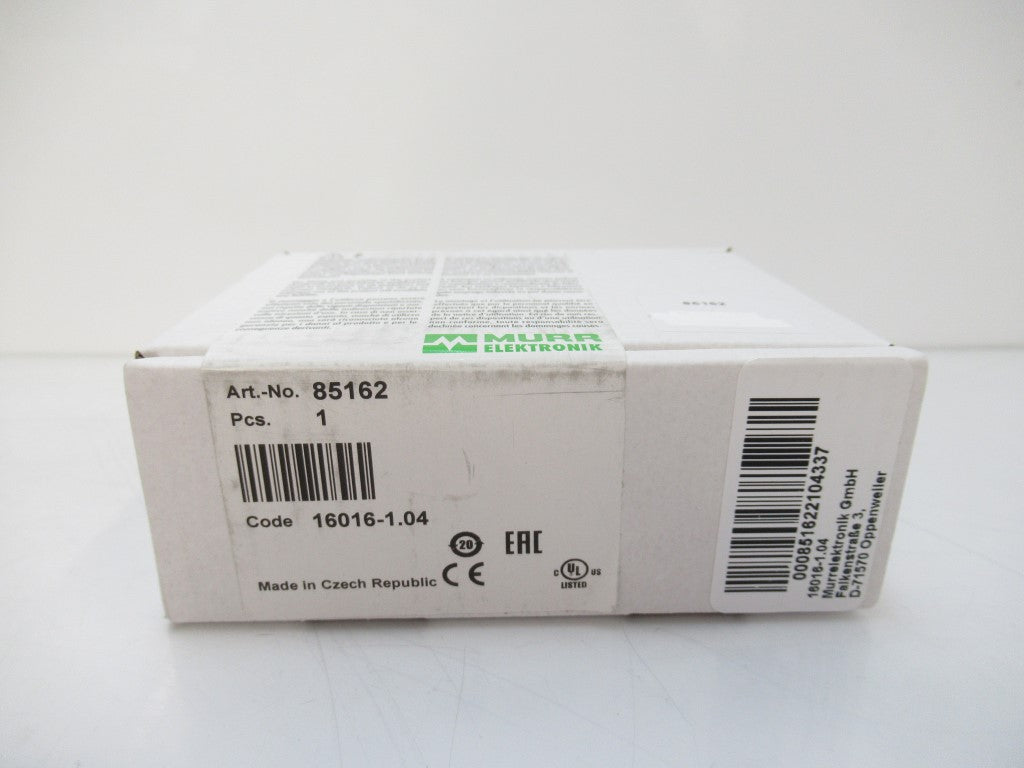

MurrElektronik 85162 Power Supply 1 Phase, DIN-Rail Mountable TH35

SKU POW-0054-E
Original price $51.34 USD - Original price $51.34 USD
Original price
$51.34 USD
$51.34 USD - $51.34 USD
Current price $51.34 USD
Availability:
Only 3 left!

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Product Information

GENERAL DATA
Standards IEC 61010-2-201, EN 61204-3, EN 55022 B, EN 61000-3-2
Relative humidity 5...95%, no condensation
Efficiency 85% (110 V AC); 87% (230 V AC)
Dimensions H×W×D 76×38×108 mm
Mounting method DIN-rail mountable TH35 (EN 60715)
Temperature range -25...+40 °C, ...+50 °C derating (storage temperature -25...+85 °C)
OUTPUT
Output voltage 24 V DC (SELV), ±1%; 22...28 V adjustable
Output current 2.5 A (+40 °C); 2.0 A (+55 °C)
Mains failure bridging time min. 15 ms (110 V AC); min. 80 ms (230 V AC)
Ripple max. 50 mV eff/rms
Spikes max. 120 mV ss/pp
Unit protection short-circuit and overload protected
LED display LED (green) for output voltage
Parallel usage/serial usage max. 5 units/max. 2 units
INPUT
Input voltage 95...265 V AC; 110...300 V DC
Input current 1.04 A (110 V AC); 0.63 A (230 V AC)
Inrush current after 1 ms max. 20 A
Primary fusing external max. 10 A
Frequency 50...60 Hz
