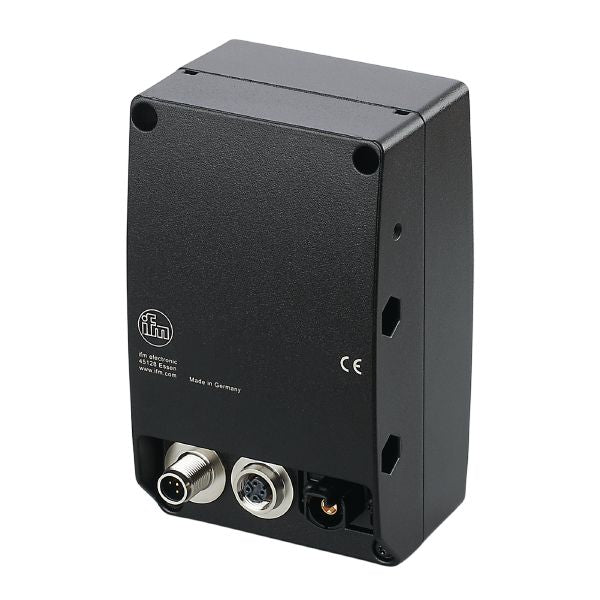

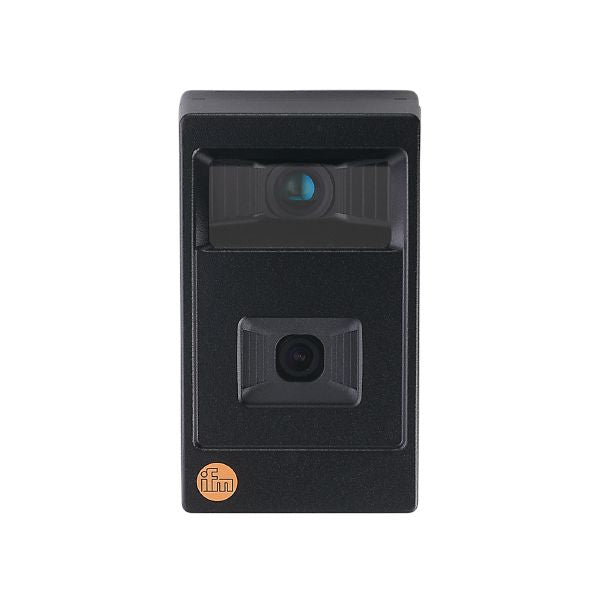

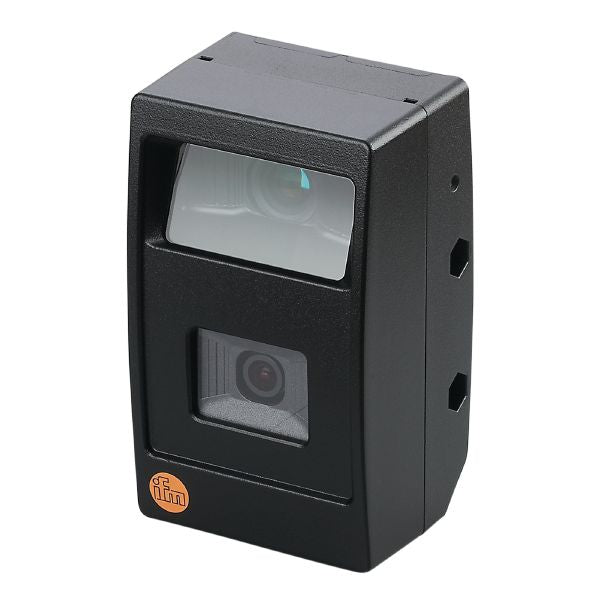

Ifm O3M261 3D Sensor For Mobile Applications
Country Of Origin:
| Type of light | Infrared light |
|---|---|
| Image resolution [px] | 640 x 480 |
| Image resolution 3D [px] | 64 x 16 |
| Angle of aperture [°] | 120 x 90 |
| Angle of aperture 3D [°] | 95 x 32 |
| Image repetition frequency [Hz] | 25 |
| Image repetition frequency 3D [Hz] | 25 / 33 / 50 |
| Housing | rectangular |
| Application | output of 3D image data; output of 2D image data |
|---|
| Operating voltage [V] | 9...32 DC |
|---|---|
| Current consumption [mA] | < 600 |
| Power consumption [W] | 4.6 |
| Protection class | III |
| Type of light | Infrared light |
| Image sensor | PMD 3D ToF-Chip / 2D Chip |
| Video output | PAL (720x576) |
|---|
| Image resolution [px] | 640 x 480 |
|---|---|
| Image resolution 3D [px] | 64 x 16 |
| Angle of aperture [°] | 120 x 90 |
| Angle of aperture 3D [°] | 95 x 32 |
| Image repetition frequency [Hz] | 25 |
| Image repetition frequency 3D [Hz] | 25 / 33 / 50 |
| Parameter setting options | via PC with ifm Vision Assistant |
|---|
| Communication interface | CAN; Ethernet | |
|---|---|---|
| Number of CAN interfaces | 1 | |
| Number of Ethernet interfaces | 1 | |
| Number of video interfaces (CVBS) | 1 | |
| Note on interfaces |
|
| Transmission rate | 250 (125...1000) kBaud | |||
|---|---|---|---|---|
| Protocol | CANopen; UDS | |||
| Factory settings |
|
|||
| Usage type | Parameter setting; Data transmission |
| Protocol | UDP/IP | ||||
|---|---|---|---|---|---|
| Factory settings |
|
||||
| Usage type | Data transmission |
| Ambient temperature [°C] | -40...85 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Storage temperature [°C] | -40...105 | |
| Max. relative air humidity [%] | 90; (non condensing) | |
| Max. height above sea level [m] | 4000 | |
| Protection | IP 67; IP 69K; (with mounted connectors or protective caps) | |
| Max. immunity to extraneous light [klx] | 120 |
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| Electrical safety |
|
||||
| MTTF [years] | 58 |
| Weight [g] | 1168.05 |
|---|---|
| Housing | rectangular |
| Dimensions [mm] | 143.8 x 85 x 70.1 |
| Material | housing: diecast aluminium; disc: gorilla glass |
| Items supplied |
|
|---|
| Remarks |
|
|||
|---|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connector: 1 x M12; coding: |
