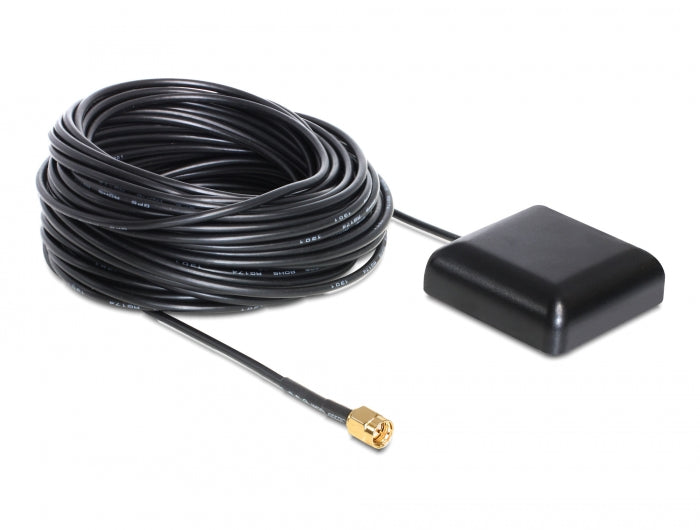

Navilock 60521 Nl-200Aa Sma Gps Antenna High Gain 15 M
Country Of Origin:
• Internal patchantenna: 25 x 25 x 4 mm
• Ground plate metal: 40 x 40 mm (PCB)
• Frequency range: 1575.42 MHz +/- 1.02 MHz
• VSWR: 1.5 typ.
• Gain: 5 dBic (7 cm x 7cm ground plane)
• Polarisation: RHCP
LNA
• Gain: 37 dB
• Voltage: 3.0 ~ 5.0 V
• VSWR: 1.5 typ.
• Noise figure: 1.5 @ 25°C +/- 10 °C
• SMA plug
• Cable type: RG-174
• Impedance: 50 Ohm,
• Cable length: 15 m
• Cable attenuation: 11.40 dB
• Dimension: 50.6 x 50.6 x 15.1 mm
• Current: typ. 25.5 mA @ 5.0 V
• IPX-6
• magnetical bottom
