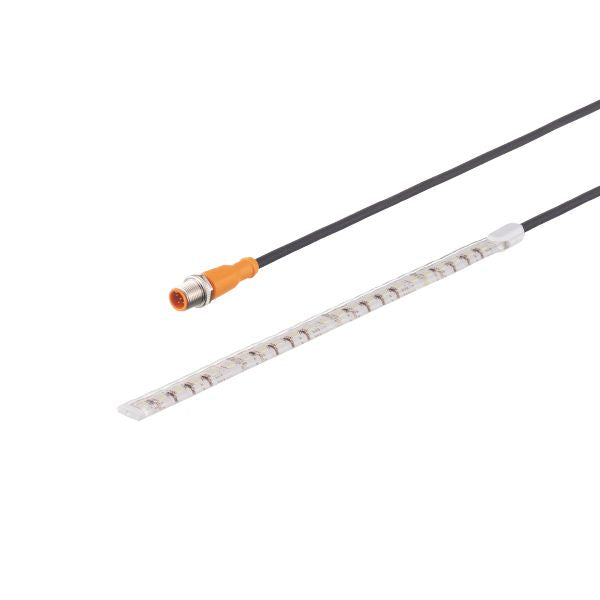

Ifm DV1101 Led Strip Rgbw
Country Of Origin:
| System | Halogen-free; gold-plated contacts |
|---|---|
| Application | signaling machine conditions |
| Operating voltage [V] | 21.6...26.4 DC | |
|---|---|---|
| Nominal voltage DC [V] | 24; (to SELV/PELV) | |
| Current consumption [mA] | 360 | |
| Color temperature [K] | 7500 | |
| Luminous flux [lm] | red: 184.96; green: 572; blue: 116; white: 768.32 | |
| Note on luminous flux [lm] |
|
|
| Typ. lifetime [h] | 30000 |
| Input circuit of digital inputs | 24 V PNP |
|---|
| Ambient temperature [°C] | -20...45 |
|---|---|
| Max. relative air humidity [%] | 90 |
| Max. height above sea level [m] | 4000 |
| Protection | IP 68 |
| Degree of soiling | 2 |
| Approval | IEC 62471; IEC 62031 |
|---|
| Weight [g] | 53.1 |
|---|---|
| Dimensions [mm] | 265 x 14.2 x 4.5 |
| Material | TPU (urethane) |
| Sealing material | FKM |
| Display |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Cable: 0.3 m, PUR, Halogen-free, black, Ø 4.3 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm ) | |
| Connector: M12, angled; coding: A; Moulded body: TPU (urethane), orange; Locking: brass, nickel-plated; sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
|
|
|
|---|
