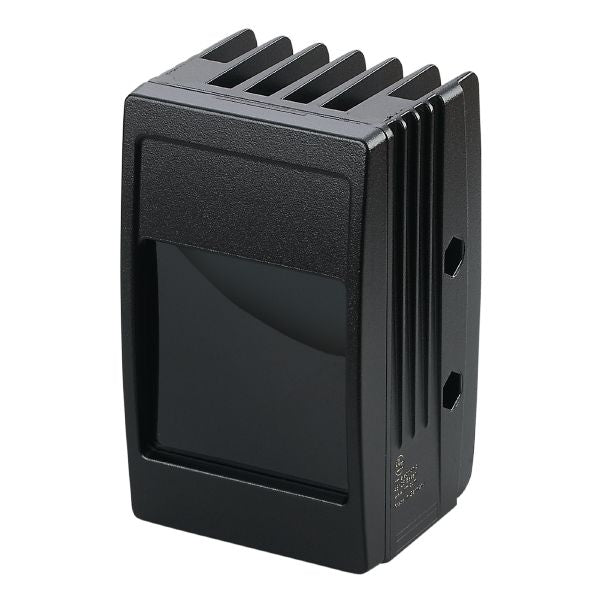

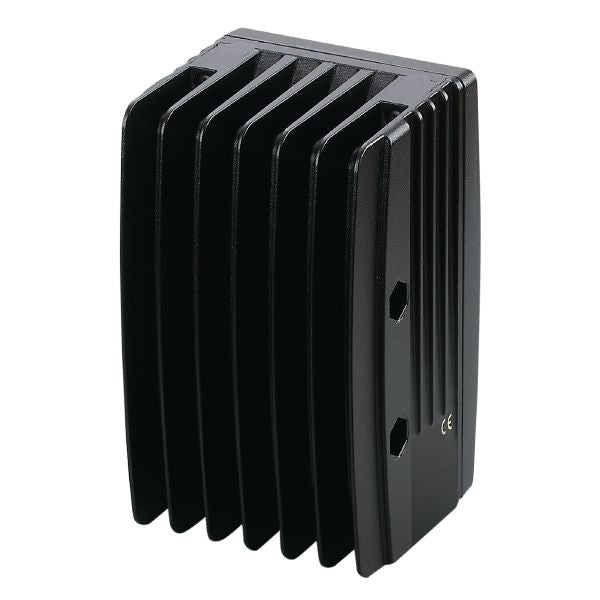

Ifm O3M970 Ir Illumination Unit
Country Of Origin:
| Type of light | Infrared light |
|---|---|
| Angle of aperture [°] | 97 x 44 |
| Image repetition frequency 3D [Hz] | 25 / 33 / 50 |
| Operating voltage [V] | 9...32 DC |
|---|---|
| Current consumption [mA] | < 5000 |
| Power consumption [W] | 45 |
| Protection class | III |
| Type of light | Infrared light |
| Wave length [nm] | 850 |
| Angle of aperture [°] | 97 x 44 |
|---|---|
| Image repetition frequency 3D [Hz] | 25 / 33 / 50 |
| Parameter setting options | via PC and O3M271 / O3M171 with ifm Vision Assistant |
|---|
| Communication interface | MCI |
|---|
| Ambient temperature [°C] | -40...85 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Storage temperature [°C] | -40...105 | |
| Protection | IP 67; IP 69K; (with mounted connectors or protective caps) |
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| Photobiological safety | risk group 1; (DIN EN 62471) | ||||
| Electrical safety |
|
||||
| MTTF [years] | 78 |
| Weight [g] | 1416.9 |
|---|---|
| Dimensions [mm] | 143 x 85 x 83.5 |
| Material | housing: diecast aluminium; disc: polycarbonate |
| Remarks |
|
||
|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connector: 1 x M12; coding: A |
