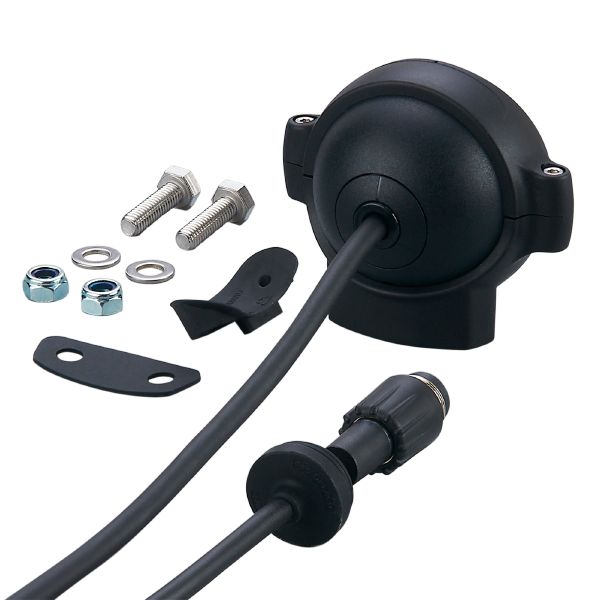

Ifm O2M202 Analog Camera For Mobile Machines
Country Of Origin:
| Image resolution [px] | 640 x 480 |
|---|---|
| Angle of aperture [°] | 118 x 89 |
| System | screened cable |
|---|
| Operating voltage [V] | 12...32 DC |
|---|---|
| Current consumption [mA] | < 280; (with lens heating) |
| Overvoltage protection | yes |
| Image sensor | ¼'' 4:3 VGA CMOS image sensor color |
| Switch-on peak current [mA] | 1000 |
| Switch-on peak current duration [ms] | 2 |
| Video output | PAL (25 fps interlace) 720H x 576V (640 x 480), 1 Vtt / 75 Ω |
|---|
| Field of view size [mm] |
|
||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image resolution [px] | 640 x 480 | ||||||||||||||||||||||||
| Angle of aperture [°] | 118 x 89 | ||||||||||||||||||||||||
| Light sensitivity [LUX] | < 0.05 | ||||||||||||||||||||||||
| Dynamic range [dB] | > 80 |
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...100 |
| Protection | IP 67; IP 69K |
| EMC |
|
||||||
|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||
| Vibration resistance |
|
||||||
| Salt spray test |
|
| Weight [g] | 313 |
|---|---|
| Dimensions [mm] | Ø 55.5 / L = 51.3 |
| Material | housing: PC/ABS; front lens: polyamide reinforced glass-fiber |
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Cable: 0.5 m, screened; shield connected | |
| Connector: 1 x M16; coding: A; Shielded connection cable: true |
