Specifications

by Ifm

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Description

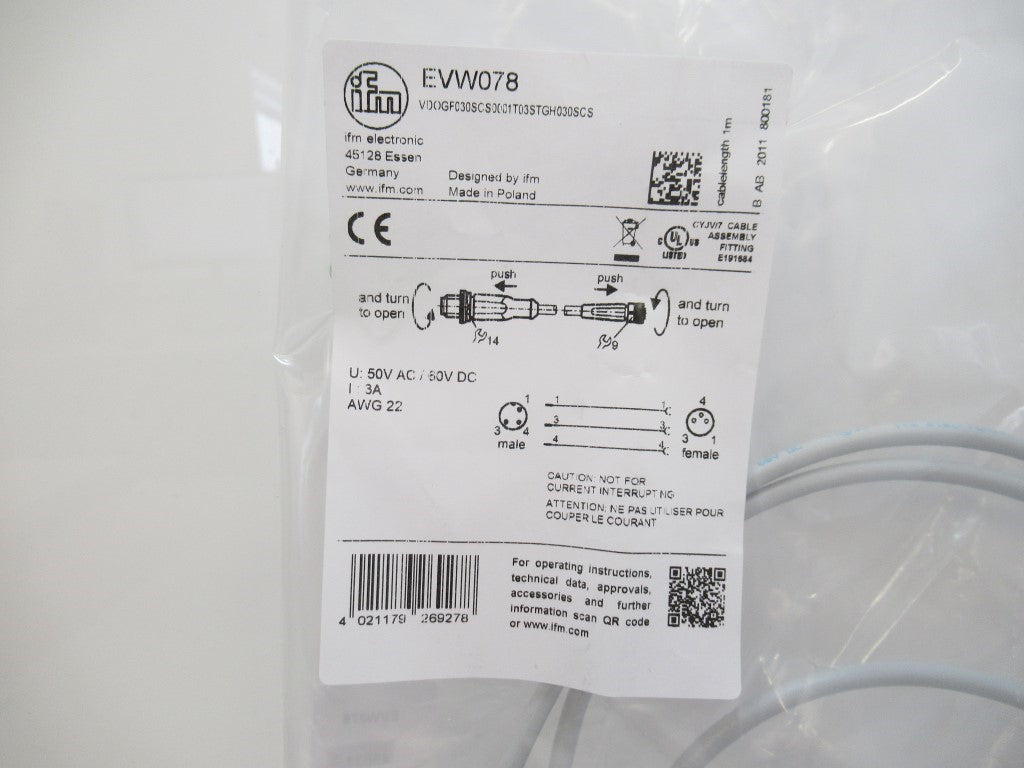

EVW078 VDOGF030SCS0001T03STGH030SCS

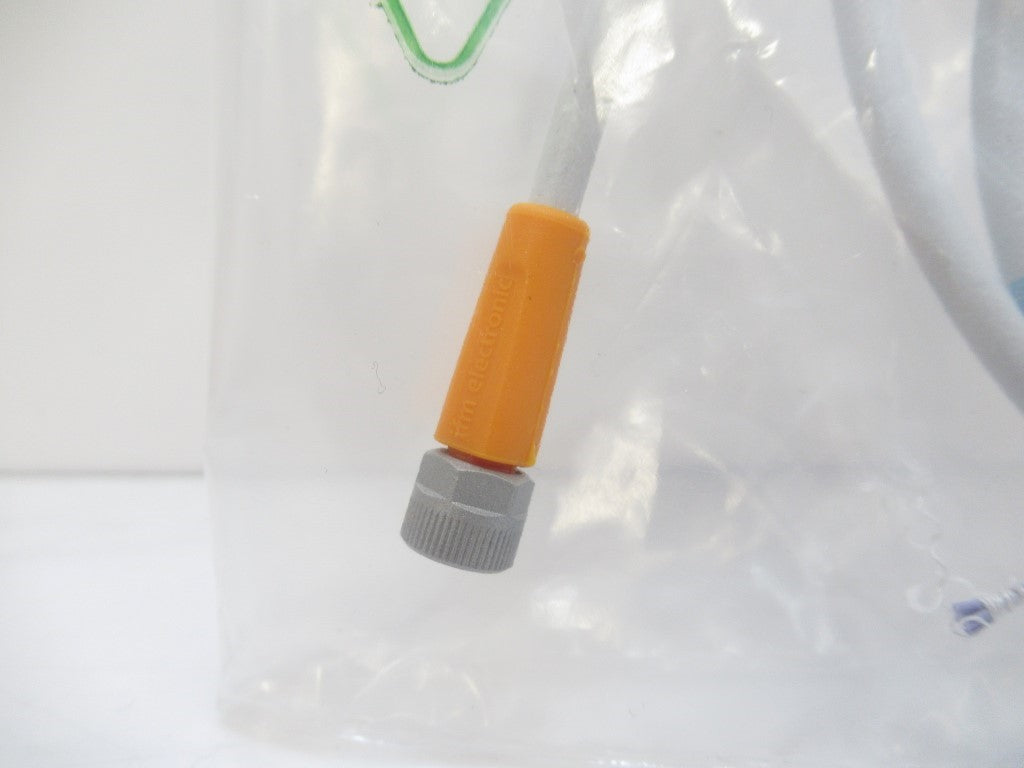

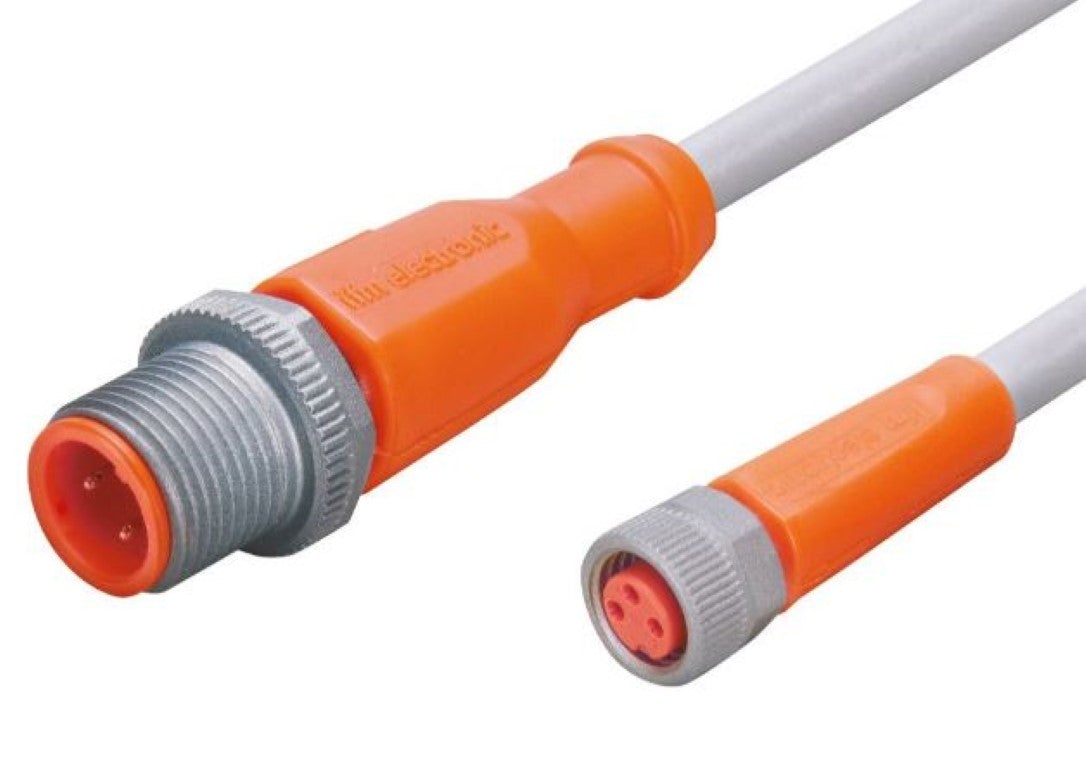

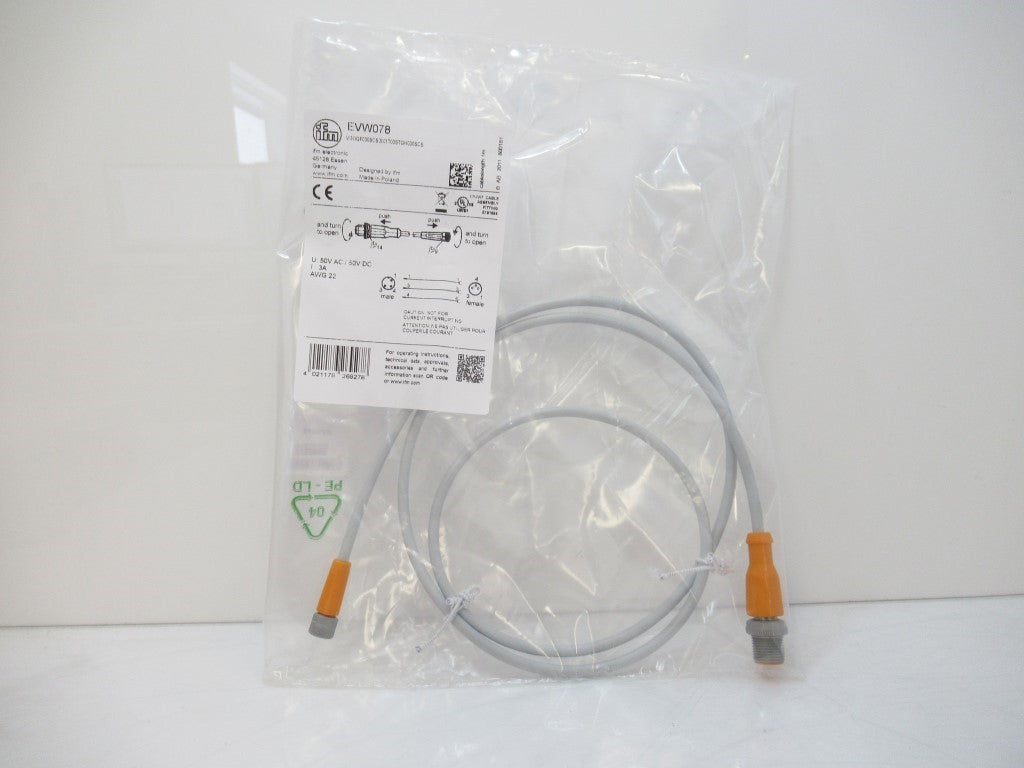

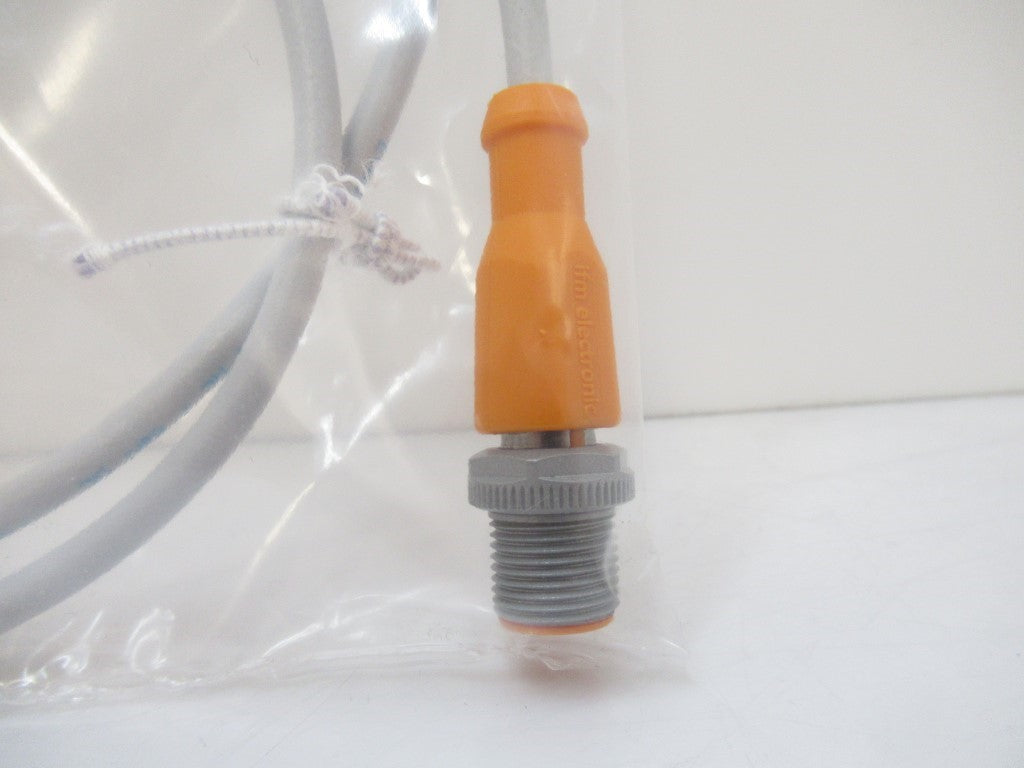

Ifm Electronic, Connection Cable M12 Plug M8 3 Pin

Weld-Slag Resistant Pur Cable With Drag Chain Suitability

Nut With Special Weld-Slag Resistant Coating

High Protection Rating For The Requirements Of Harsh Industrial Environments

Vibration And Shock Resistant Thanks To Coupling Ring With Locking Mechanism

Mechanical End Stop To Protect The O-Ring From Destruction

Special Feature: Free From Silicone; Halogen-free; Gold-plated Contacts; Drag Chain Suitability

Application: Welding Applications

Free From Silicone: Yes

Operating Voltage [V]: < 50 AC / < 60 DC

Protection Class: III

Max. Current Load Total [A]: 3

Ambient Temperature [°C]: -25...90

Note On Ambient Temperature: cULus: ...75

Ambient Temperature (Moving) [°C]: -25...90

Note On Ambient Temperature (Moving): cULus: ...75

Protection: IP 65; IP 67; IP 68; IP 69K

Weight [g]: 51

Materials: Housing: TPU Orange; Sealing: FKM

Material Nut: Brass, Anti-Spatter / Brass, Anti-Spatter
