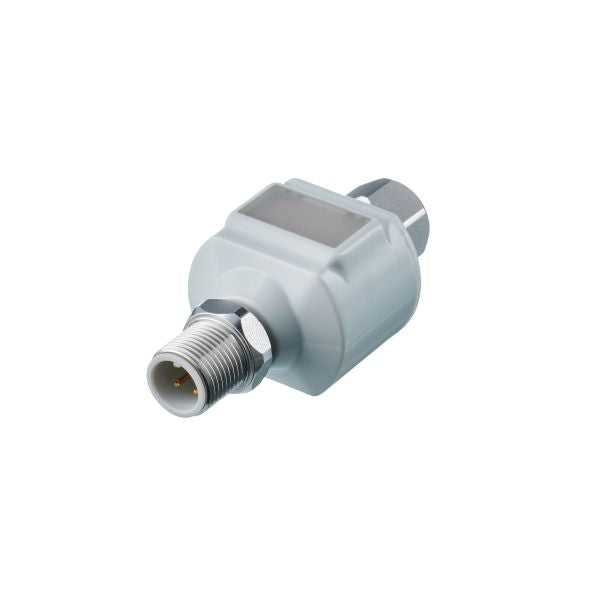

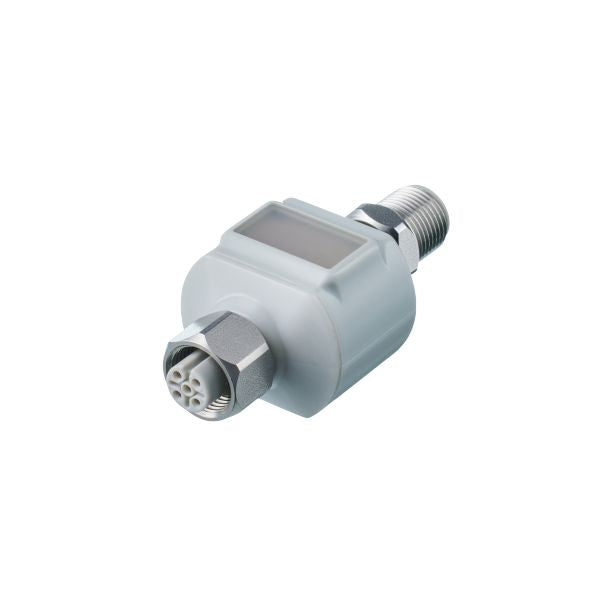

Ifm DP4200 Evaluation System And Display For Analog Signals
Country Of Origin:
| Application | decentralized display, preprocessing and conversion of analog signals; for use in wet environments; indoor use |
|---|
| Operating voltage [V] | 18...30 DC; ((in wet environments: 18...28 V) to SELV/PELV) |
|---|---|
| Nominal voltage DC [V] | 24 |
| Current consumption [mA] | 30...900 |
| Max. current load total [A] | 0.8 |
| Number of inputs and outputs | Number of analog inputs: 1; Number of digital outputs: 1; Number of analog outputs: 1 |
|---|
| Sensor supply of the inputs | from the operating voltage |
|---|---|
| Number of analog inputs | 1 |
| Analog input (current) [mA] | 4...20 |
| Number of digital outputs | 1 |
|---|---|
| Voltage range DC [V] | 10...30 |
| Output function | normally open / closed; (configurable) |
| Max. current load per output [mA] | 50 |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20 |
| Accuracy | 0.75; (% of the final value of the measuring range analog input) |
|---|
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Supported DeviceIDs |
|
| Transmission type | COM2 (38,4 kBaud) |
|---|---|
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor |
| SIO mode | yes |
| Required master port class | A |
| Process data analog | 1 |
| Process data binary | 1 |
| Min. process cycle time [ms] | 3 |
| Ambient temperature [°C] | -25...60 |
|---|---|
| Storage temperature [°C] | -25...70 |
| Max. relative air humidity [%] | 90; (linearly decreasing to 50 % (40 °C); non condensing) |
| Max. height above sea level [m] | 4000 |
| Protection | IP 67; IP 69K |
| Degree of soiling | 2 |
| MTTF [years] | 370 |
|---|
| Weight [g] | 78.5 |
|---|---|
| Weight (without accessories and packaging) [g] | 27 |
| Dimensions [mm] | 63 x 30 x 24.5 |
| Material | housing: PA |
| Material nut | stainless steel (1.4404 / 316L) |
| Sealing material | FKM |
| Display |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4404 / 316L) |
| Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4404 / 316L); sealing: FKM |
