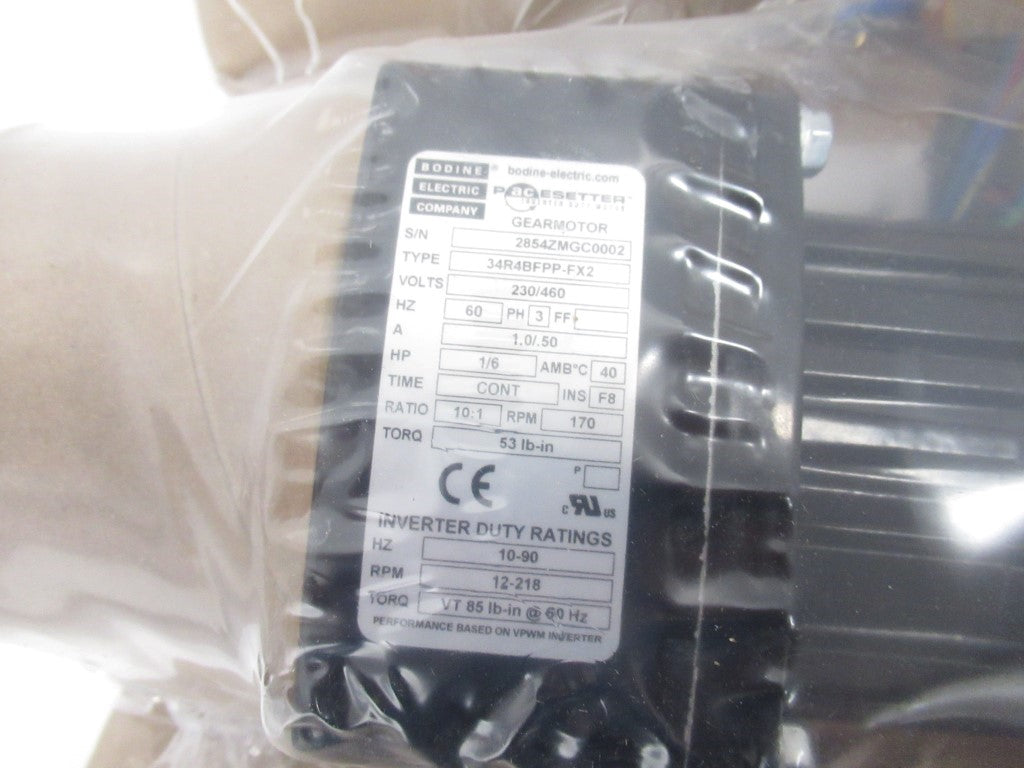

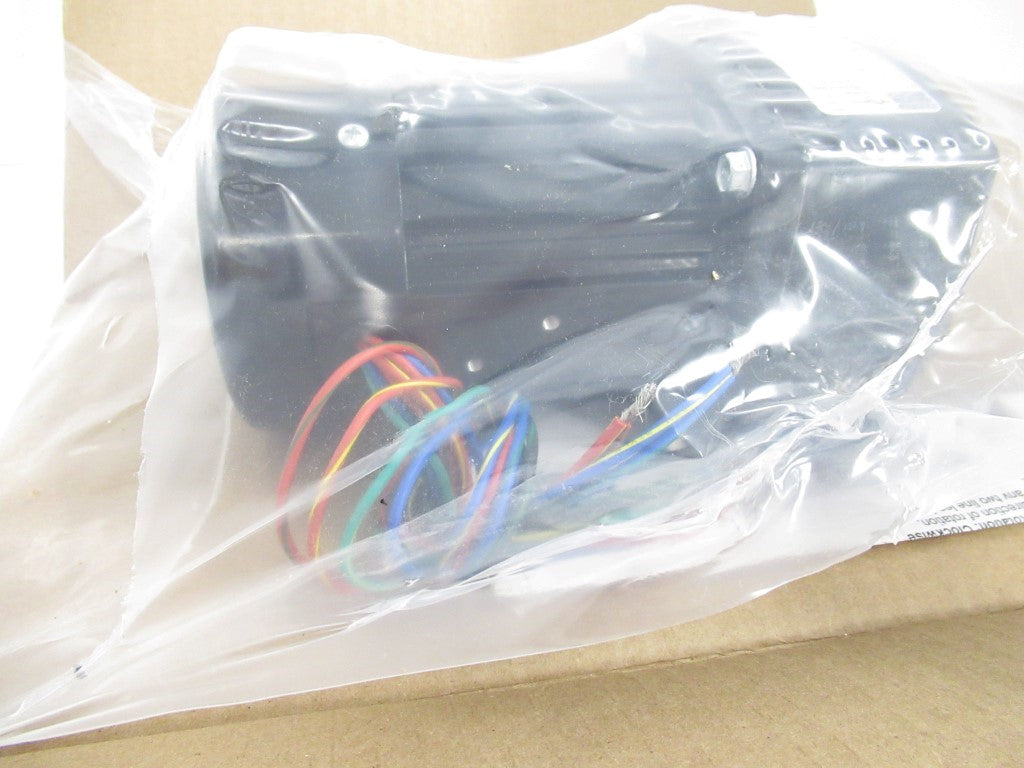

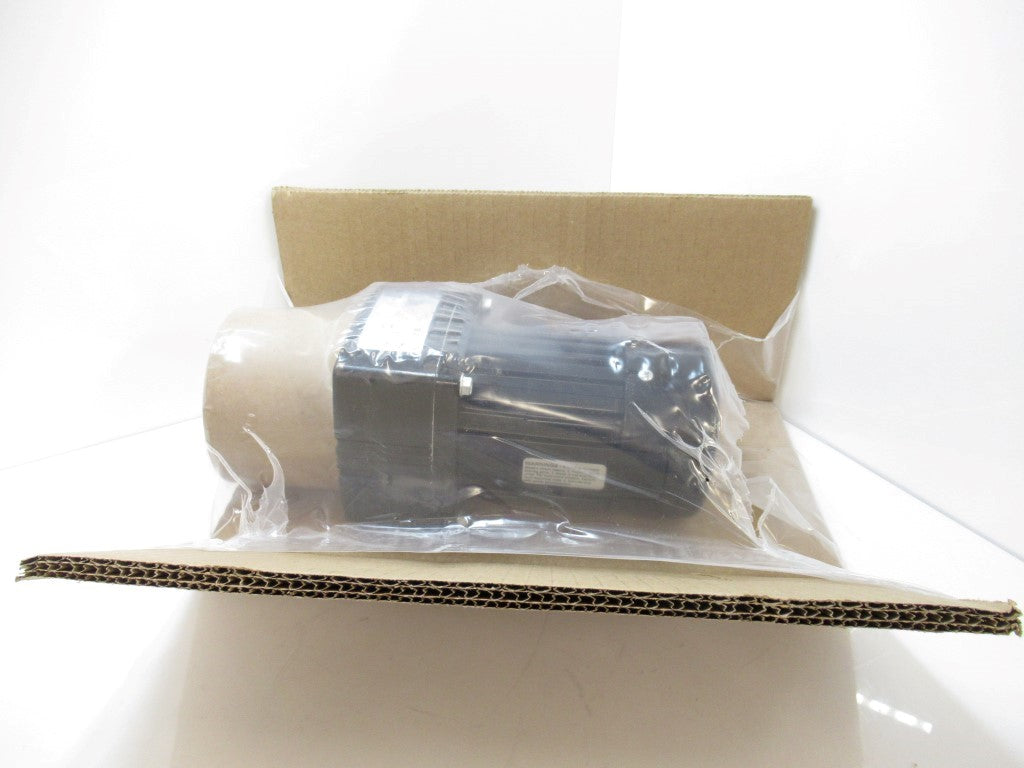

2854ZM Bodine Parallel Shaft AC 3-Phase Inverter Duty Gearmotor
2854ZM Bodine Parallel Shaft AC 3-Phase Inverter Duty Gearmotor is backordered and will ship as soon as it is back in stock.
As a Canadian company, any product manufactured in China and imported into the United States will be subject to a 30% tariff.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.
Items made in Canada and imported in the United States will be hit with a 25% fee upon arrival. Extra Fees Might Apply.
Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Country Of Origin:
Product Information
| Speed (rpm) | 170 |
| Fixed Speed Torque | 53 Lb-in |
| Motor Output Power (hp) | 1/6 |
| Voltage (AC) | 230/460 |
| Current (amps) | 1.0/0.5 |
| Rated Frequency (Hz) | 60 |
| Gear Ratio | 10 |
| Variable Speed (rpm) | 12-218 |
| Frequency Range (Hz) | 10-90 |
| SOA Torque At 10Hz | 43 |
| SOA Torque At 60Hz | 85 |
| SOA Torque At Max Hz | 74 |
| Length XH (inches) | 8.8 |
| Weight (lbs) | 11 |
| Connection Diagram | 07410883 |
| Motor Type | 34R4BFPP-FX2 |
| HPDecimal | 0.1667 |
