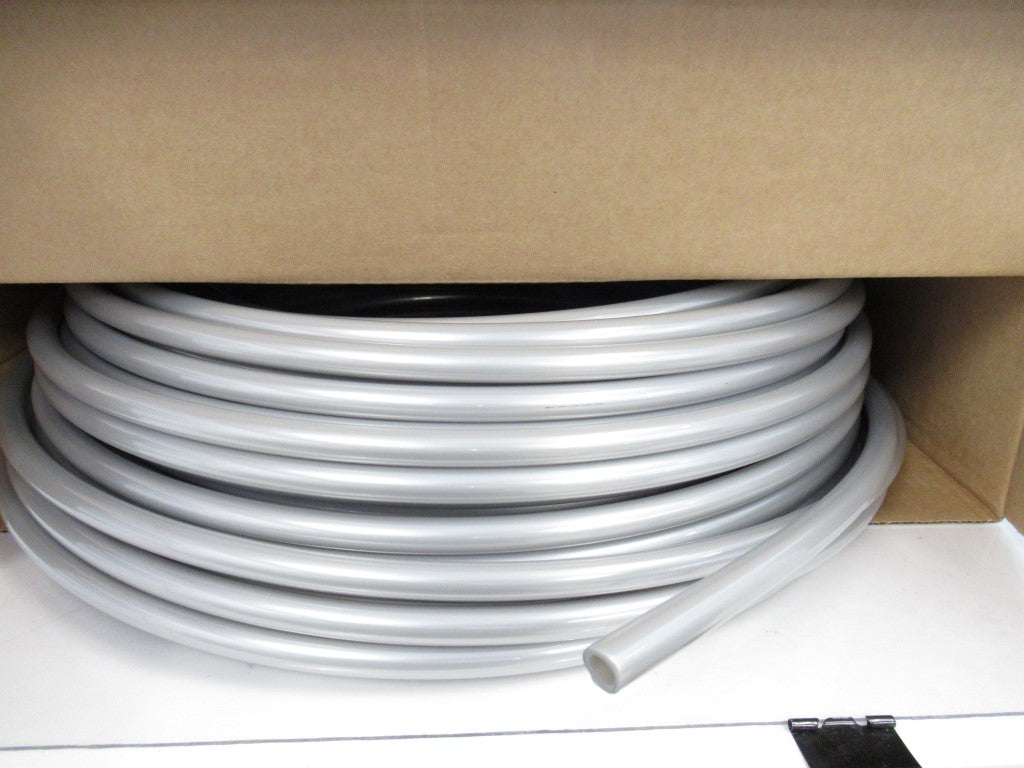

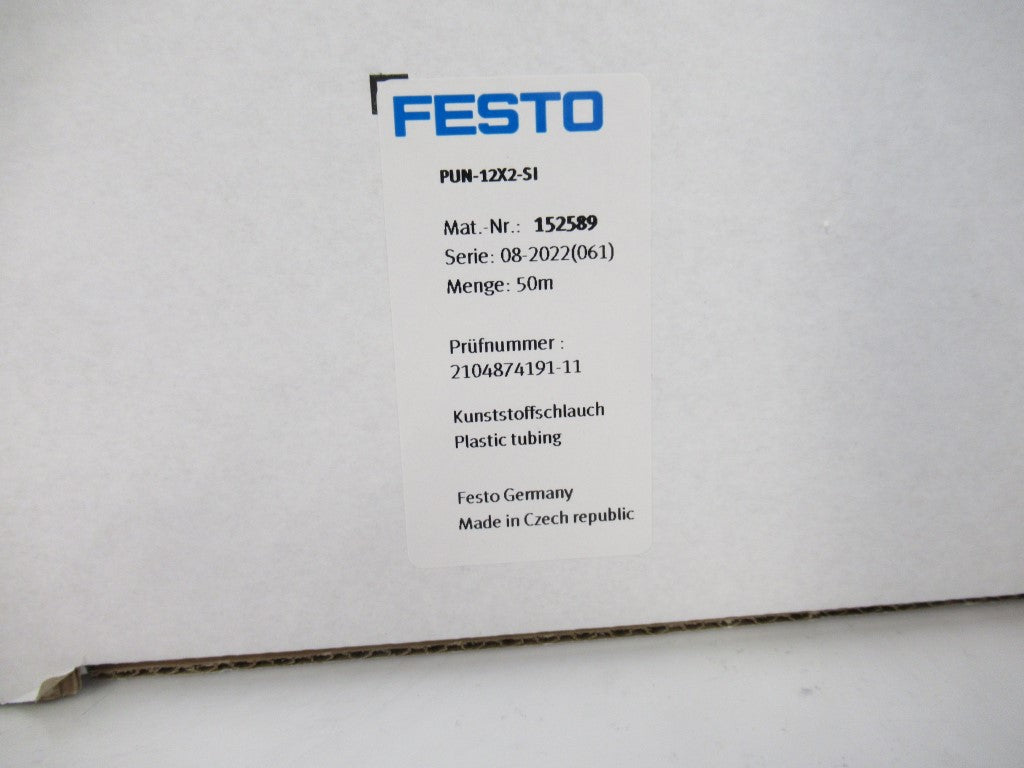

PUN-12X2-SI 152589 Festo Plastic Tubing 12 mm Silver

Product Information

PUN12X2SI

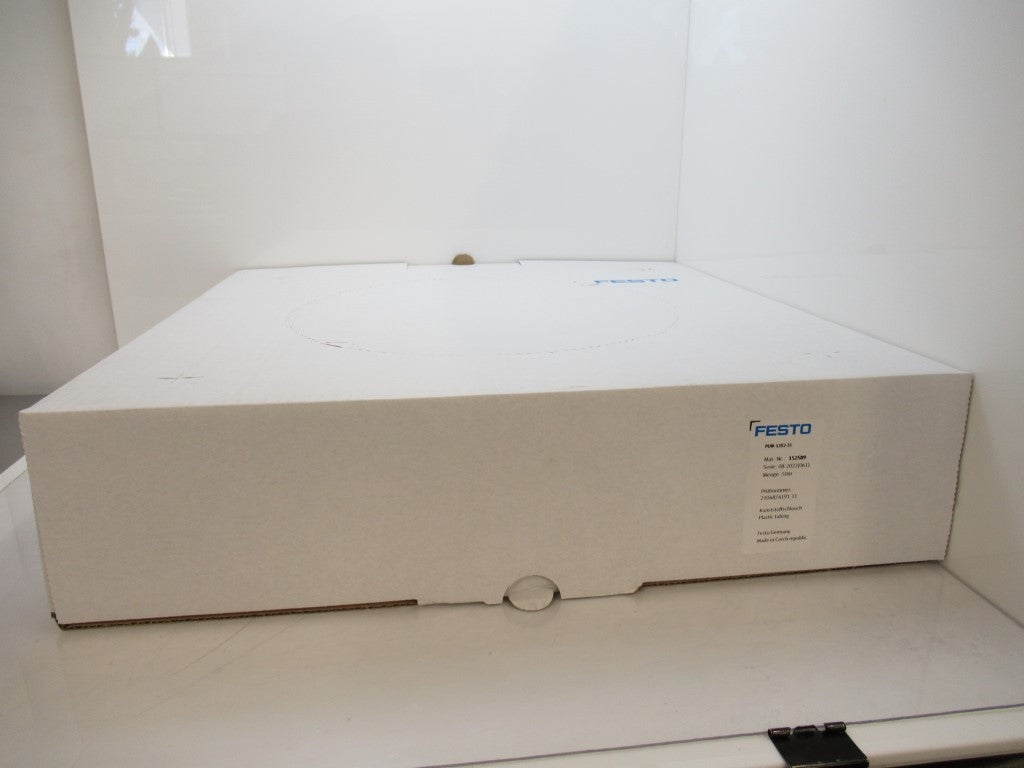

Sold Per Box Of 50 Meters

• Outside diameter: 12 mm
• Bending radius relevant for flow rate: 62 mm
• Inside diameter: 8 mm
• Min. bending radius: 33 mm
• Application note: TPE-U Ester based
• Tubing characteristics: suitability for energy chains
• Operating pressure for entire temperature range: -0.095 MPa ... 0.7 MPa
• Operating pressure for entire temperature range: -0.95 bar ... 7 bar
• Operating pressure for entire temperature range: -13.775 psi ... 101.5 psi
• Temperature-dependent operating pressure: -0.095 MPa ... 1 MPa
• Temperature-dependent operating pressure: -0.95 bar ... 10 bar
• Temperature-dependent operating pressure: -13.775 psi ... 145 psi
• Certification: German Technical Control Board (TÜV)
• Certificate issuing authority: B 013277 0506 00
• Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
• Material fire test: UL94 HB
• LABS (PWIS) conformity: VDMA24364-B2-L
• Ambient temperature: -35 °C ... 60 °C
• Product weight by length: 0.0767 kg/m
• Pneumatic connection: For plug connection outside diameter 12 mm
• Color: Silver
• Shore hardness: D 52 +/-3
• Note on materials: RoHS -compliant
• Material of pneumatic tubing: TPE-U(PU)
