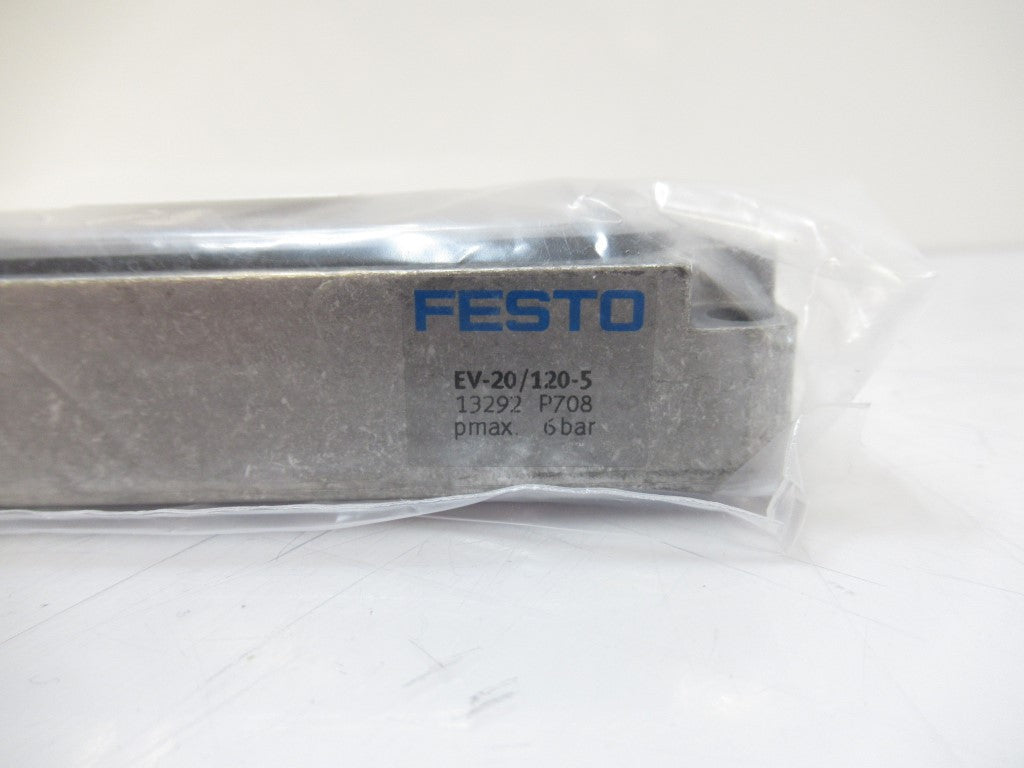

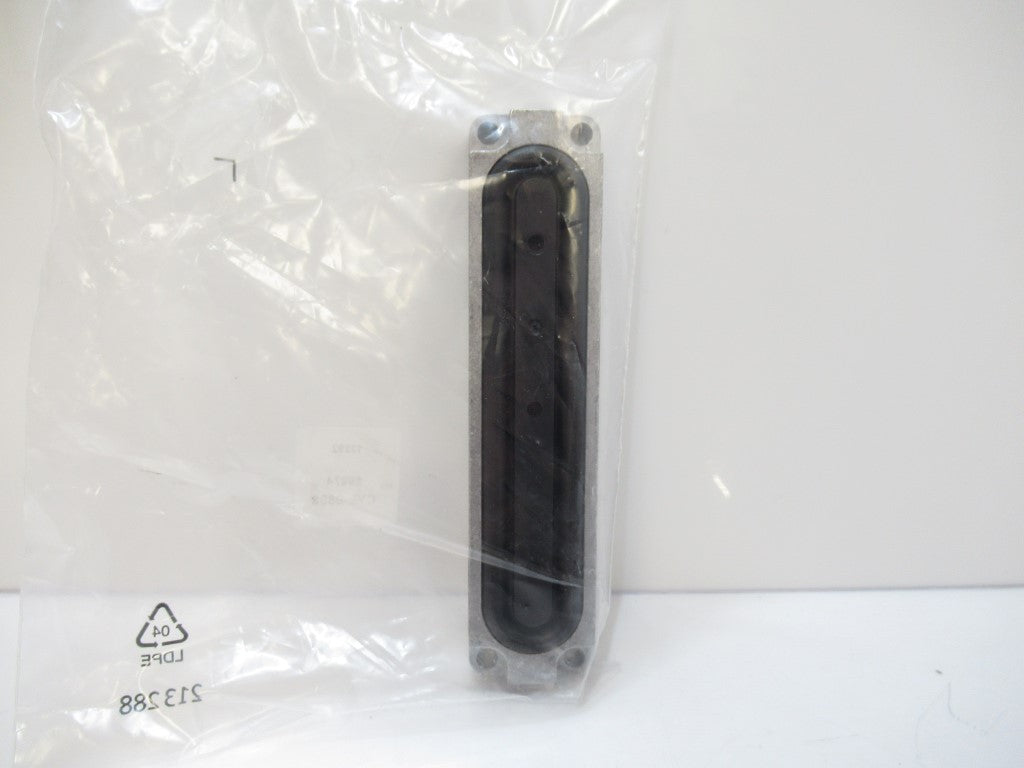

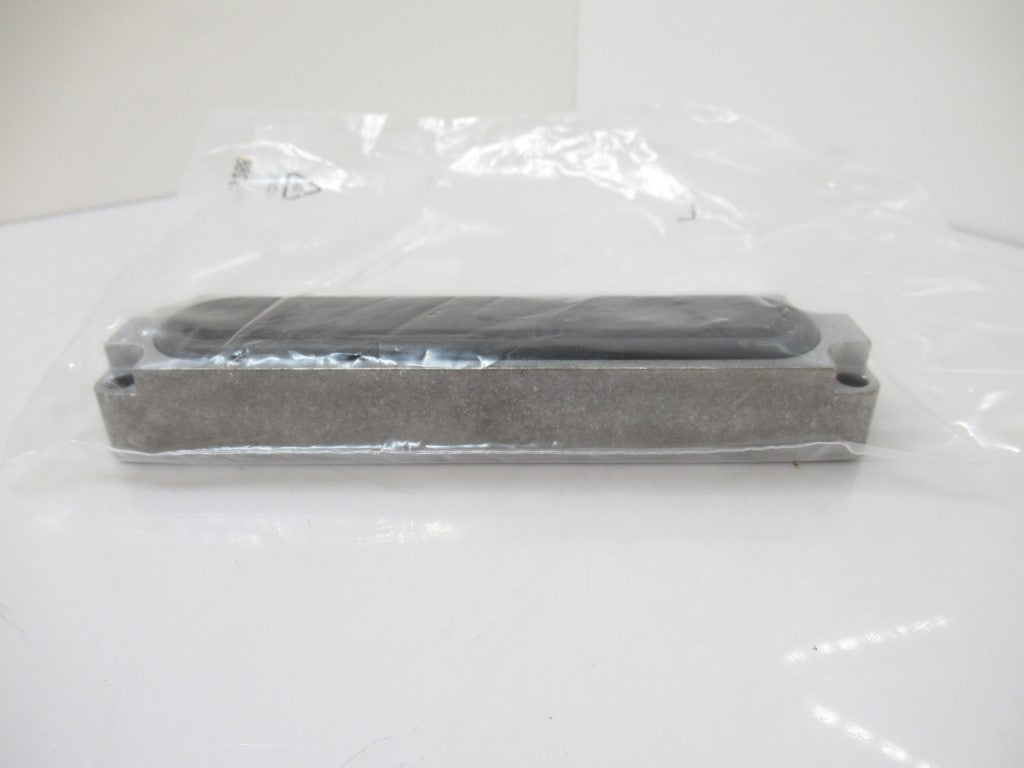

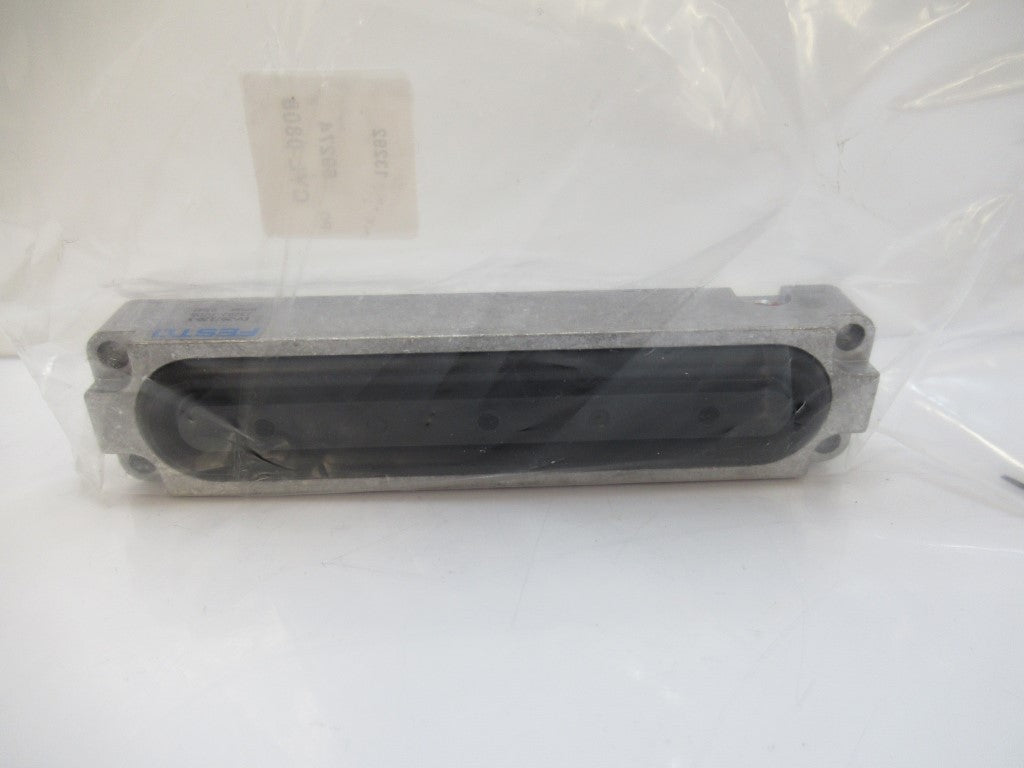

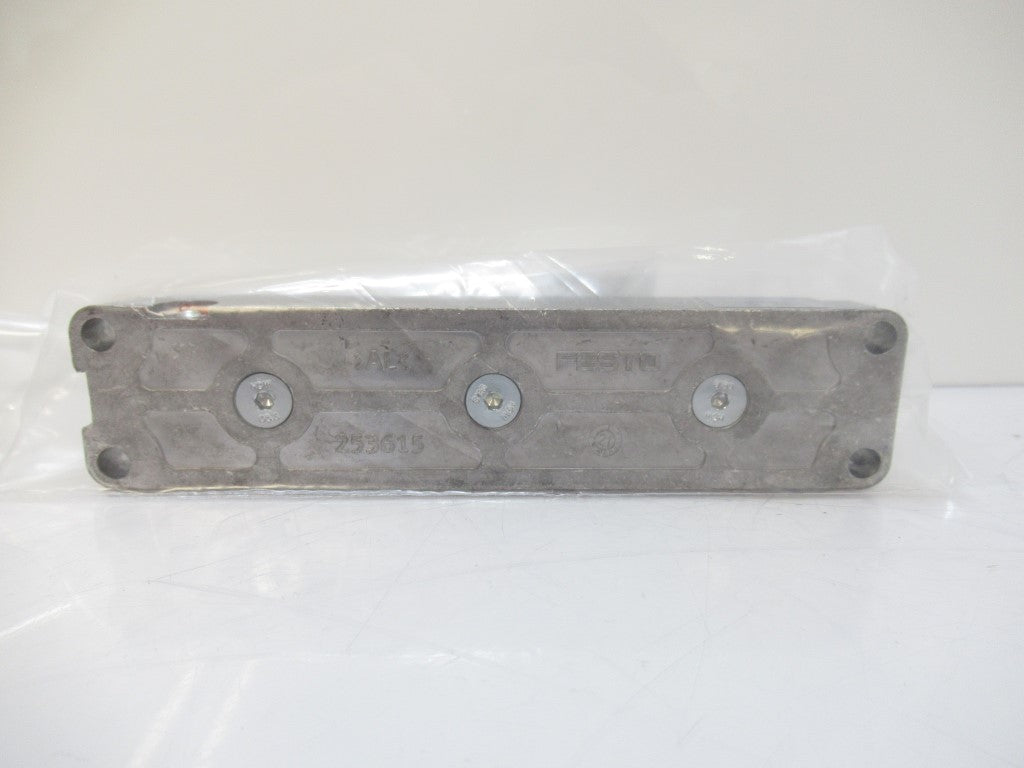

Festo EV-20/120-5 13292 Clamping Module

Description

• Stroke: 5 mm
• Clamping Area: 20 x 120
• Mounting Position: Any
• Mode Of Operation: Single-Acting
• Symbol: 00991208
• Operating Pressure: 2 bar ... 6 bar
• Operating Medium: Compressed Air As Per ISO 8573-1:2010 [7:-:-]
• LABS (PWIS) Conformity: VDMA24364-B1/B2-L
• Suitability For The Production Of Li-Ion Batteries: Metals With More Than 5% Copper By Mass Are Excluded From Use. Exception Are Printed
  Circuit Boards, Cables, Electrical Connectors And Coils.
• Ambient Temperature: -20 °C ... 40 °C
• Type Of Mounting: With Through-Hole
• Pneumatic Connection: M5
• Housing Material: Die-Cast Aluminum
• Diaphragm Material: TPE-U(PU)
