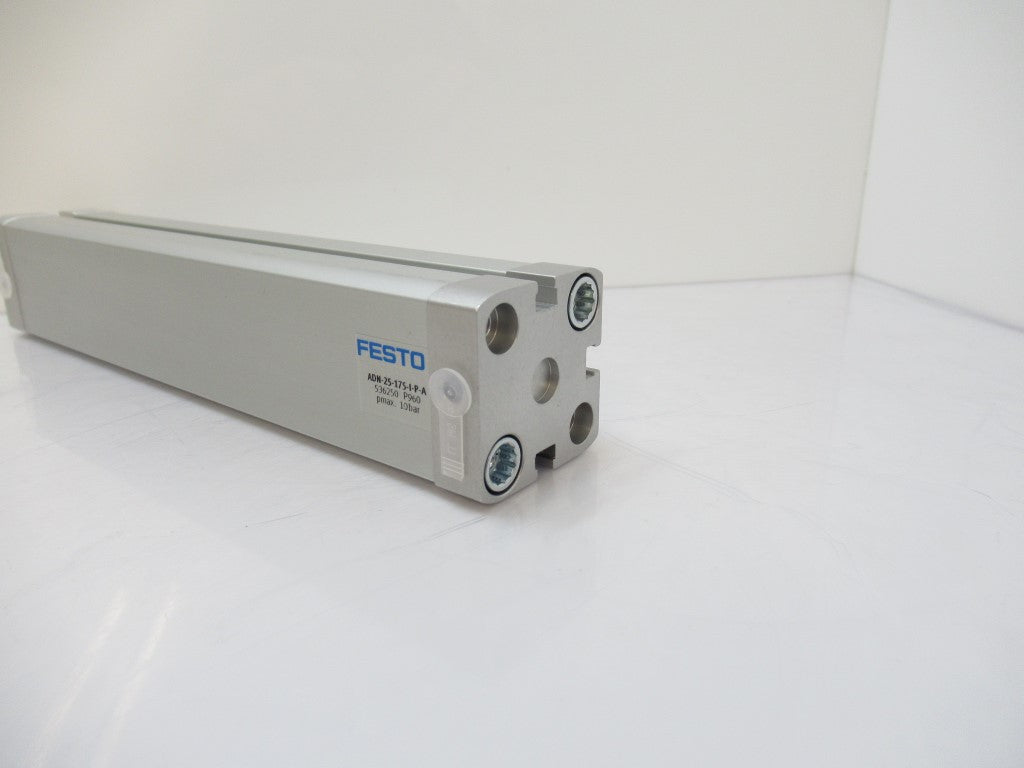

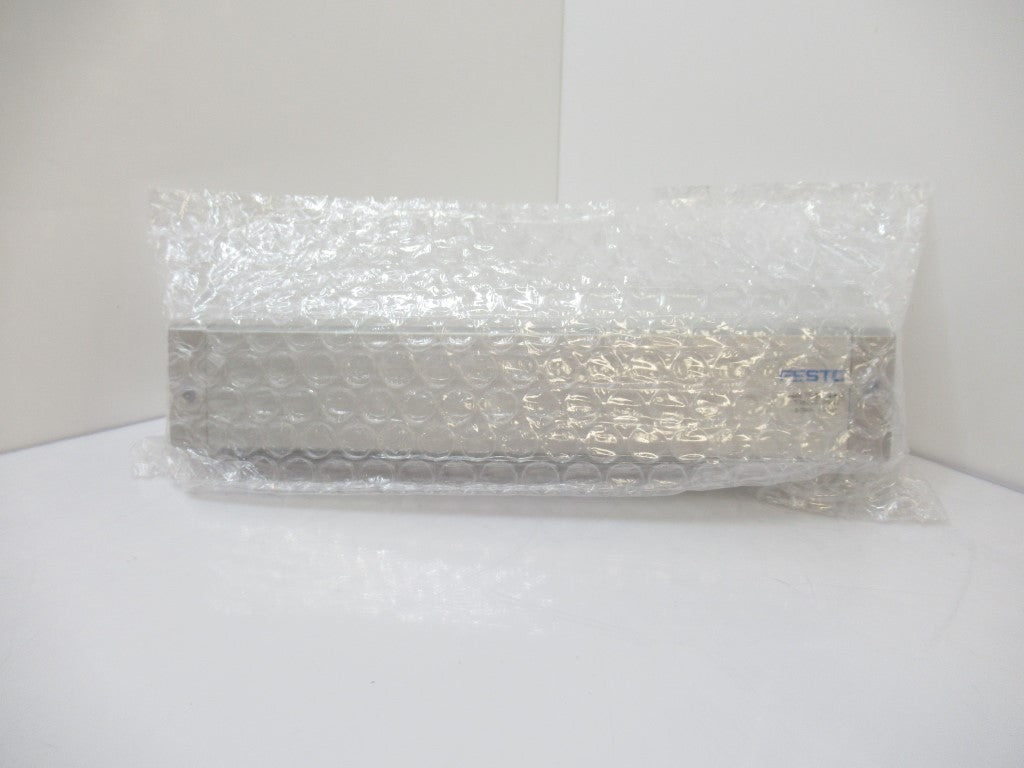

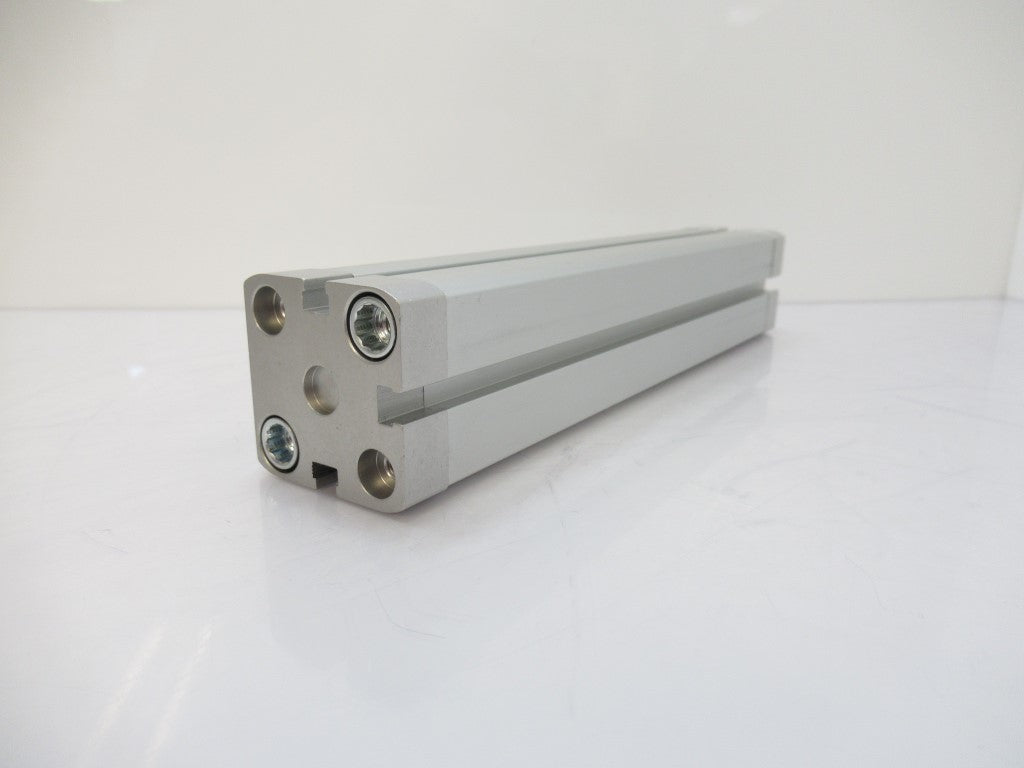

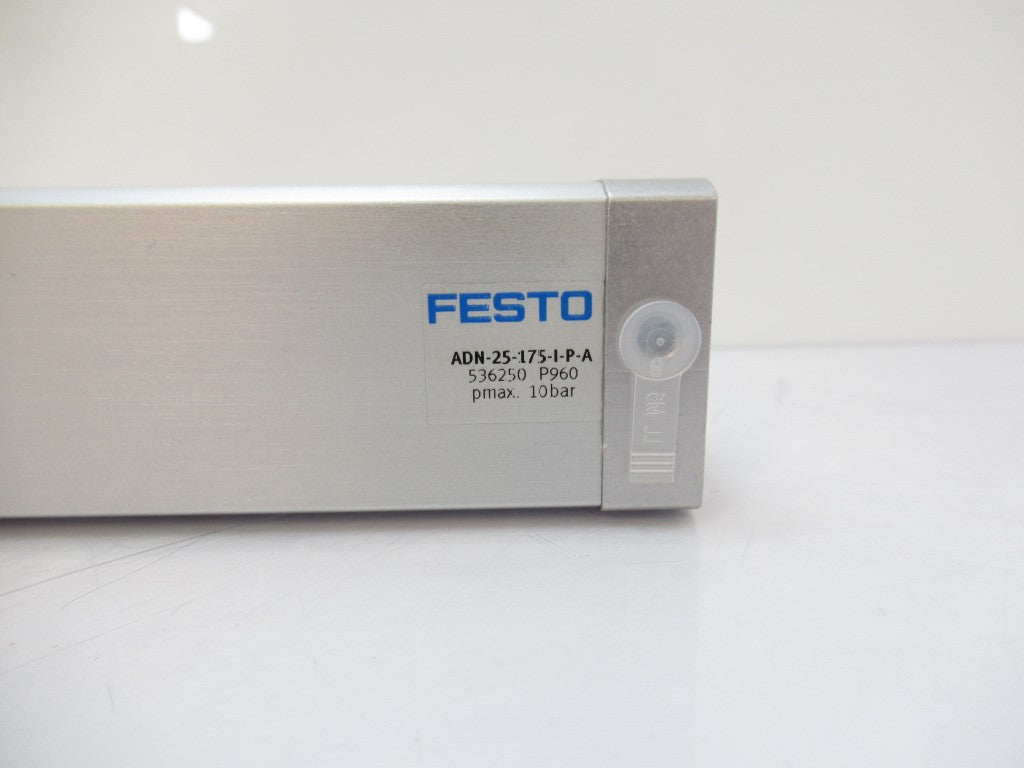

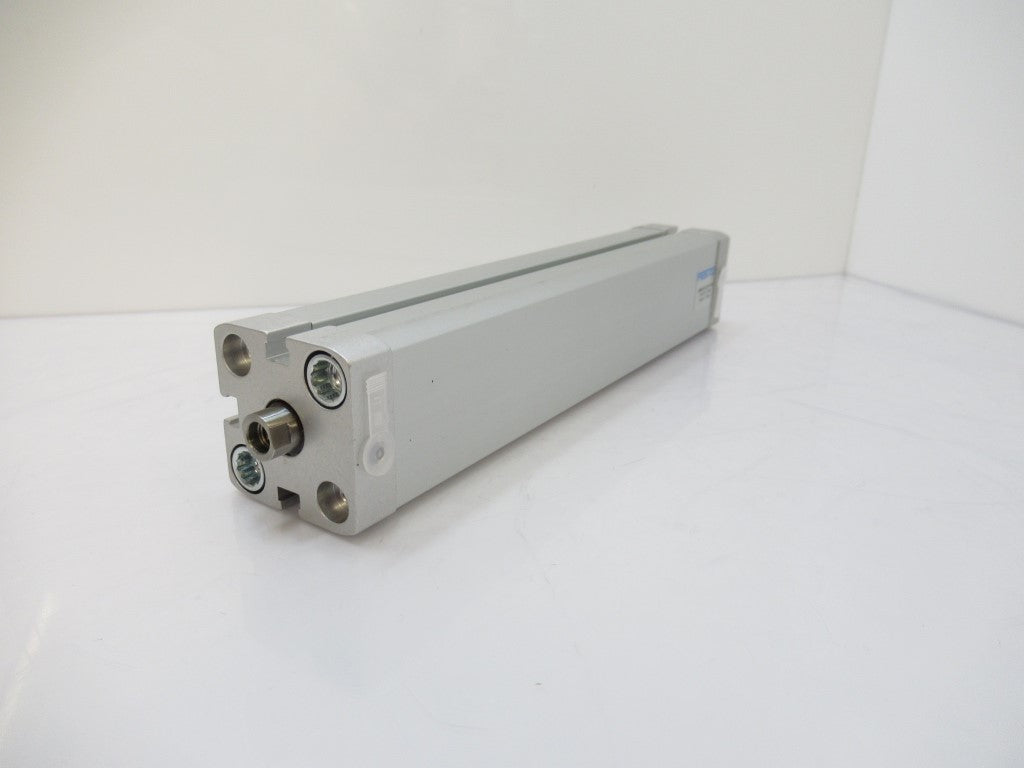

ADN-25-175-I-P-A Festo 536250 Compact Air Cylinder

ADN-25-175-I-P-A 536250 Festo Compact Air Cylinder

SKU CYL-0800-E
$128.75 USD - $128.75 USD
$128.75 USD
$128.75 USD - $128.75 USD
$128.75 USD
Availability:
Only 2 left!

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote
by FESTO

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Product Information

  • ADN25175IPA
  • Stroke: 1 mm ... 300 mm
  • Piston diameter: 25 mm
  • Based on norm: ISO 21287
  • Cushioning: Elastic cushioning rings/pads at both ends, Self-adjusting pneumatic end-position cushioning
  • Mounting position: Any
  • Structural design: Piston, Piston rod, Profile barrel
  • Position sensing: For proximity sensor
  • Mode of operation: Double-acting
  • Ambient temperature: -40 °C ... 120 °C
  • Moving mass at 0 mm stroke: 50 g
  • Additional moving mass per 10 mm stroke: 6 g
  • Basic weight with 0 mm stroke: 156 g
  • Additional weight per 10 mm stroke: 23 g
  • Pneumatic connection: M5
  • Note on materials: RoHS-compliant
  • Cover material: Aluminum Anodized
  • Piston rod material: High-alloy steel
  • Material of cylinder barrel: Wrought aluminum alloy, Smooth anodized
