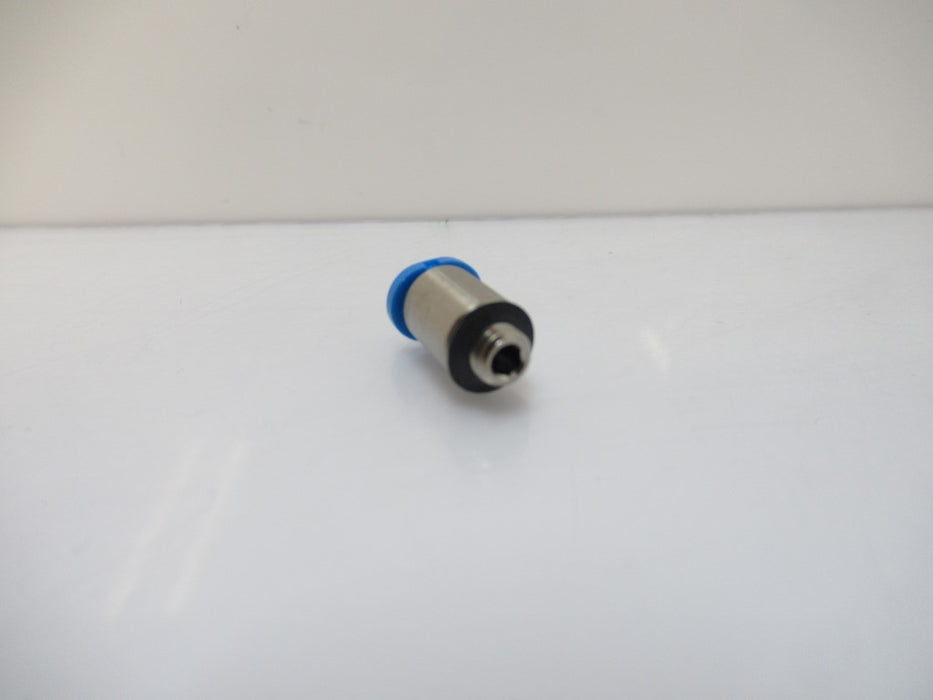

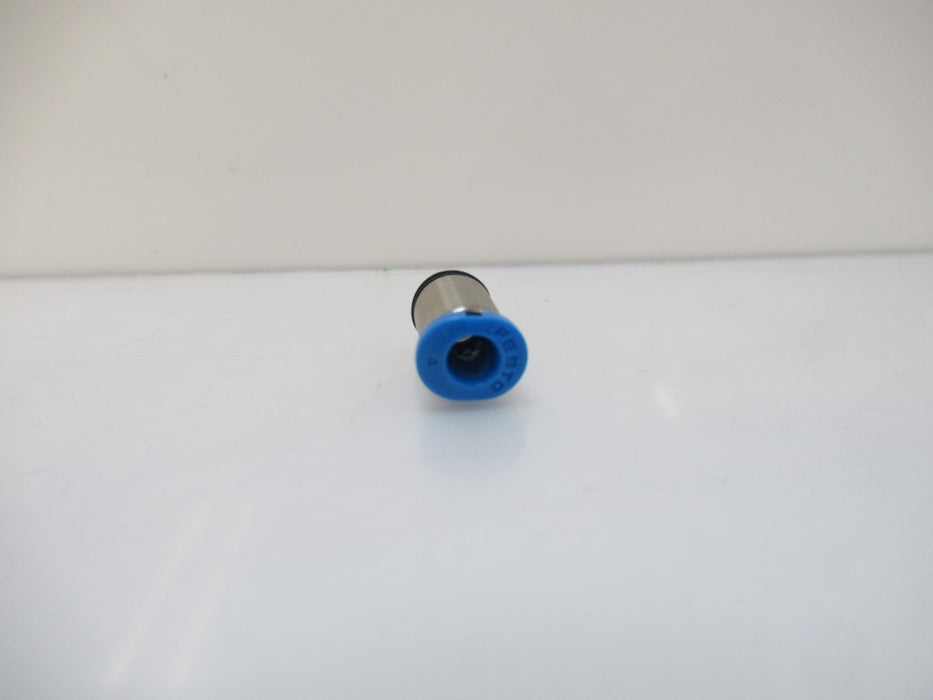

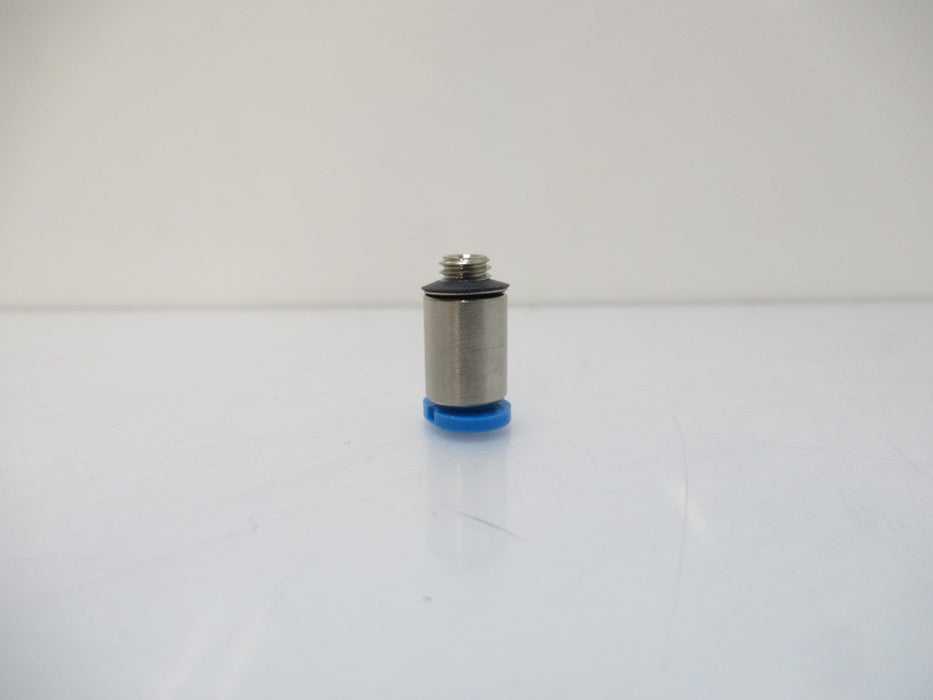

153315 QSM-M5-4-1 Festo Push-In Fitting
FACTORY SUPPLY BRAND NEW
SKU FIT-0226-E
UPC: 153315
Only 11 left!
153315 QSM-M5-4-I QSMM54I
Festo
Push-In Fitting
Male thread with internal hexagon socket.
| Feature |
Value |
| |
|
| Size |
Mini |
| Nominal size |
2.5 mm |
| Type of seal on screw-in stud |
Sealing ring |
| Assembly position |
Any |
| Container size |
10 |
| Design structure |
Push/pull principle |
| Operating pressure complete temperature range |
-0.95 ... 6 bar |
| Temperature dependent operating pressure |
-0.95 ... 14 bar |
| Maritime classification |
see certificate |
| Operating medium |
Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium |
Lubricated operation possible |
| Corrosion resistance classification CRC |
1 - Low corrosion stress |
| Ambient temperature |
-10 ... 80 °C |
| Nominal tightening torque |
1.33 Nm |
| Tolerance for nominal tightening torque |
± 20 % |
| Product weight |
3 g |
| Pneumatic connection, port 1 |
Male thread M5 |
| Pneumatic connection, port 2 |
For tubing outside diameter 4 mm |
| Colour of release ring |
blue |
| Materials note |
Conforms to RoHS |
| Material housing |
Brass
Nickel plated |
| Material release ring |
POM |
| Material of tubing seal |
NBR |
| Material of tube retaining claw |
High alloy steel, non-corrosive |
|
