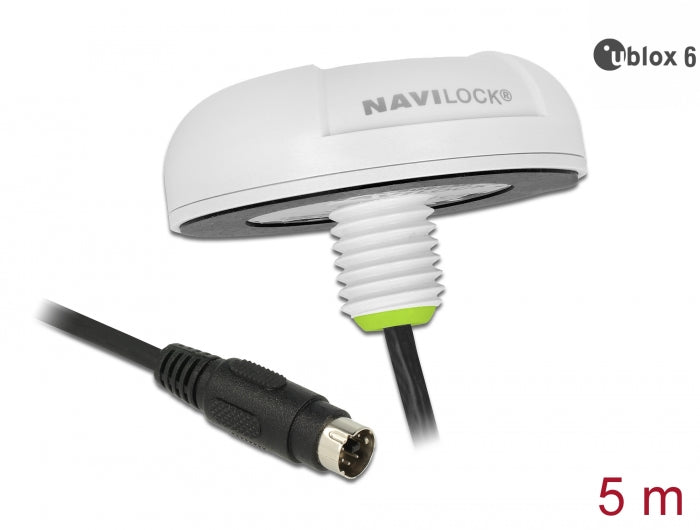

Navilock 61843 Nl-622Mp Serial Md6 Gps Receiver Outdoor Marine
Country Of Origin: Taiwan
• GPS receiver with MD6 Navilock plug
(USB or serial cable are optional available)
• Internal patch antenna
• Central fastening screw thread with cable leading from the middle
• Frequency: L1, 1575.42 MHz, C/A Code: 1.023 MHz
• Accepts the signals of up to 50 satellites at the same time
• Supports AssistNow Offline (14 days Almanac data), AGPS,
WAAS, EGNOS, MSAS, NMEA 0183 protocols: GGA, GSA,
GSV, RMC, VTG
• Baud rate: 9600 (up to 115200)
• Update rate: up to 5 Hz
• Sensibility max. –162 dBm
• Water-proof housing (IPX7)
• Operating temperature: -20°C ~ 60°C
• Cold start in about 25 sec.
• Hot start in about 1 sec.
• Cable length: 5 m
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and
2 m CEP with SBAS
• Dimension: 62 mm x 21 mm
-
