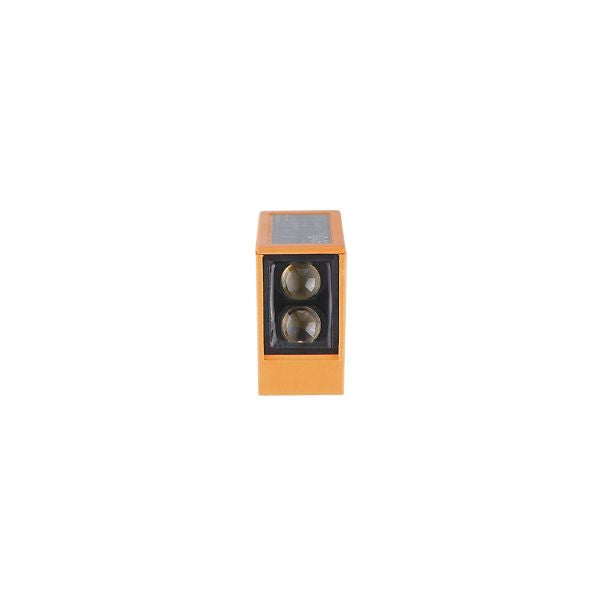

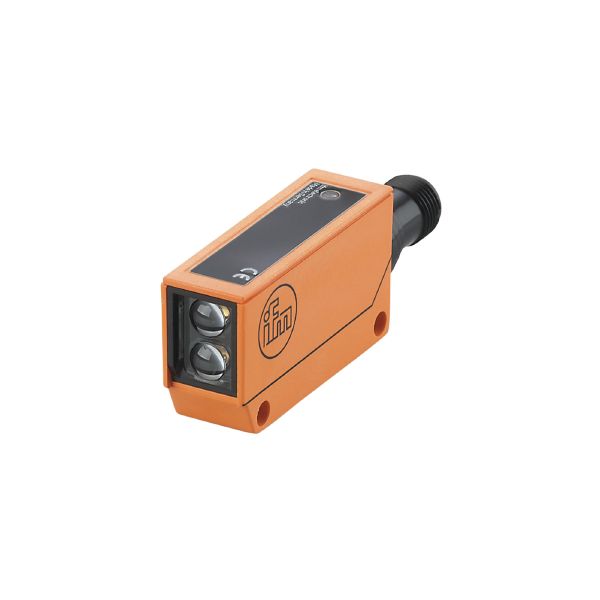

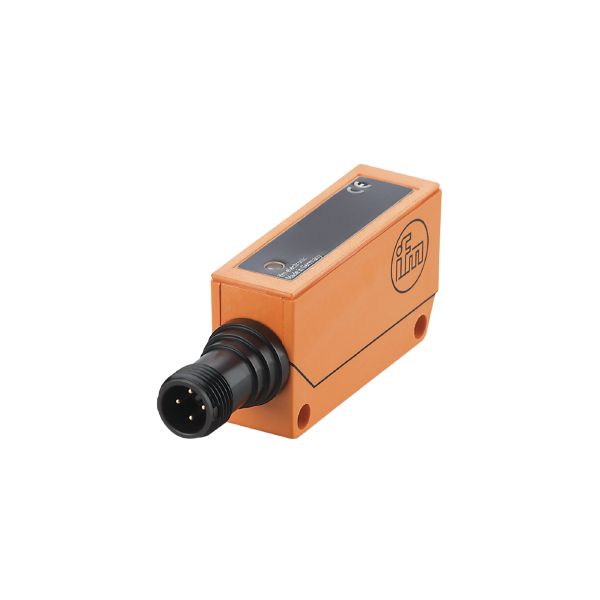

Ifm OU5069 Diffuse Reflection Sensor
Country Of Origin:
| Type of light | Infrared light |
|---|---|
| Housing | rectangular |
| System | short ranges |
|---|---|
| Function principle | Diffuse reflection sensor |
| Operating voltage [V] | 10...55 DC |
|---|---|
| Current consumption [mA] | 35; ((24 V)) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | Infrared light |
| Wave length [nm] | 880 |
| Electrical design | PNP |
|---|---|
| Output function | light-on mode |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 160 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Range [mm] | 20...40; (white paper 200 x 200 mm) |
|---|---|
| Max. light spot diameter [mm] | 20 |
| Light spot dimensions refer to | at maximum range |
| Short ranges | yes |
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 685 |
| Weight [g] | 70.5 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 28 x 16 x 51 | |
| Material | PPO modified | |
| Lens material |
|
|
| Lens alignment | Side sensing |
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | Connector: 1 x M12; coding: A |
|---|
|
excess gain graph
|
|
|---|
