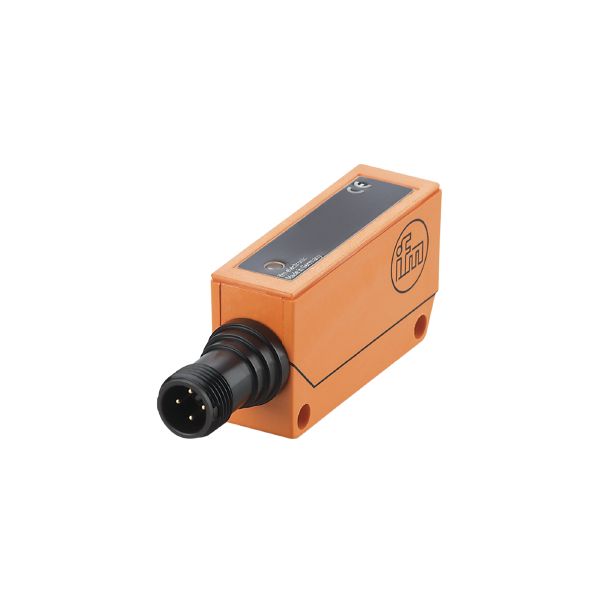

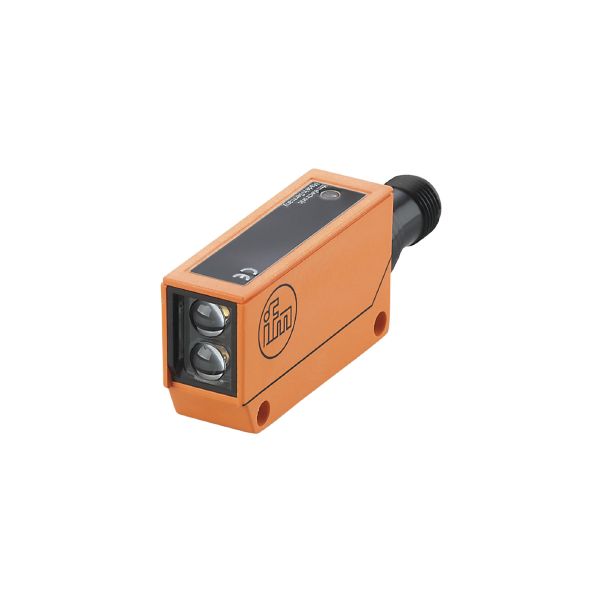

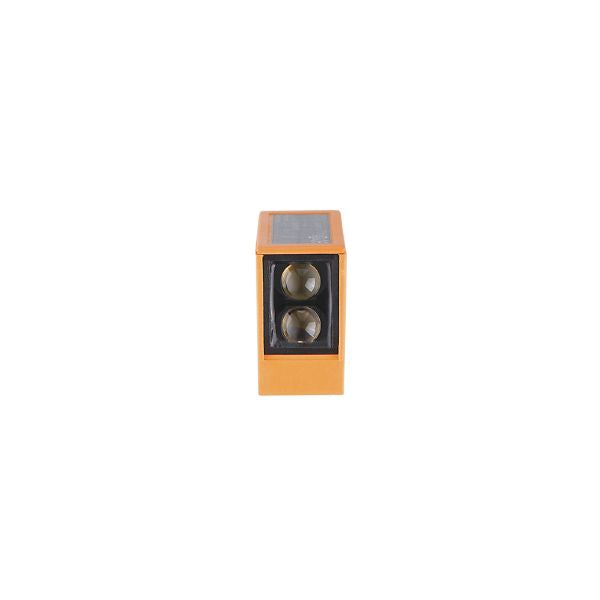

Ifm OU5047 Through-Beam Sensor Receiver
Country Of Origin:
| Type of light | Infrared light |
|---|---|
| Housing | rectangular |
| Function principle | Through-beam sensor |
|---|
| Operating voltage [V] | 10...55 DC |
|---|---|
| Current consumption [mA] | 20; ((24 V)) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | Infrared light |
| Wave length [nm] | 880 |
| Electrical design | PNP |
|---|---|
| Output function | light-on mode |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 140 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Transmitter / receiver | receiver |
|---|---|
| Range [m] | < 6 |
| Range adjustable | yes |
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 618 |
| Weight [g] | 73.5 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 28 x 16 x 51 | |
| Material | PPO modified | |
| Lens material |
|
|
| Lens alignment | Side sensing |
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | Connector: 1 x M12; coding: A |
|---|
|
excess gain graph
|
|
|---|
