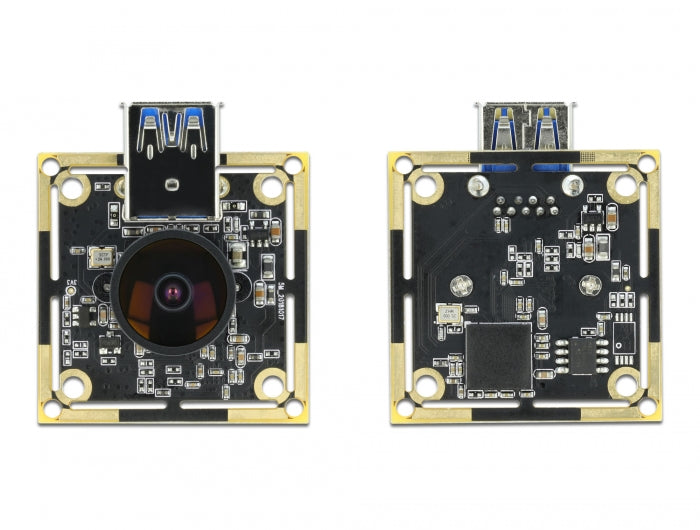

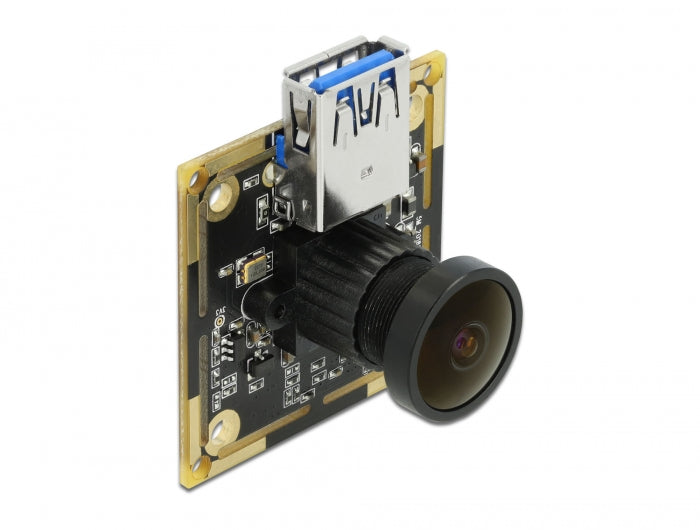

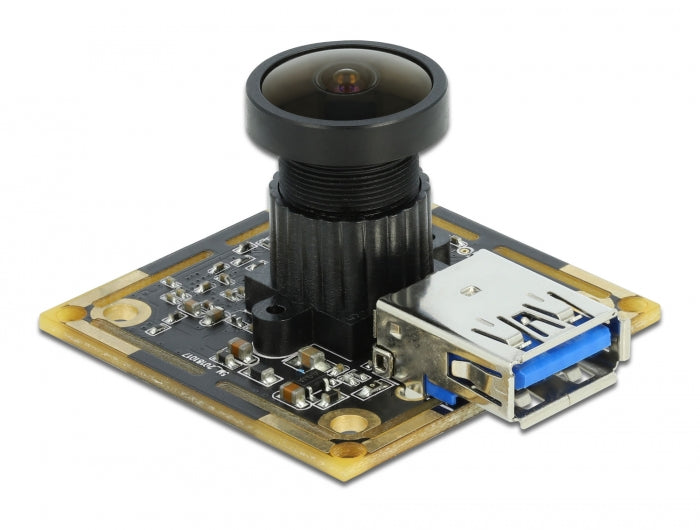

Delock 96398 Usb 3.2 Gen 1 Camera Module 4.91 Mega Pixel 120° Fix F...
Country Of Origin: China
• Resolution: 4.91 megapixel
• With optical IR filter
• Maximum resolution: 2560 x 1920
• Automatic image control functions including:
Automatic exposure control (AEC)
Automatic white balance (AWB)
Automatic band filter (ABF)
Automatic black-level calibration (ABLC)
• Image quality controls including colour saturation, gamma, sharpness (edge
enhancement), lens correction, white pixel canceling, noise canceling
• Current consumption:
sensor active: 300 mA ± 5 mA @ 2560 x 1920
• Operating voltage: 5 V DC
• Operating temperature: 0 °C ~ 60 °C
• Operating humidity: 0 ~ 85 %
• Sensor size: 1/4"
• Pixel size: 2.2 μm x 2.2 μm
• Sensitivity: 1.4 V / lx s
• Signal-to-noise ratio (SNR): ca. 38.1 dB
• Dynamic range: 70.1 dB
• Fix focus: 10 cm - infinite
• Aperture: F/2,5
• Frame rates MJPG:
15 fps @ 2560 x 1920
15 fps @ 2048 x 1536
22 fps @ 2048 x 1528
15 fps @ 1600 x 1200
50 fps @ 1280 x 720
39 fps @ 640 x 480
• Dimensions (LxWxH): ca. 38 x 38 x 26 mm
-
