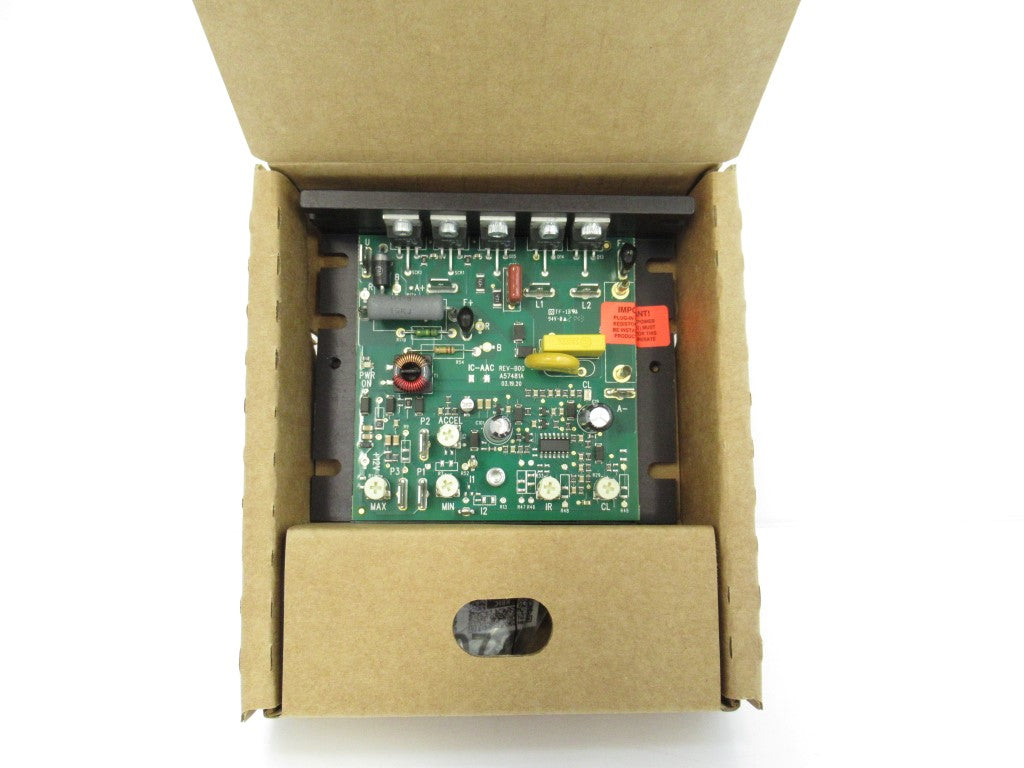

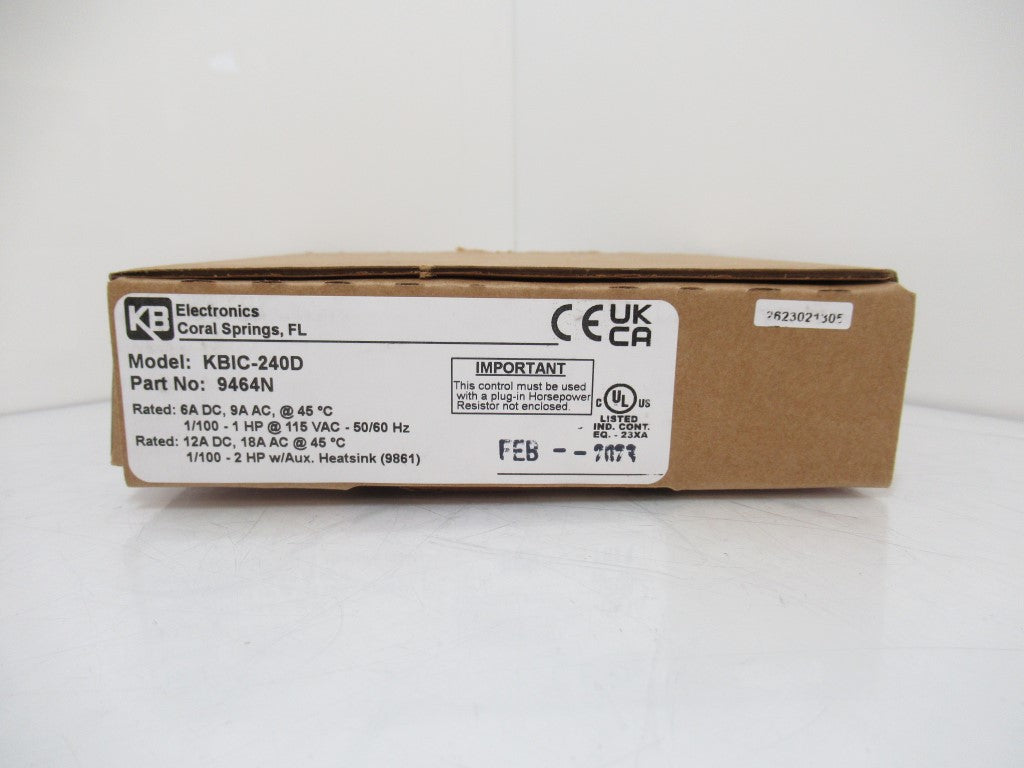

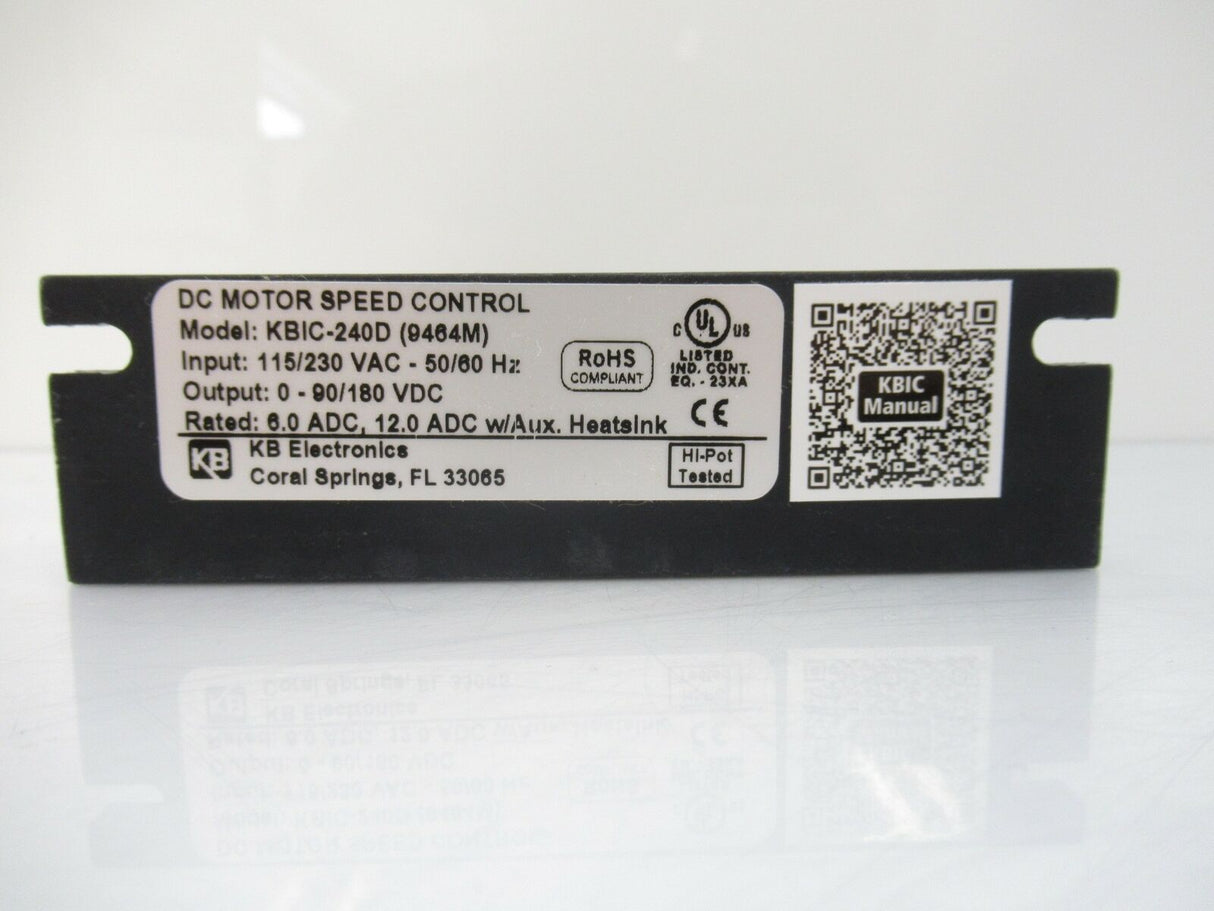

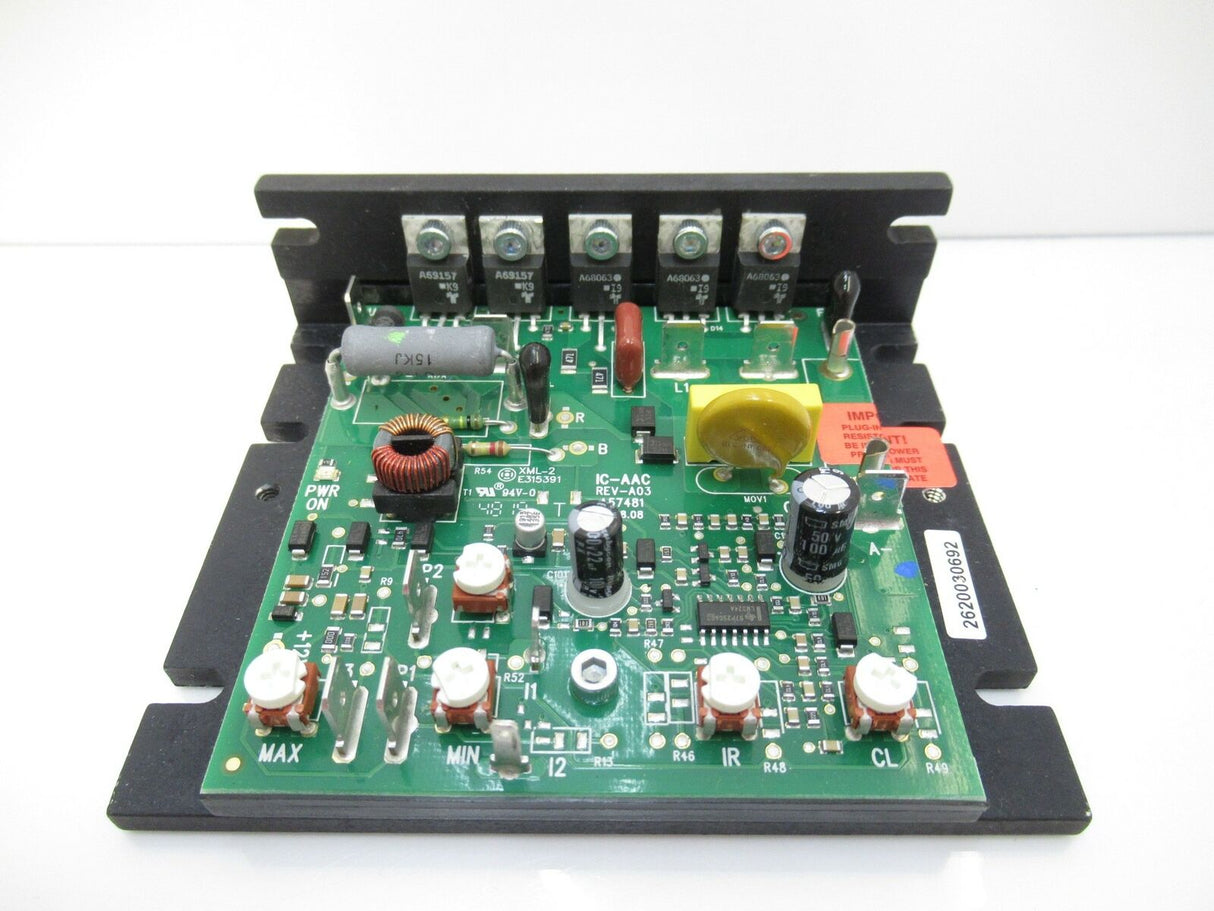

KBIC-240D 9464N KB Electronic DC Drives , Chassis

SKU DRV-0034-E
Sold out
Original price $99.28 USD - Original price $99.28 USD
Original price
$99.28 USD
$99.28 USD - $99.28 USD
Current price $99.28 USD
Availability:
Out of stock

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Product Information

  • The KBIC-240D 9464N Is An Adjustable Speed DC Drive.
  • It Will Control Motors Between 1/50-1.0 HP (2.0 HP W/aux. Heat-sink) By Inserting The Proper Plug-In Horsepower Resistor.
  • The Motor Speed Control Operates From Either 115V AC Or 230 V AC And Is Designed For 90 And Or 180VDC PM And Shunt Motors.
  • The speed Range Is 50:1 With a Load Regulation Of 1%.
  • Features Include Auto Inhibit, Voltage Following, MOV Transient Protection, 5k Speed Pot, And Trimpot Adjustments For Min, Max, Accel, IR, And CL.
  • Options Include Auxiliary Heat Sink, AC Line And Armature Fuse Kit, Barrier Terminal Board, RFI/EMI Filters, And Signal Isolation (Model SI-5).
  • Dimensions: 4.30" X 3.60" X 1.30".
