JSM-1012-20 Igus Iglide J, Sleeve Bearing, mm

SKU MOV-0696-E
Sold out
Original price $2.04 USD - Original price $2.04 USD
Original price
$2.04 USD
$2.04 USD - $2.04 USD
Current price $2.04 USD
Availability:
Out of stock

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Igus

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Condition :

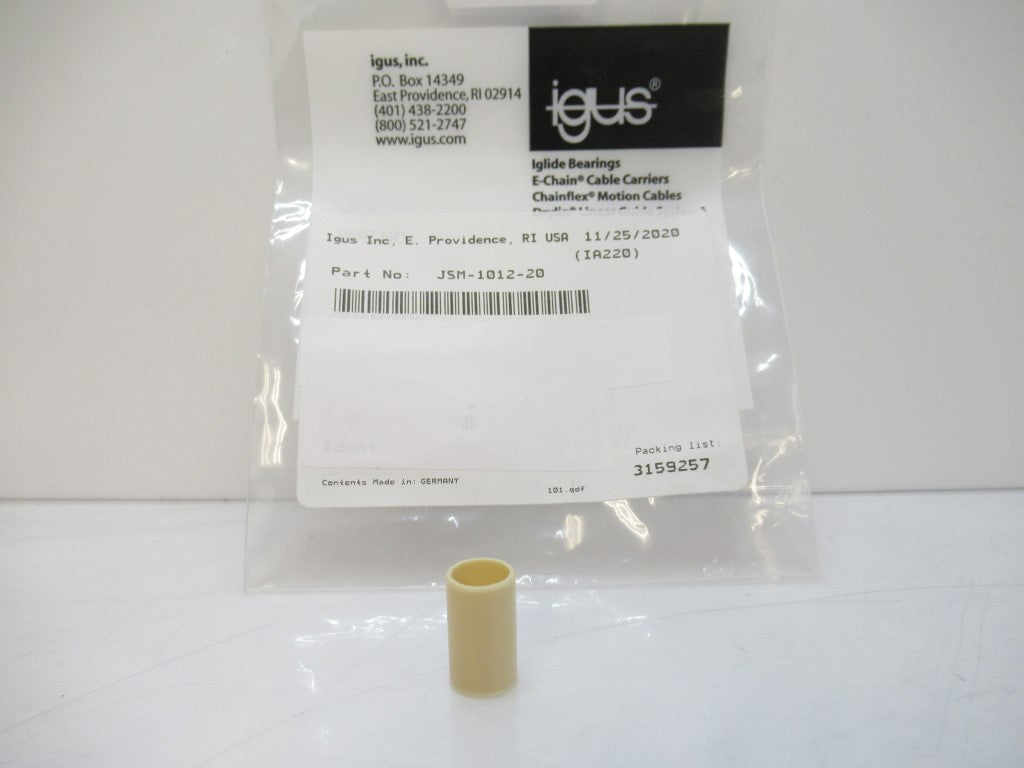

JSM-1012-20 JSM101220

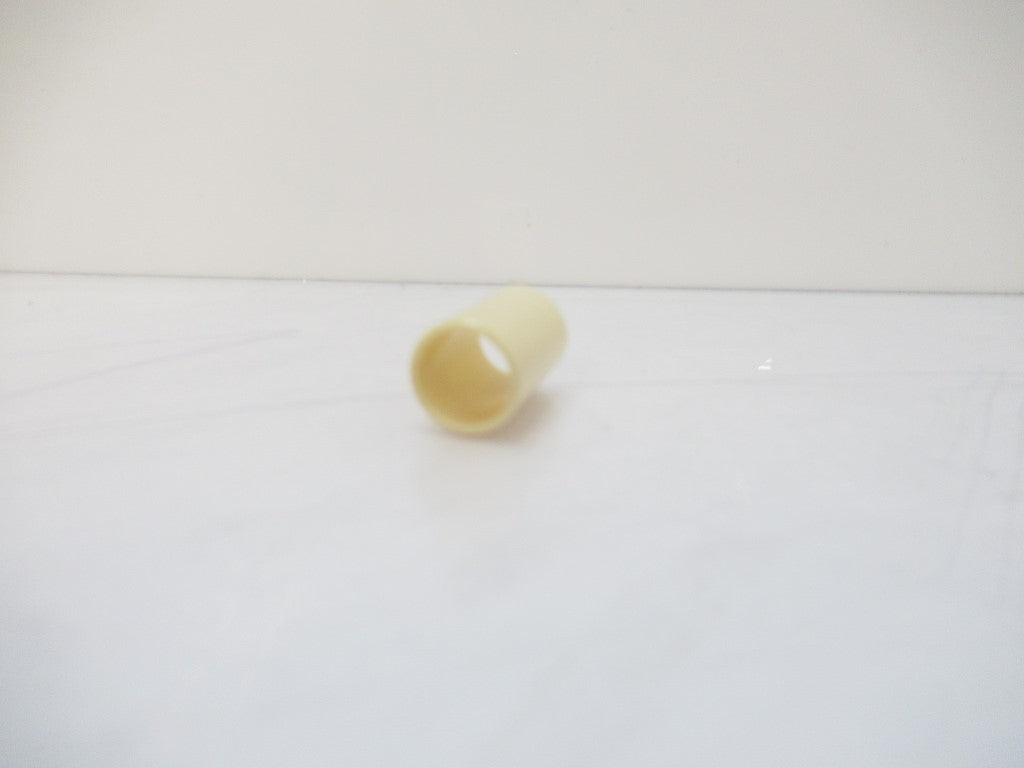

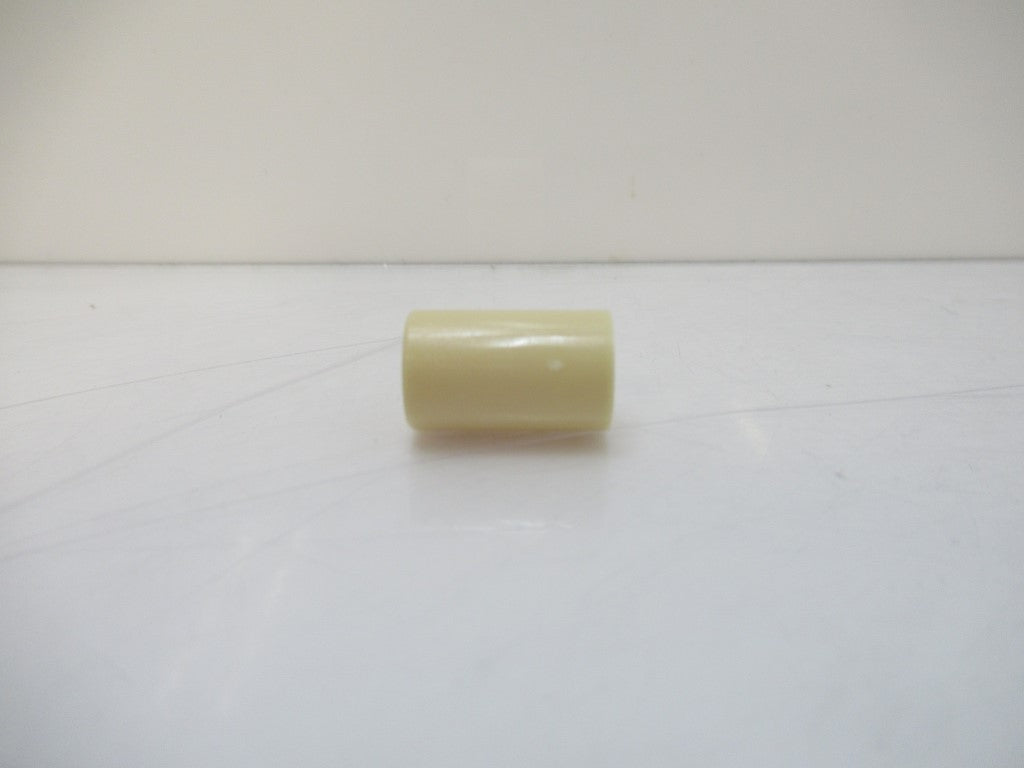

Igus Iglide J, Sleeve Bearing, mm

Sold By Unit New

  • The versatile endurance runner, highly resistant to wear on (nearly) all shafts with very low coefficients of friction
  • Low wear against different shaft materials
  • Low coefficients of friction in dry operation
  • Vibration-dampening

Dimensions

Ø d1: 10.0 mm
Outer diameter d2: 12.0 mm
Bearing length b1: 20.00 mm
Length of bevel (f):0.5 mm

Production and installation tolerances

b1-Tolerance: h13
Housing bore tolerance: 0 +0.018 mm, H7
Tolerance shaft: 0 -0.036 mm. h9
d1 after press-fit (max.): 10.083 mm
d1 after press-fit (min.): 10.025 mm
Housing bore (max.): 12.018 mm
Housing bore (min.): 12.000 mm
Shaft size (max.): 10.000 mm
Shaft size (min.): 9.964 mm
