Ifm | SKU:
IF-RN6066-E

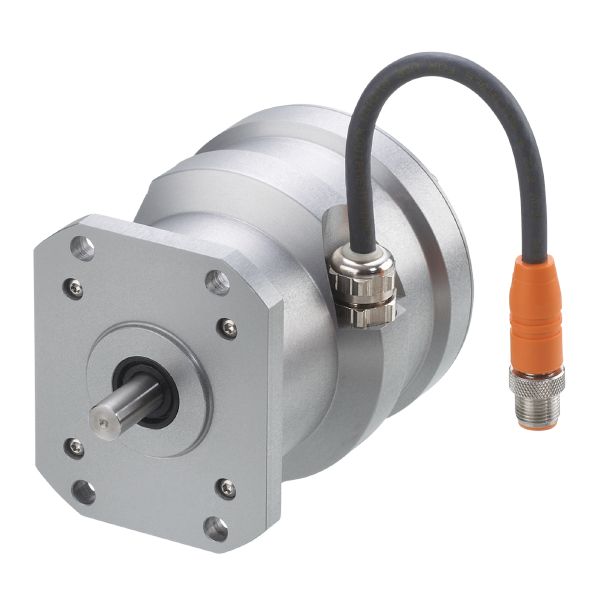

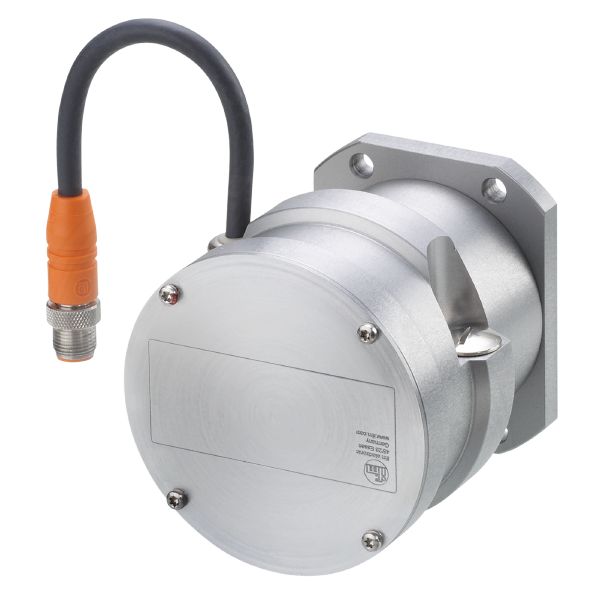

Ifm RN6066 Absolute Singleturn Single Shaft Encoder
$1,261.67 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm RN6066 Absolute Singleturn Single Shaft Encoder is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm RN6066 Absolute Singleturn Single Shaft Encoder
$1,261.67 USD
Unit price
/
Unavailable
Product characteristics
| Resolution | 8192 revolutions; 13 bit |
|---|---|
| Communication interface | SSI data interface |
| Shaft design | solid shaft |
| Shaft diameter [mm] | 10 |
Application
| Function principle | absolute |
|---|---|
| Revolution type | singleturn |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 100 |
Inputs
| Inputs | reversal of direction of rotation; reset to zero |
|---|
Outputs
| Code | Gray code; (increasing code values when turned clockwise (seen on the shaft)) |
|---|---|
| Code signal | Clock input; TTL-compatible signals; clock and clock (inv.) from drivers to RS 422; data output; synchronous serial; TTL-compatible signal data and data (inv.) |
Measuring/setting range
| Resolution | 8192 revolutions; 13 bit |
|---|
Interfaces
| Communication interface | SSI data interface |
|---|
Operating conditions
| Ambient temperature [°C] | -40...100 |
|---|---|
| Max. relative air humidity [%] | 98 |
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 289 |
Mechanical data
| Weight [g] | 1113.3 | |
|---|---|---|
| Dimensions [mm] | Ø 89 / L = 116 | |
| Material | flange: aluminum anodized; housing: aluminum anodized | |
| Max. revolution, mechanical [U/min] | 6000 | |
| Max. starting torque [Nm] | 4 | |
| Reference temperature torque [°C] | 25 | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 10 | |
| Shaft material |
|
|
| Max. shaft load axial (at the shaft end) [N] | 40 | |
| Max. shaft load radial (at the shaft end) [N] | 110 | |
| Fixing flange | Ø 89 mm |
Remarks
| Remarks |
|
|---|
Electrical connection
| Connection | Cable: 0.15 m, PUR |
|---|---|
| Connection | Connector: 1 x M12; coding: A |
Diagrams and graphs
|
|
|
|---|
