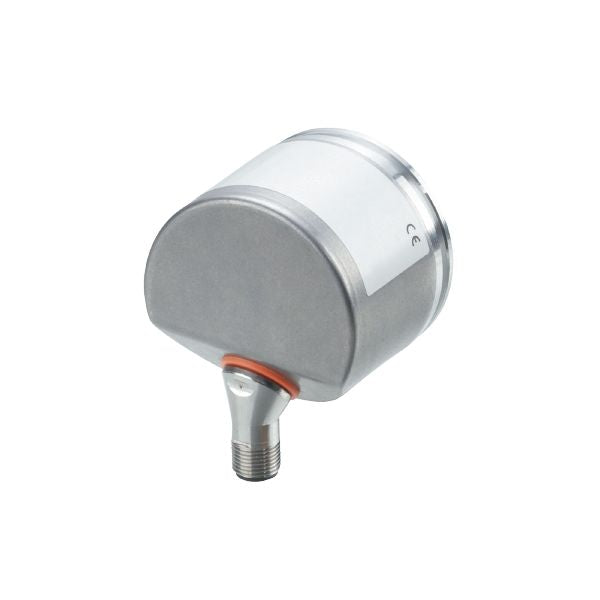

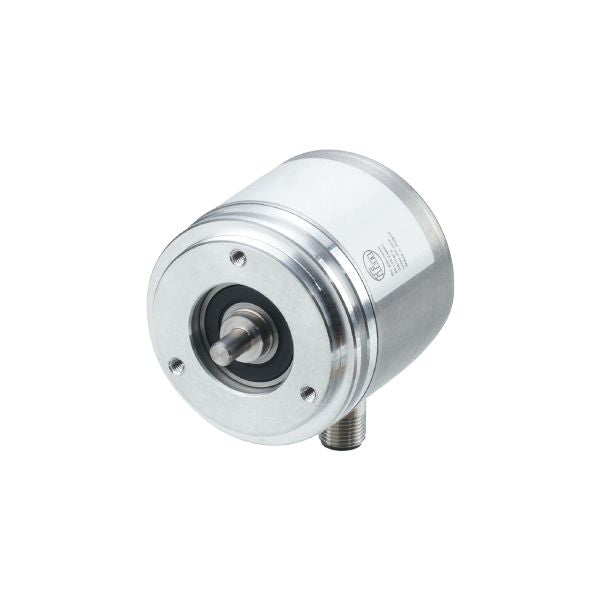

Ifm RMU400 Absolute Multiturn Encoder As 24 Bit Version
$752.22 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm RMU400 Absolute Multiturn Encoder As 24 Bit Version is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm RMU400 Absolute Multiturn Encoder As 24 Bit Version
$752.22 USD
Unit price
/
Unavailable
Product characteristics
| Resolution | 4096 steps; 4096 revolutions |
|---|---|
| Communication interface | SSI data interface |
| Shaft design | solid shaft |
| Shaft diameter [mm] | 6 |
Application
| Function principle | absolute |
|---|---|
| Detection system | magnetic |
Electrical data
| Operating voltage [V] | 4.5...30 DC |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 500 |
| Settling time [ms] | 32 |
| Max. revolution electrical [U/min] | 12000 |
Outputs
| Short-circuit protection | yes |
|---|---|
| Code | Gray code; (increasing code values when turned clockwise (seen on the shaft)) |
| Code signal | Clock input; TTL-compatible signals; clock and clock (inv.) from drivers to RS 422; data output; synchronous serial; TTL-compatible signal data and data (inv.) |
Measuring/setting range
| Resolution | 4096 steps; 4096 revolutions |
|---|
Accuracy / deviations
| Accuracy | ±0.1 INL |
|---|
Software / programming
| Parameter setting options | Zero point; Direction of rotation |
|---|
Interfaces
| Communication interface | SSI data interface |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Max. relative air humidity [%] | 95; (Condensation not permissible) |
| Protection | IP 65; (on the housing: IP67) |
Tests / approvals
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
||
| MTTF [years] | 350 |
Mechanical data
| Weight [g] | 348.1 | |
|---|---|---|
| Dimensions [mm] | Ø 58 / L = 63.5 | |
| Material | flange: aluminum; housing: stainless steel (1.4521 / 444) | |
| Max. revolution, mechanical [U/min] | 12000 | |
| Max. starting torque [Nm] | 1 | |
| Reference temperature torque [°C] | 20 | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 6 | |
| Shaft material |
|
|
| Max. shaft load axial (at the shaft end) [N] | 40 | |
| Max. shaft load radial (at the shaft end) [N] | 60 | |
| Fixing flange | Synchro-flange |
Electrical connection - plug
| Connector: 1 x M12, radial, can also be used axially; coding: A; Moulded body: stainless steel (1.4401 / 316); Maximum cable length: 100 m |
Diagrams and graphs
|
Pulse diagram
|
|
|---|
