Ifm | SKU:
IF-RMU200-E

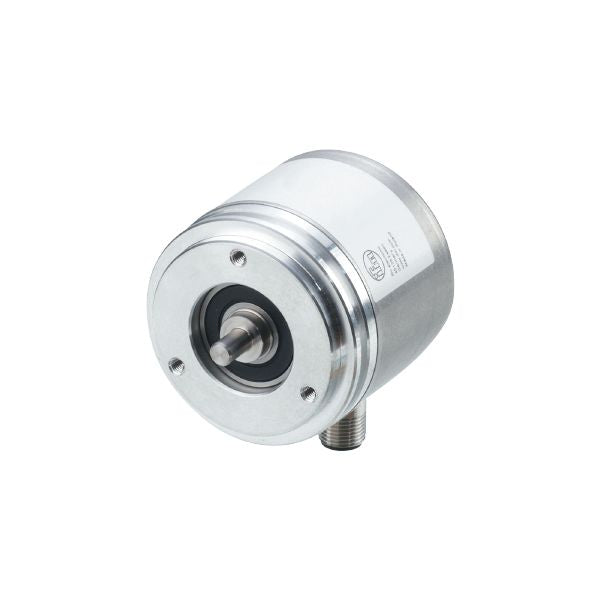

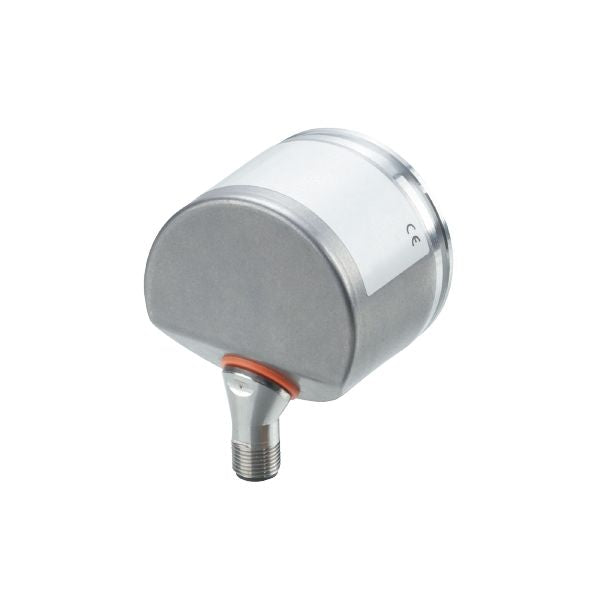

Ifm RMU200 Analog 13 Bit Multiturn Encoder With 0...10 V Output
$657.22 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm RMU200 Analog 13 Bit Multiturn Encoder With 0...10 V Output is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm RMU200 Analog 13 Bit Multiturn Encoder With 0...10 V Output
$657.22 USD
Unit price
/
Unavailable
Product characteristics
| Resolution | 8192 steps; 16 revolutions; 17 bit |
|---|---|
| Shaft design | solid shaft |
| Shaft diameter [mm] | 6 |
Application
| Function principle | absolute |
|---|---|
| Detection system | magnetic |
Electrical data
| Operating voltage [V] | 8...30 DC |
|---|---|
| Current consumption [mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 500 |
| Settling time [ms] | 32 |
| Max. revolution electrical [U/min] | 12000 |
Inputs / outputs
| Number of inputs and outputs | Number of analog outputs: 1 |
|---|
Outputs
| Number of analog outputs | 1 |
|---|---|
| Analog voltage output [V] | 0...10 |
| Min. load resistance [Ω] | 5000 |
| Short-circuit protection | yes |
Measuring/setting range
| Resolution | 8192 steps; 16 revolutions; 17 bit |
|---|
Accuracy / deviations
| Accuracy | 10 V ± 10 mV; (Accuracy INL: ± 0.1) |
|---|---|
| Linearity deviation | ± 0,15 % FSO |
Software / programming
| Parameter setting options | start position; end position; central position |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Max. relative air humidity [%] | 95; (Condensation not permissible) |
| Protection | IP 65; (on the housing: IP67) |
Tests / approvals
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
||
| MTTF [years] | 258 | ||
| UL approval |
|
Mechanical data
| Weight [g] | 347.5 | |
|---|---|---|
| Dimensions [mm] | Ø 58 / L = 63.5 | |
| Material | flange: aluminum; housing: stainless steel (1.4521 / 444) | |
| Max. revolution, mechanical [U/min] | 12000 | |
| Max. starting torque [Nm] | 1 | |
| Reference temperature torque [°C] | 20 | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 6 | |
| Shaft material |
|
|
| Max. shaft load axial (at the shaft end) [N] | 40 | |
| Max. shaft load radial (at the shaft end) [N] | 60 | |
| Fixing flange | Synchro-flange |
Electrical connection - plug
| Connector: 1 x M12, radial, can also be used axially; coding: A; Moulded body: stainless steel (1.4401 / 316); Maximum cable length: 100 m |
