Ifm | SKU:
IF-RMS005-E

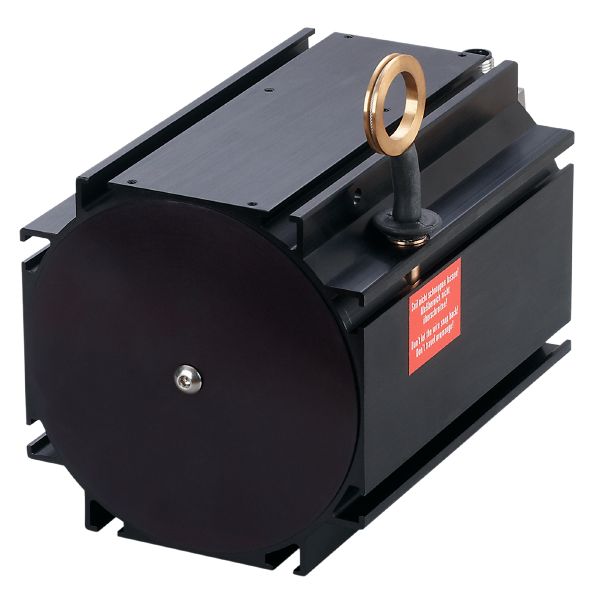

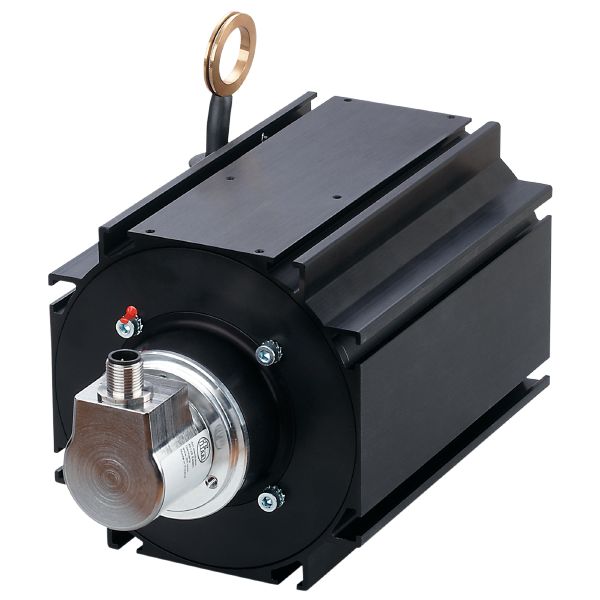

Ifm RMS005 Draw Wire Encoder
$1,946.11 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm RMS005 Draw Wire Encoder is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm RMS005 Draw Wire Encoder
$1,946.11 USD
Unit price
/
Unavailable
Product characteristics
| Resolution | 4096 steps; 4096 revolutions; 24 bit |
|---|---|
| Communication interface | CAN |
Application
| Function principle | absolute |
|---|---|
| Detection system | magnetic |
| Application | encoder |
Electrical data
| Operating voltage [V] | 9...30 DC |
|---|---|
| Current consumption [mA] | 50...100 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 500 |
| Settling time [ms] | 32 |
Outputs
| Short-circuit proof | yes |
|---|---|
| Code | binary |
Measuring/setting range
| Resolution | 4096 steps; 4096 revolutions; 24 bit |
|---|
Accuracy / deviations
| Repeatability | ± 0,001 % FSO |
|---|
Software / programming
| Parameter setting options | CAN parameter; scaling; preset; Baud rate; Direction of rotation; Node ID |
|---|
Interfaces
| Communication interface | CAN | ||
|---|---|---|---|
| Protocol | CANopen | ||
| Factory settings |
|
||
| Version | DSP - 406 V3.1; DS 301 V4.02; DS 306 V2.0 |
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|---|
| Storage temperature [°C] | -20...80 |
| Max. relative air humidity [%] | 95; (Condensation not permissible) |
| Protection | IP 64; (on the housing: IP 65) |
Tests / approvals
| MTTF [years] | 240 |
|---|
Mechanical data
| Weight [g] | 3684.5 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | housing: steel; wire drum: aluminum; plastics; wire: stainless steel polyamide coated | ||||||||||||
| Max. measuring length [mm] | 10000 | ||||||||||||
| Wire drum circumference [mm] | 315 | ||||||||||||
| Wire diameter [mm] | 1 | ||||||||||||
| Wire connection | Ø 20,2 mm; (eyelet) | ||||||||||||
| Wire properties |
|
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Connector: 1 x M12, can be used radially; coding: A |
