Ifm | SKU:
IF-RM3011-E

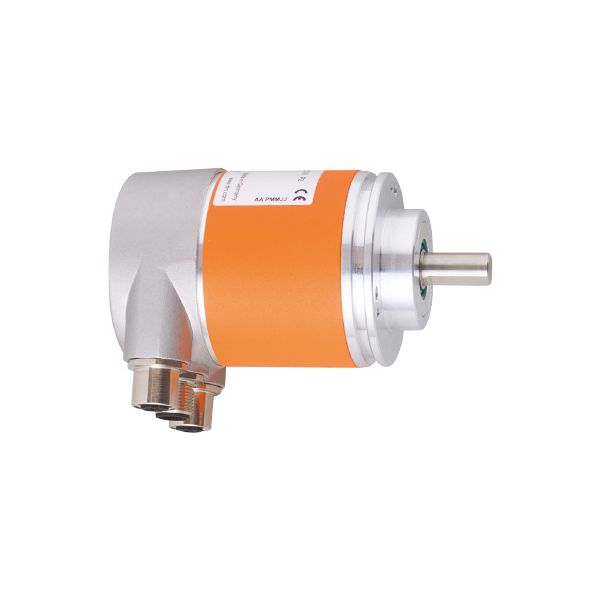

Ifm RM3011 Absolute Multiturn Encoder With Solid Shaft
$1,110.56 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm RM3011 Absolute Multiturn Encoder With Solid Shaft is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm RM3011 Absolute Multiturn Encoder With Solid Shaft
$1,110.56 USD
Unit price
/
Unavailable
Product characteristics
| Resolution | 8192 steps; 4096 revolutions; 25 bit |
|---|---|
| Communication interface | ProfiNet-IO; PROFINET encoder profile V4.2 |
| Shaft design | solid shaft |
| Shaft diameter [mm] | 10 |
Application
| Function principle | absolute |
|---|---|
| Revolution type | multiturn |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 100; ((24 V)) |
| Reverse polarity protection | yes |
Outputs
| Short-circuit protection | yes |
|---|---|
| Code | binary |
Measuring/setting range
| Resolution | 8192 steps; 4096 revolutions; 25 bit |
|---|
Accuracy / deviations
14 - 16 Bits
| Accuracy [°] | 0.0439 |
|---|
<13 Bits
| Accuracy [°] | 0.022 |
|---|
Software / programming
| Parameter setting options | resolution per revolution; total resolution; Direction of rotation; preset value; provision of a speed value; IP address; MRP; MRPD; rotational axis |
|---|---|
| Addressing | Software |
Interfaces
| Communication interface | ProfiNet-IO; PROFINET encoder profile V4.2 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Max. relative air humidity [%] | 98; (Condensation not permissible) |
| Protection | IP 67; (on the housing: IP 67; on the shaft: IP 67) |
Tests / approvals
| Shock resistance |
|
||
|---|---|---|---|
| Continuous shock resistance |
|
||
| Vibration resistance |
|
||
| MTTF [years] | 95 |
Mechanical data
| Weight [g] | 558 | |
|---|---|---|
| Dimensions [mm] | Ø 58 / L = 110 | |
| Material | aluminum | |
| Max. revolution, mechanical [U/min] | 3000 | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 10 | |
| Shaft material |
|
|
| Max. shaft load axial (at the shaft end) [N] | 40 | |
| Max. shaft load radial (at the shaft end) [N] | 110 | |
| Fixing flange | Clamping flange |
Electrical connection - Ethernet
| Connector: 1 x M12; coding: D |
Electrical connection - voltage supply
| Connector: 1 x M12; coding: A |
