Ifm | SKU:
IF-RM3008-E

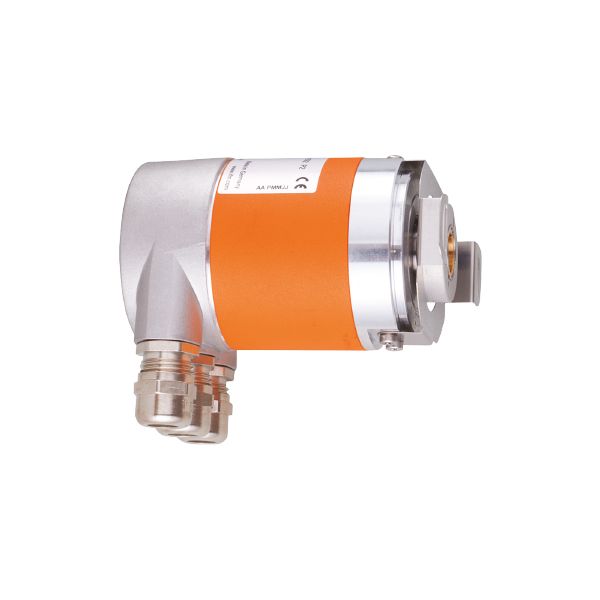

Ifm RM3008 Absolute Multiturn Encoder With Hollow Shaft
$1,128.33 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm RM3008 Absolute Multiturn Encoder With Hollow Shaft is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm RM3008 Absolute Multiturn Encoder With Hollow Shaft
$1,128.33 USD
Unit price
/
Unavailable
Product characteristics
| Resolution | 8192 steps; 4096 revolutions; 25 bit |
|---|---|
| Communication interface | PROFIBUS DP |
| Shaft design | hollow shaft open to one side |
| Shaft diameter [mm] | 12 |
Application
| Function principle | absolute |
|---|---|
| Revolution type | multiturn |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 100; ((24 V)) |
| Reverse polarity protection | yes |
Outputs
| Code | binary |
|---|
Measuring/setting range
| Resolution | 8192 steps; 4096 revolutions; 25 bit |
|---|
Software / programming
| Parameter setting options | counting direction of the code values; Resolution; Zero point; limit switches HI and LO; motion indicator; separation multiturn/singleturn |
|---|---|
| Diagnostic functions | alarms; warnings; status; serial number of the encoder |
| Addressing | address selector switch; 0...126 |
Interfaces
| Communication interface | PROFIBUS DP |
|---|
PROFIBUS DP
| Transmission standard | DPV2 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Max. relative air humidity [%] | 98 |
| Protection | IP 67; (on the housing: IP 67; on the shaft: IP 67) |
Tests / approvals
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
||
| MTTF [years] | 13.5 |
Mechanical data
| Weight [g] | 648 | |
|---|---|---|
| Dimensions [mm] | Ø 58.5 / L = 99 | |
| Material | aluminum; clamping ring: brass | |
| Max. revolution, mechanical [U/min] | 12000 | |
| Shaft design | hollow shaft open to one side | |
| Shaft diameter [mm] | 12 | |
| Shaft material |
|
|
| Max. shaft load axial (at the shaft end) [N] | 40 | |
| Max. shaft load radial (at the shaft end) [N] | 110 | |
| Fixing flange | Stator coupling |
Electrical connection
| Terminal strip in the terminal chamber: |
