Ifm | SKU:
IF-OGD550-E

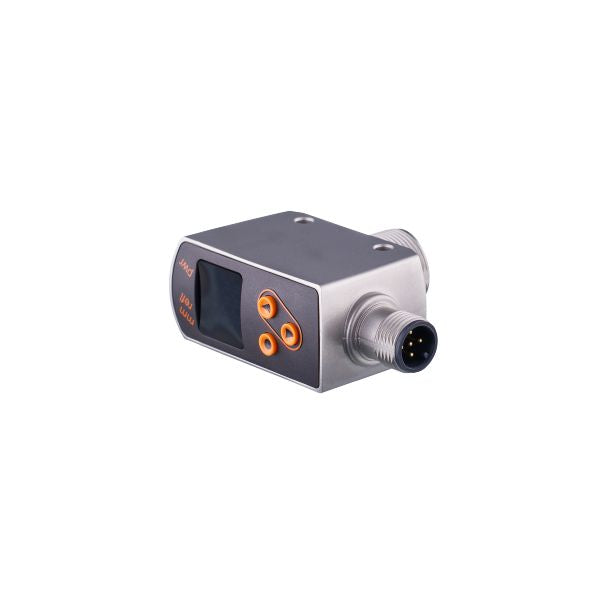

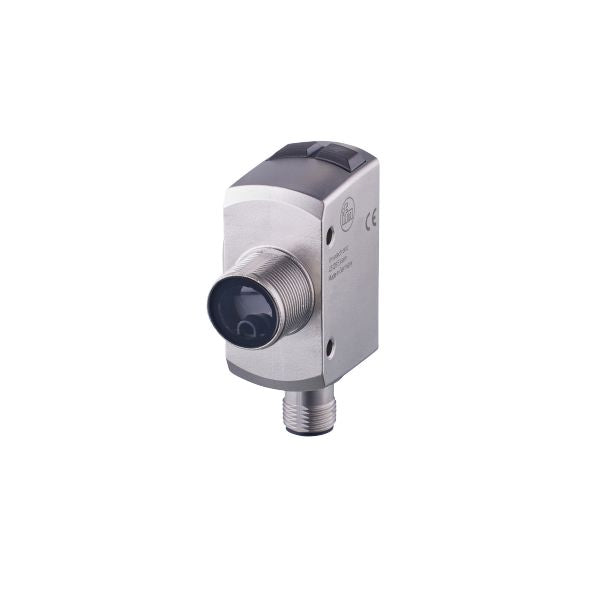

Ifm OGD550 Laser Distance Sensor
$377.78 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm OGD550 Laser Distance Sensor is backordered and will ship as soon as it is back in stock.
As a Canadian company, any product manufactured in China and imported into the United States will be subject to a 175% tariff.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm OGD550 Laser Distance Sensor
$377.78 USD
Unit price
/
Unavailable
Product characteristics
| Type of light | red light |
|---|---|
| Laser protection class | 1 |
| Housing | rectangular with M18 thread |
Electrical data
| Operating voltage [V] | 10...30 DC; (cULus - Class 2 source required) |
|---|---|
| Current consumption [mA] | 45; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 650 |
Inputs
| Inputs | Laser On/ Off |
|---|
Outputs
| Electrical design | PNP/NPN; (configurable) |
|---|---|
| Output function | 2 x normally open / normally closed; (configurable) |
| Max. current load per output [mA] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Operating mode: FINE
| Switching frequency DC [Hz] | 20 |
|---|
Operating mode: STD
| Switching frequency DC [Hz] | 40 |
|---|
Operating mode: FAST
| Switching frequency DC [Hz] | 60 |
|---|
Monitoring range
| Max. light spot diameter [mm] | 5 |
|---|---|
| Light spot dimensions refer to | at maximum range |
| Background suppression [m] | < 20 |
Measuring/setting range
| Setting range object reflectivity [%] | 6...900; (reflectivity; 6 % black paper; 100 % white paper) |
|---|
Operating mode: FINE
| Measuring range [m] | 0.05...2 |
|---|---|
| Sampling rate [Hz] | 60 |
Operating mode: STD
| Measuring range [m] | 0.05...2 |
|---|---|
| Sampling rate [Hz] | 120 |
Operating mode: FAST
| Measuring range [m] | 0.05...1 |
|---|---|
| Sampling rate [Hz] | 180 |
Software / programming
| Parameter setting options | Distance / reflectivity; hysteresis / window; Sensitivität; current/voltage output; Sequence modulation to avoid mutual interference by similar sensors |
|---|
Interfaces
| Communication interface | IO-Link | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||||||
| IO-Link revision | 1.1.3 | ||||||||
| SDCI standard | IEC 61131-9 | ||||||||
| Profiles | Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis | ||||||||
| SIO mode | yes | ||||||||
| Required master port class | A | ||||||||
| Min. process cycle time [ms] | 5 | ||||||||
| IO-Link process data (cyclical) |
|
||||||||
| IO-Link functions (acyclical) | application specific tag; operating hours counter; switching cycles counter | ||||||||
| Supported DeviceIDs |
|
||||||||
| Note |
|
Operating conditions
| Ambient temperature [°C] | -25...60 | ||
|---|---|---|---|
| Note on ambient temperature |
|
||
| Storage temperature [°C] | -30...80 | ||
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Laser protection class | 1 | ||||||||||
| Notes on laser protection |
|
||||||||||
| MTTF [years] | 319 | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 133.13 |
|---|---|
| Housing |
