Ifm | SKU:
IF-IM5141-E

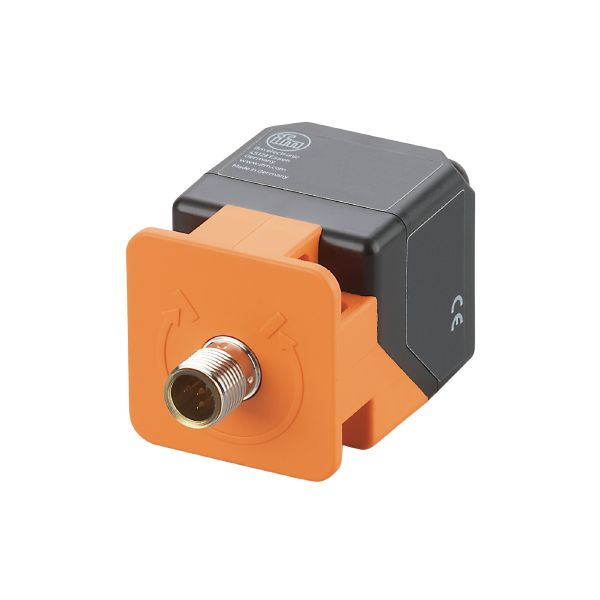

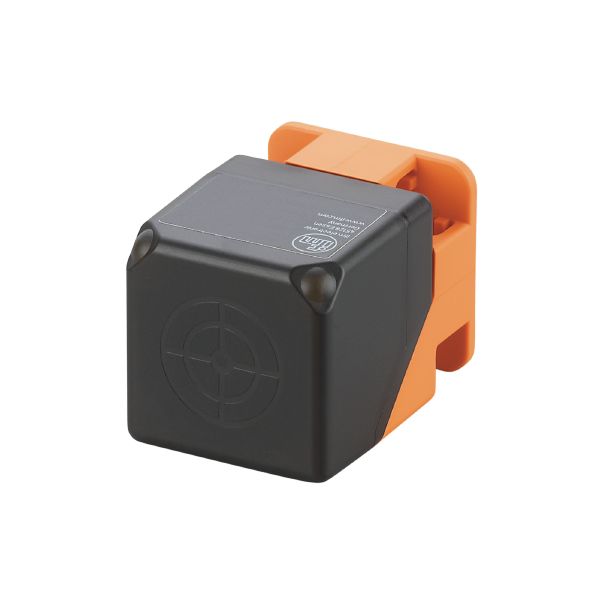

Ifm IM5141 Inductive Analog Sensor With Io-Link
$167.22 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm IM5141 Inductive Analog Sensor With Io-Link is backordered and will ship as soon as it is back in stock.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm IM5141 Inductive Analog Sensor With Io-Link
$167.22 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP/NPN; (configurable) |
|---|---|
| Output function | normally open / closed; (configurable) |
| Communication interface | IO-Link |
| Housing | rectangular |
| Dimensions [mm] | 40 x 40 x 54 |
Electrical data
| Operating voltage [V] | 15...30 DC |
|---|---|
| Current consumption [mA] | < 33 |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN; (configurable) |
|---|---|
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 100 |
| Analog current output [mA] | 4...20; (linear; gradient: 0,64 mA/mm; for frontal approach and for target made of mild steel: 90 x 90 x 1 mm) |
| Max. load [Ω] | 500; (Ub <=18 V;; Max. load <=400 Ω) |
| Short-circuit protection | yes |
| Overload protection | yes |
Monitoring range
| Measuring range [mm] | 1...26 |
|---|---|
| Switch point IO-Link [mm] | 3.44...24.2 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3 | |
|---|---|---|
| Hysteresis [% of Sr] | 3...15 | |
| Note on hysteresis |
|
|
| Linearity error of analog output [%] | ± 2; (of the final value of the measuring range) | |
| Repeatability analog output [%] | ± 2; (of the final value of the measuring range) | |
| Temperature coefficient [%/K vom MEW] | ±0,15 | |
| Temperature drift | ± 5 %; (of the final value of the measuring range) |
Reaction times
| Response time [ms] | < 20 |
|---|
Interfaces
| Communication interface | IO-Link | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||||||
| IO-Link revision | 1.1 | ||||||||
| SDCI standard | IEC 61131-9 | ||||||||
| Profiles | Smart Sensor: Identification and diagnosis; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Teach Channel | ||||||||
| SIO mode | yes | ||||||||
| Required master port class | A | ||||||||
| Min. process cycle time [ms] | 3.2 | ||||||||
| IO-Link process data (cyclical) |
|
||||||||
| IO-Link functions (acyclical) | switching cycles counter; switch-on cycle counter; operating hours counter; internal temperature; application specific tag | ||||||||
| Supported DeviceIDs |
|
||||||||
| Note |
|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 232 | ||||||||||
| Embedded software included | yes | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 157.5 |
|---|---|
| Housing | rectangular |
| Sensing face | 5 positions selectable |
| Mounting | non-flush mountable |
| Dimensions [mm] | 40 x 40 x 54 |
| Material | PA; brass white bronze coated |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
