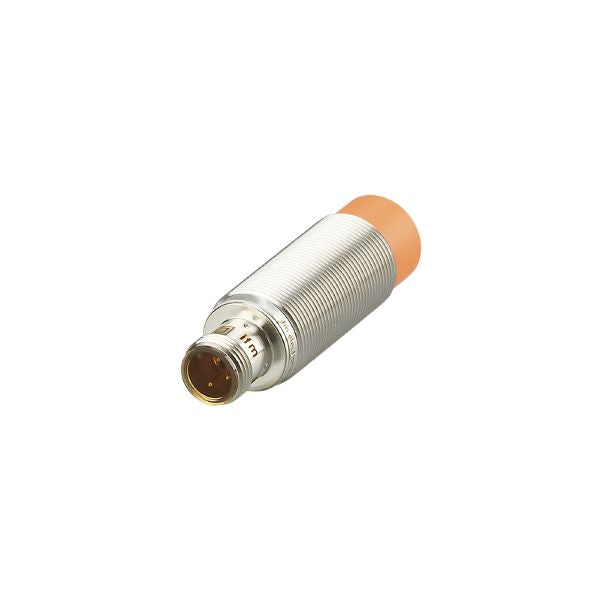

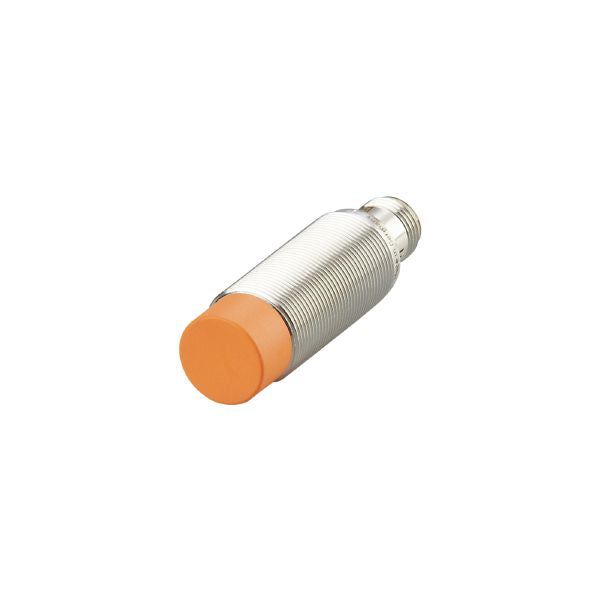

Ifm IG6616 Inductive Sensor With Io-Link
Country Of Origin:
| Electrical design | PNP/NPN; (configurable) |
|---|---|
| Output function | normally open / closed; (selectable) |
| Communication interface | IO-Link |
| Housing | Threaded type |
| Dimensions [mm] | M18 x 1 / L = 60 |
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
| Electrical design | PNP/NPN; (configurable) |
|---|---|
| Output function | normally open / closed; (selectable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 300 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Switch point IO-Link [mm] | 2.4...12.1; (configurable) |
|---|---|
| Measuring range IO-Link [mm] | 1.3...13 |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.5 / copper: 0.4 |
|---|---|
| Hysteresis [% of Sr] | 3...15 |
| Linearity error of analog output [%] | ± 2 %; (of the final value of the measuring range) |
| Repeatability analog output [%] | ± 1 %; (of the final value of the measuring range) |
| Temperature coefficient | ± 0,3 %/K; (of the final value of the measuring range) |
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 CDV | ||||
| Profiles | Smart Sensor: Device Identification; Device Diagnosis; Device Teach Channel; Binary Data Channel; Process Data Variable | ||||
| SIO mode | yes | ||||
| Required master port class | A | ||||
| Min. process cycle time [ms] | 3 | ||||
| Supported DeviceIDs |
|
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K |
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||||||
| Shock resistance |
|
||||||||||
| Continuous shock resistance |
|
||||||||||
| Fast temperature changes |
|
||||||||||
| MTTF [years] | 664 | ||||||||||
| Embedded software included | yes | ||||||||||
| UL approval |
|
| Weight [g] | 46 |
|---|---|
| Housing | Threaded type |
| Mounting | non-flush mountable |
| Dimensions [mm] | M18 x 1 / L = 60 |
| Thread designation | M18 x 1 |
| Material | brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated |
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connector: 1 x M12; coding: A |
