Ifm | SKU:
IF-CR1077-E

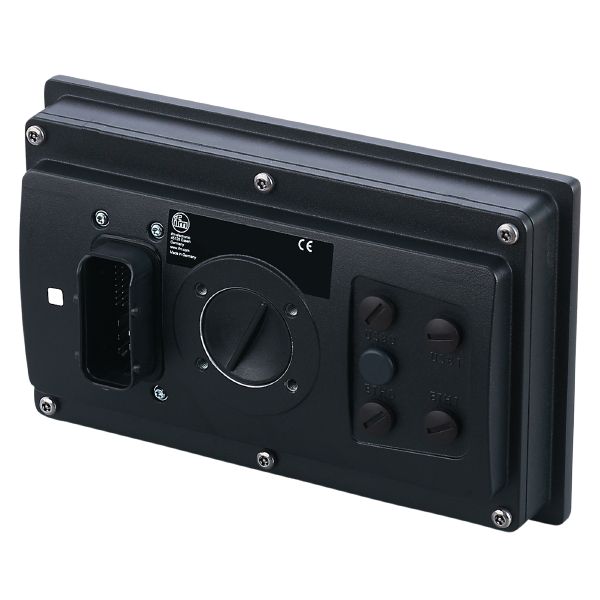

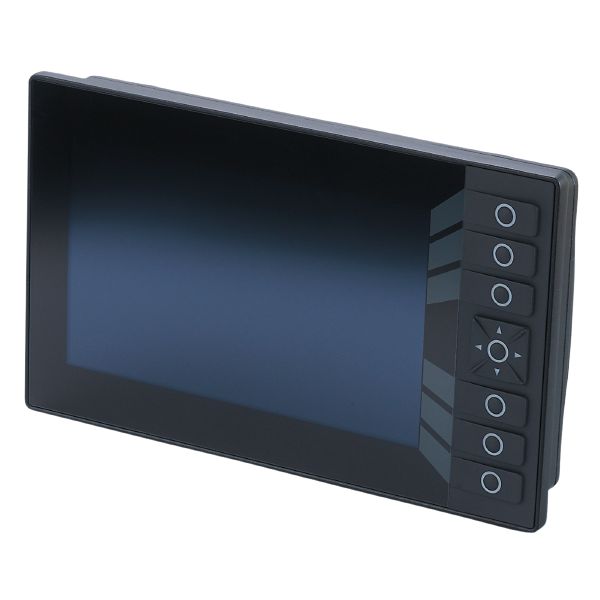

Ifm CR1077 Programmable Graphic Display For Controlling Mobile Machines
$3,004.44 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm CR1077 Programmable Graphic Display For Controlling Mobile Machines is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm CR1077 Programmable Graphic Display For Controlling Mobile Mach...
$3,004.44 USD
Unit price
/
Unavailable
Electrical data
| Operating voltage [V] | 8...32 DC |
|---|---|
| Nominal voltage DC [V] | 12 / 24 |
| Current consumption [mA] | < 5000 |
| Power consumption [W] | 27 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2; Number of digital outputs: 2 |
|---|
Inputs
| Number of digital inputs | 2 |
|---|---|
| Number of video inputs | 4; (analog) |
| Video input | 1 Vss, 75 Ohm, PAL, NTSC |
| Audio input | Stereo Line-In; -10 dBV (= 0,316 V); Max 0 dBV (= 1 V) |
Outputs
| Number of digital outputs | 2 |
|---|---|
| Max. current load per output [mA] | 2500 |
| Switching frequency DC [Hz] | < 20 |
| Audio output | Stereo Class D; 1W; 8 Ω; BTL |
Software / programming
| Parameter setting options | CODESYS 3.5 |
|---|---|
| PLC function to IEC 61131-3 | yes |
| Operating system | Embedded Linux 4.14 |
Interfaces
| Communication interface | Ethernet; CAN; USB |
|---|---|
| Number of CAN interfaces | 4 |
| Number of Ethernet interfaces | 2 |
| Number of USB interfaces | 2 |
CAN
| Transmission rate | 20 kBit/s... 1 MBit/s | |
|---|---|---|
| Protocol | CANopen; SAE J1939; free protocol | |
| Profile | CiA DS 301 Version 4; CiA DS 401 Version 1.4 | |
| Interface | CAN Interface 2.0 A/B ISO 11898 | |
| Factory settings |
|
Ethernet
| Transmission standard | 10Base-T; 100Base-TX | |
|---|---|---|
| Transmission rate | 100 MBit/s | |
| Protocol | TCP/IP; UDP; Modbus TCP; OPC UA; EtherNet/IP | |
| Note on interfaces |
|
USB
| Transmission rate | < 480 MBit/s |
|---|---|
| Version | 2.0 |
Operating conditions
| Ambient temperature [°C] | -35...60 | ||||
|---|---|---|---|---|---|
| Note on ambient temperature |
|
||||
| Storage temperature [°C] | -35...85 | ||||
| Max. relative air humidity [%] | 90; (non condensing) | ||||
| Max. height above sea level [m] | 3000 | ||||
| Protection | IP 65; IP 67; (for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67) | ||||
| Degree of soiling | 2 | ||||
| Chemical media |
|
Tests / approvals
| EMC |
|
||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Continuous shock resistance |
|
||||||||||||||||||||||||
| Fast temperature changes |
|
||||||||||||||||||||||||
| Vibration resistance |
|
||||||||||||||||||||||||
| Salt spray test |
|
||||||||||||||||||||||||
| MTTF [years] | 37 | ||||||||||||||||||||||||
| Railway applications |
|
Mechanical data
| Weight [g] | 1512 |
|---|---|
| Type of mounting | for mounting base |
| Dimensions [mm] | 223.6 x 137.4 x 46.5 |
| Material | housing: diecast aluminium powd |
