97060A301 Metric Press-Fit Drill Bushing 10mm ID, 15mm OD, 12mm Long

SKU BUSH-0234-E
Original price $10.60 USD - Original price $10.60 USD
Original price
$10.60 USD
$10.60 USD - $10.60 USD
Current price $10.60 USD
Availability:
Only 4 left!

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

97060A301

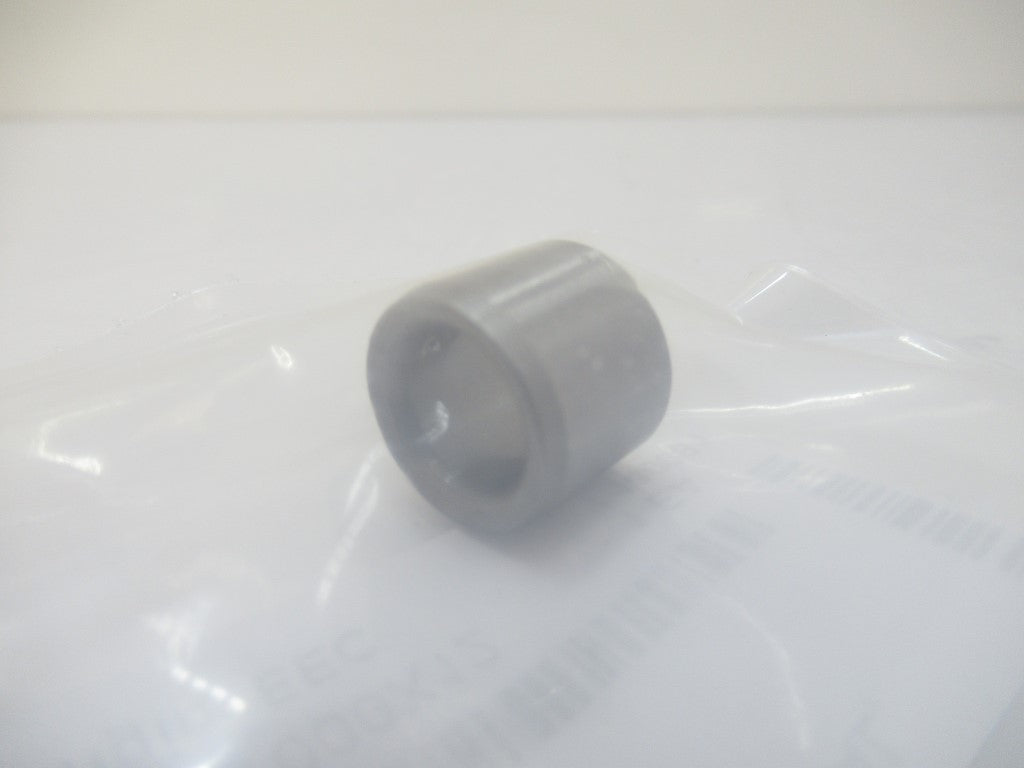

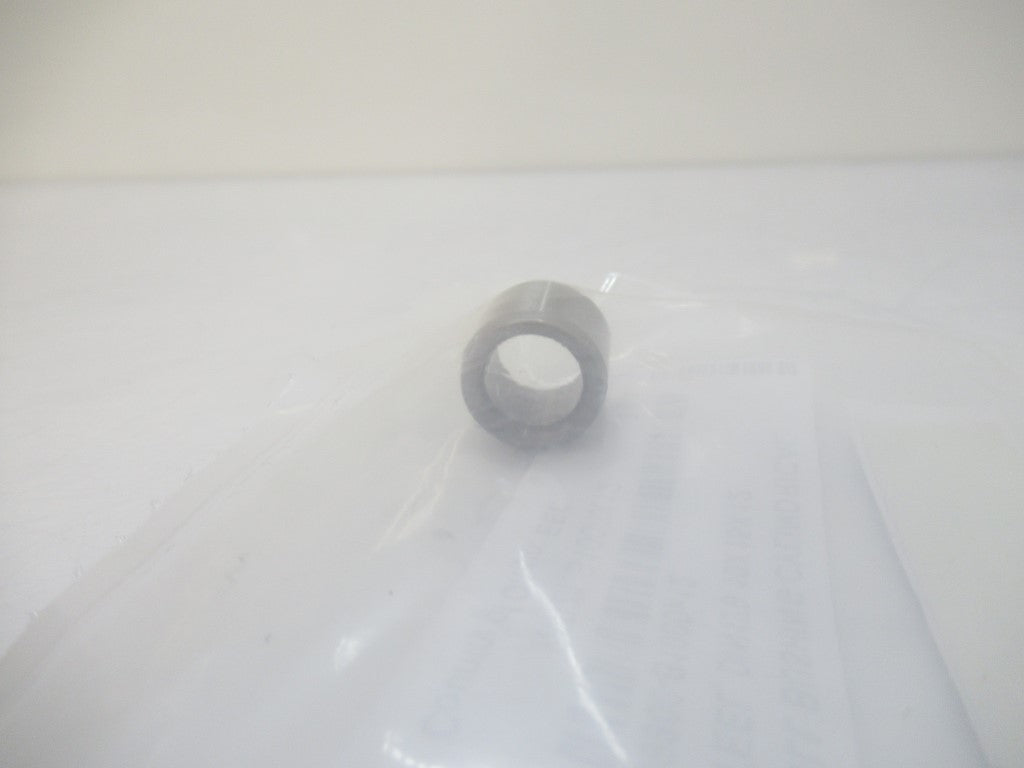

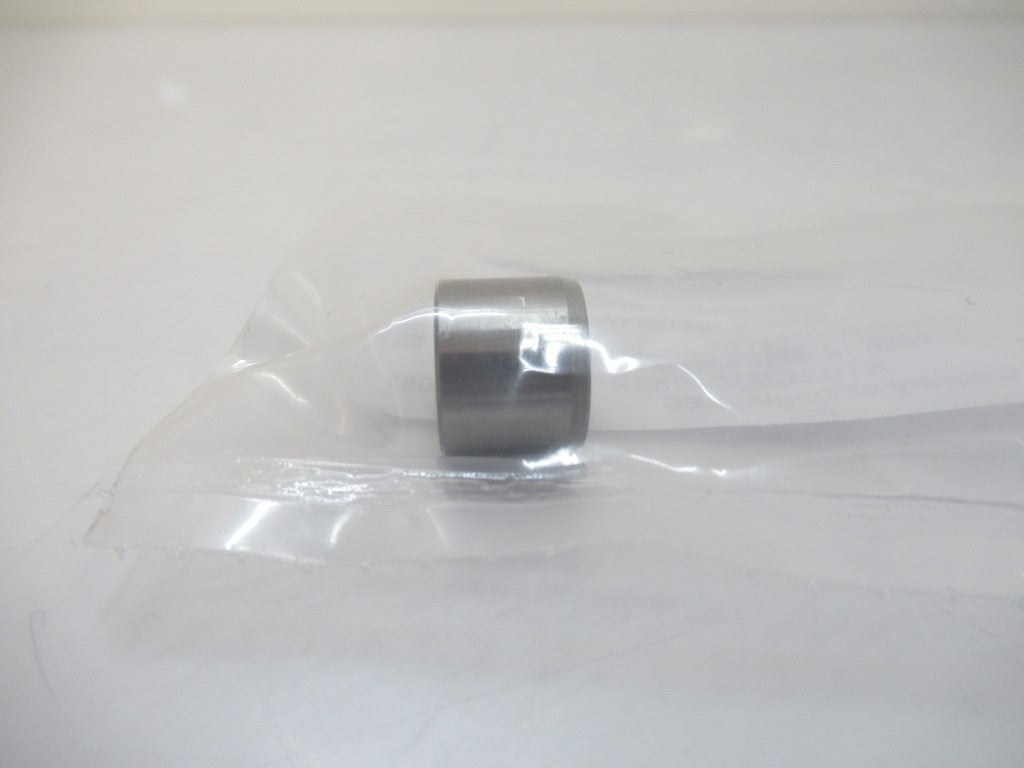

Metric Press-Fit Drill Bushing

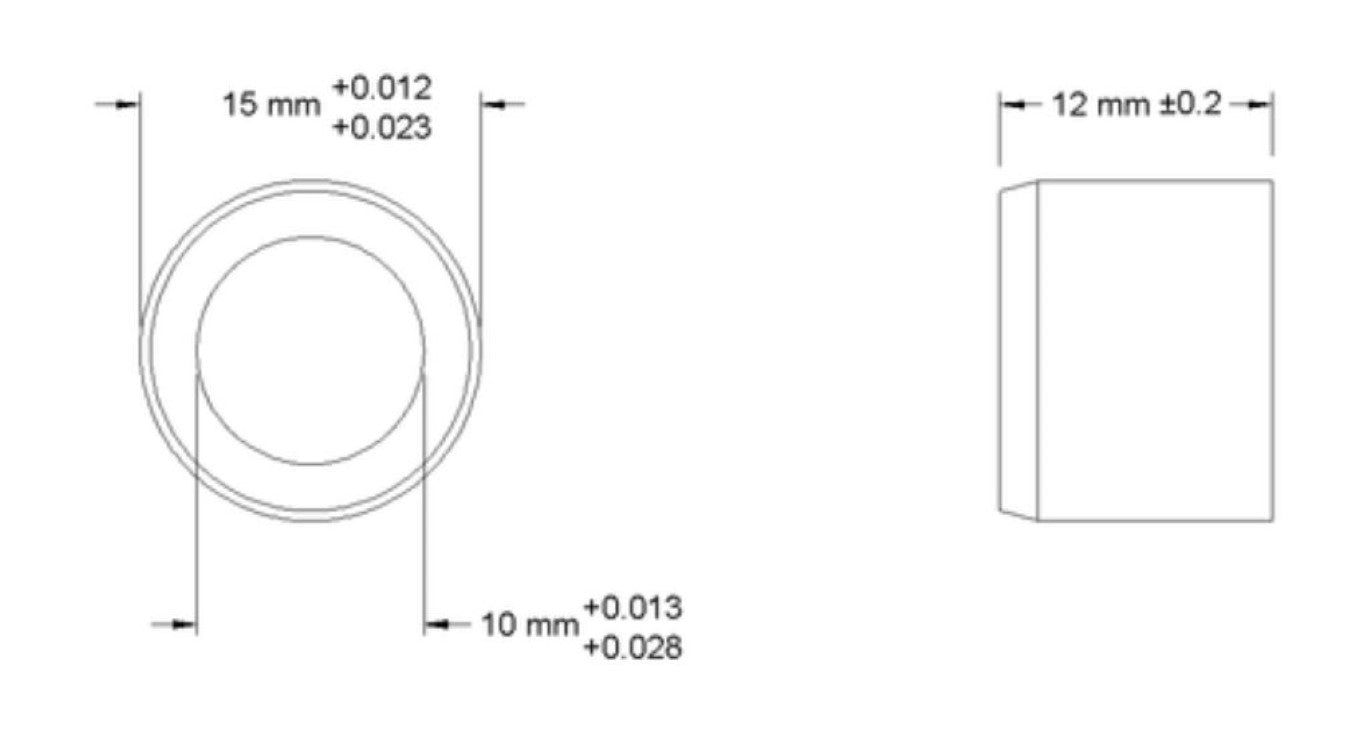

10 mm ID, 15 mm OD, 12 mm Long, Chamfer on Both Ends

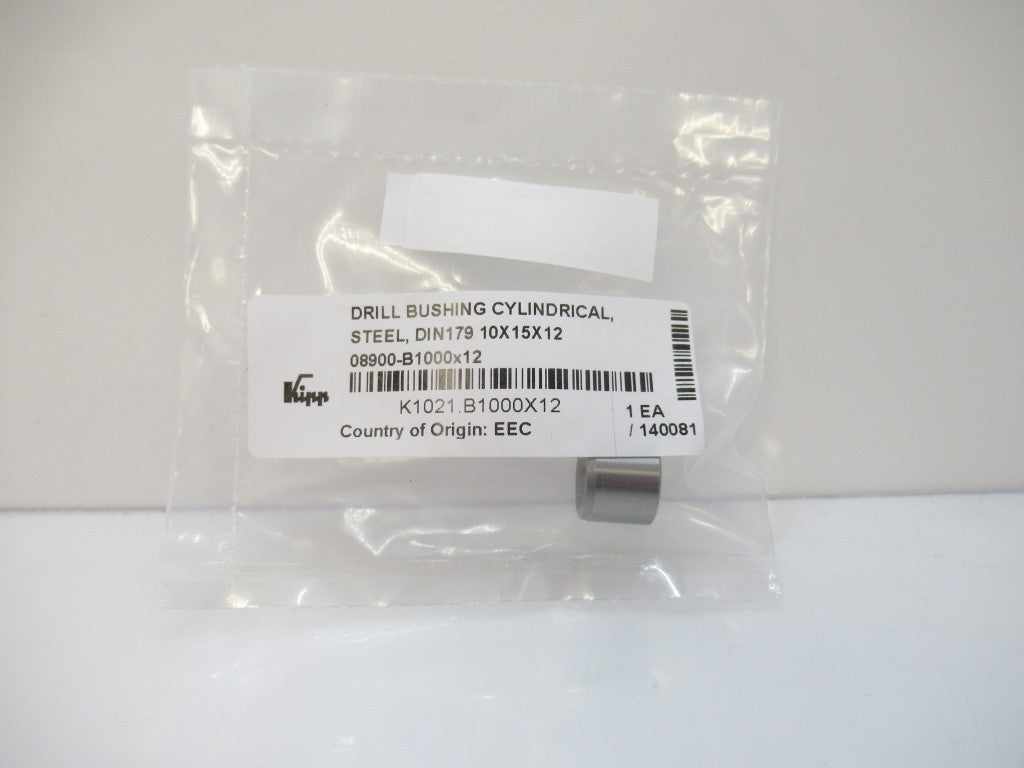

(New In Bag)

Description

  • Installation Type: Permanent
  • Drill Bushing Style: Smooth
  • ID: 10 mm
  • OD: 15 mm
  • Length: 12 mm
  • Internal Chamfer: Both Ends
  • For Drill Bit Size: 10 mm
  • Tolerance: (ID; 0.013 To 0.028 mm) - (OD; 0.012 To 0.023 mm) - (Length; -0.2 To 0.2 mm)
  • Drill Bushing Type: PM
  • Material: Steel
  • Hardness: Rockwell C61
  • RoHS: RoHS 3 (2015/863/EU) Compliant
  • REACH: REACH (EC 1907/2006) (01/19/2021, 211 SVHC) Compliant
  • DFARS: Specialty Metals COTS-Exempt



  • Also Known As Jig Bushings, These Metric Drill Bushings Fit Inside Fixture Plate Holes To Guide Drill Bits, Counterbores, Reamers, And Other Cutting Tools. They Improve Accuracy So That Your Drilled Holes And Cuts Are Consistent From Part To Part. Known For Their Versatility, Drill Bushings Are Also Used As Spacers, Shims, And Machinery Bushings. These Bushings Are Made Of Hardened, Ground Steel That Holds Its Shape And Resists Wear, So They Last For Many Cycles Without Needing To Be Replaced.



  • All Bushings Have A Chamfer On The Outside That Centers The Bushing As You Place It Into The Hole. Press Into Place With A Manual Or Hydraulic Press. They Also Have Internal Chamfers, So It's Easier To Insert Bits, Pins, And Punches Into The Bushing. Some Bushings Have Internal Chamfers On Both Ends, So No Matter Which End Of The Bushing Is Inserted Into Your Jig, Your Bits, Pins, And Other Tooling Enter Easily. Having An Internal Chamfer On The Bottom Of Your Bushing May Cause Shavings To Get Caught And Bind As You Remove The Bit, However.
