153304 Festo Push-In Fitting QSM-M5-4

$3.41 USD
FACTORY SUPPLY BRAND NEW
SKU FIT-0081-E
UPC: 153304
Only 21 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

153304 QSM-M5-4 QSMM54

Festo

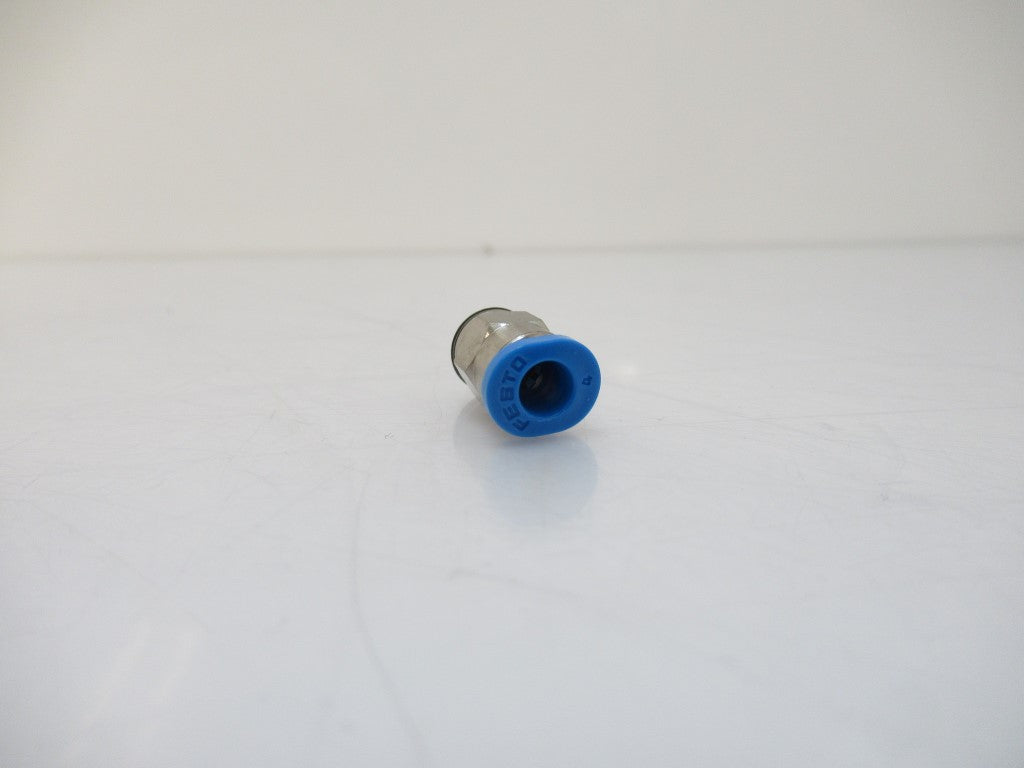

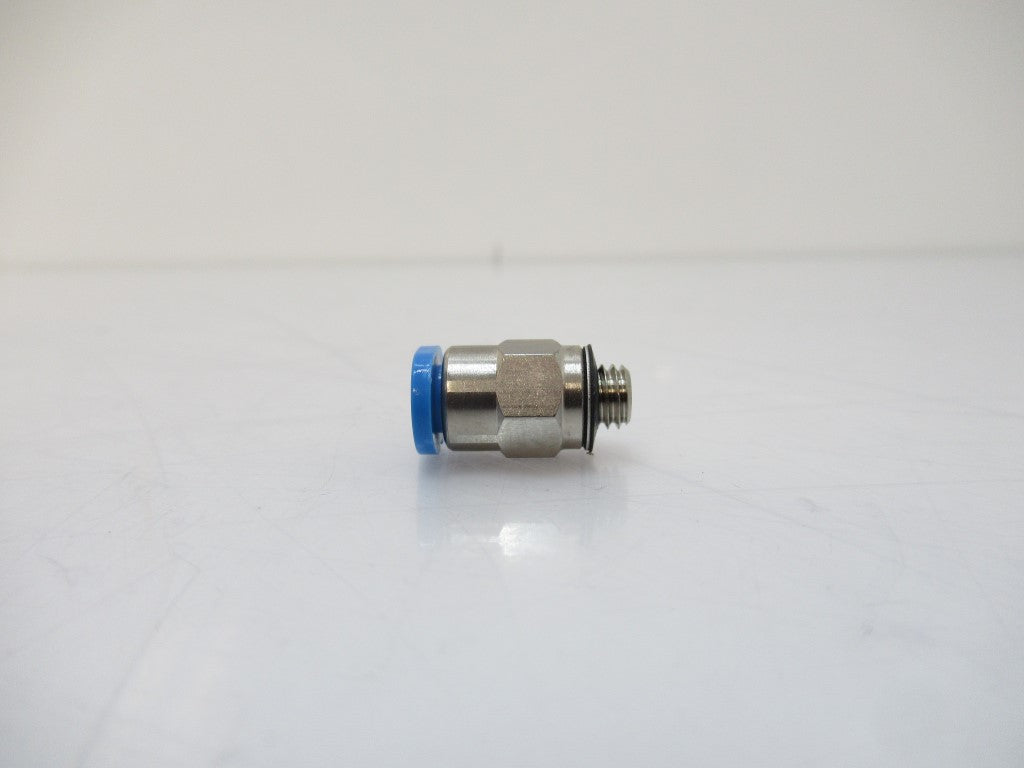

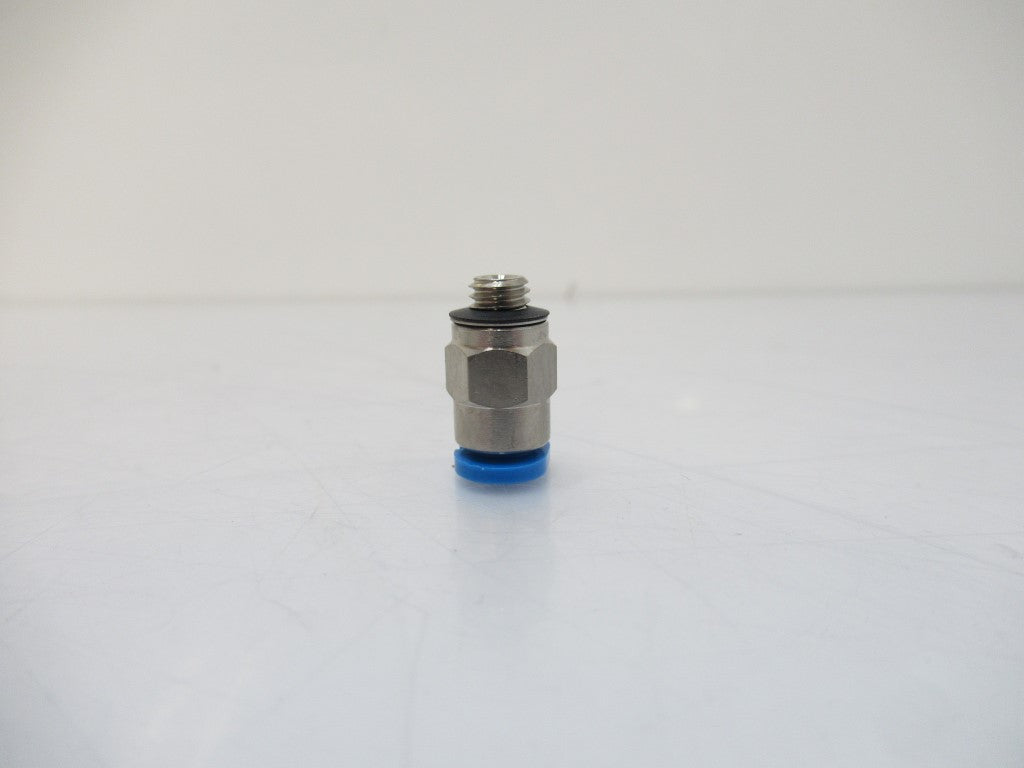

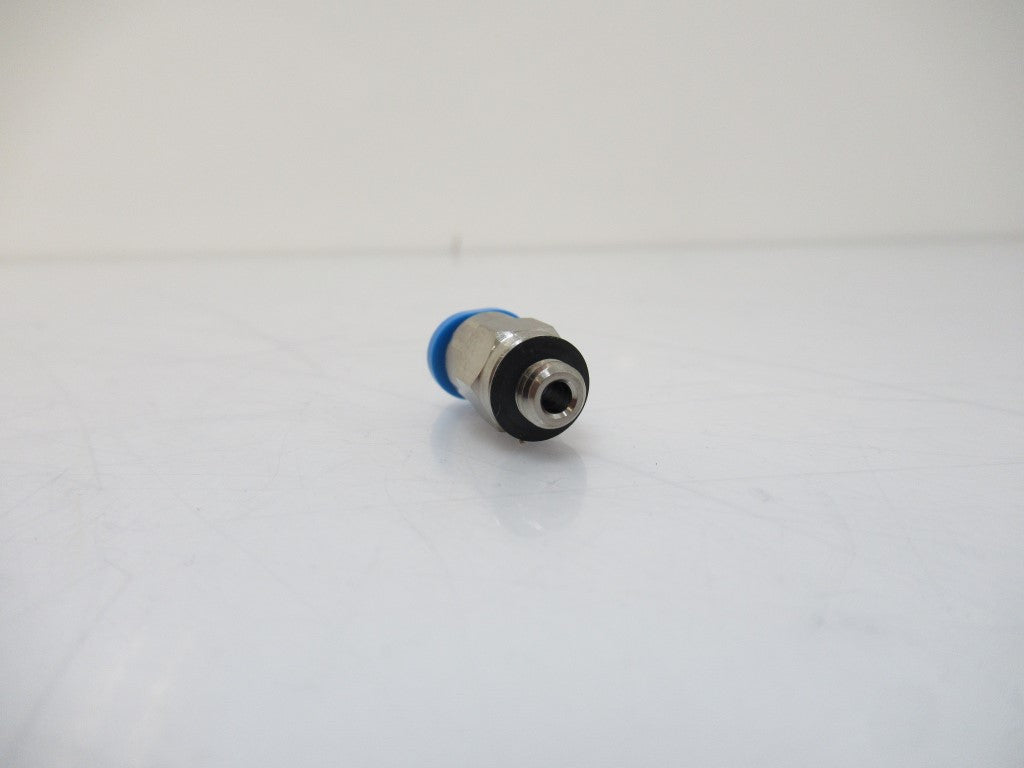

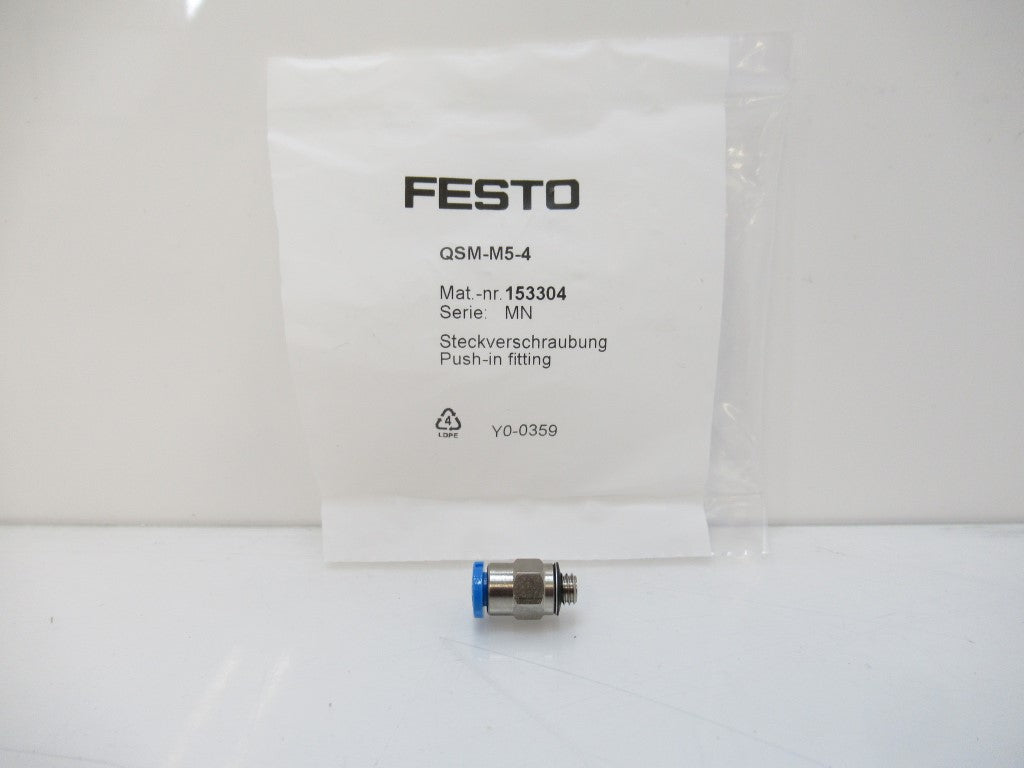

Push-In Fitting, Male Thread With External Hexagon

(Sold By Unit, New)

Description:

Size: Mini

  • Nominal Size: 2.2 mm
  • Type Of Seal On Screw-in Stud: Sealing Ring
  • Assembly Position: Any
  • Container Size: 10
  • Design Structure: Push/Pull Principle
  • Operating Pressure Complete Temperature Range: -0.95 ... 6 Bar
  • Temperature Dependent Operating Pressure: -0.95 ... 14 Bar
  • Maritime Classification: See Certificate
  • Operating Medium: Compressed Air In Accordance With Iso8573-1:2010 [7:-:-]
  • Note On Operating And Pilot Medium: Lubricated Operation Possible
  • Corrosion Resistance Classification CRC: 1 - Low Corrosion Stress
  • Ambient Temperature: -10 ... 80 °c
  • Nominal Tightening Torque: 1.33 mm
  • Tolerance For Nominal Tightening Torque: ± 20 %
  • Product Weight: 3.2 G
  • Pneumatic Connection, Port 1: Male Thread M5
  • Pneumatic Connection, Port 2: For Tubing Outside Diameter 4 mm
  • Colour Of Release Ring: Blue
  • Materials Note: Conforms To RoHs
  • Material Housing: Brass, Nickel Plated
  • Material Release Ring: POM
  • Material Of Tubing Seal: NBR
  • Material Of Tube Retaining Claw: High Alloy Steel, Non-Corrosive
